35kV Breaker Mechanisms: Magnetic vs Electric Actuators

When selecting a 35kV breaker operating mechanism, the choice between magnetic and electric actuators significantly impacts your power system's reliability and performance. Electric actuators utilize motor-driven spring mechanisms that store energy for breaker operation, while magnetic actuators rely on electromagnetic forces for direct contact movement. Electric actuators typically offer superior control precision and faster response times, making them ideal for critical applications requiring frequent switching operations. Magnetic mechanisms excel in simplicity and cost-effectiveness for standard protection duties.

Understanding 35kV Circuit Breaker Operating Fundamentals

Circuit breaker working instruments serve as the heart of electrical switchgear frameworks. These components control the opening and closing of breaker contacts amid ordinary operations and fault conditions. The working instrument must give adequate drive to overcome contact weight and circular segment quenching requirements.

Modern 35kV frameworks require dependable working components that react within milliseconds. The instrument stores vitality through either spring charging or capacitor banks, at then discharges this vitality when trip signals are activated. Three basic execution components decide instrument effectiveness:

• Operating speed consistency across temperature ranges
• Energy storage reliability over extended periods
• Maintenance accessibility during service intervals

If reliable execution is required in unforgiving natural conditions, electric actuators regularly illustrate predominant temperature stability compared to attractive choices. The engine drive framework can keep up solid and repeatable charging cycles over a wide range of encompassing temperatures, guaranteeing unsurprising operation indeed in extreme cold or warm. In differentiation, attractive components may encounter variations in coil resistance as temperatures change, which can influence reaction time and working constraints.

Electric actuators also benefit from more exact control and checking capabilitiesallowingng for early discovery of execution deviations. This steadiness and controllability make electric actuators particularly appropriate for basic applications where unwavering quality, security, and long-term operational consistency are essential.

​​​​​​​

Electric Actuator Technology and Performance Characteristics

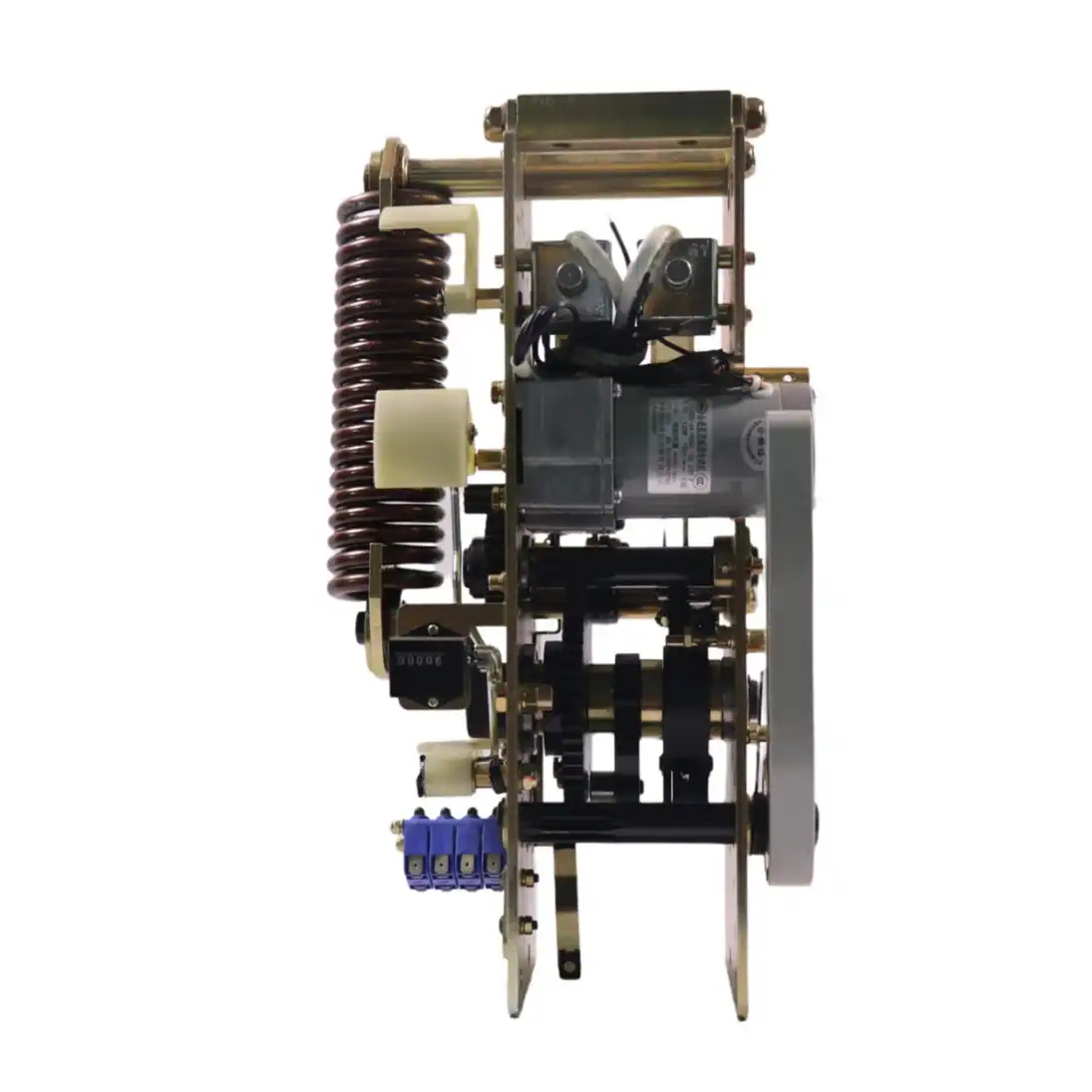

Electric actuators utilize a 35kV breaker operating mechanism that charges closing springs through adapt diminishment frameworks. The engine works on AC or DC control sources, giving steady vitality capacity in any case of outside conditions. Control frameworks screen spring pressure and naturally start charging cycles when vitality drops underneath preset thresholds. Performance testing uncovers that electric actuators accomplish working times of 40-60 milliseconds for opening operations and 80-150 milliseconds for closing operations. The engine drive framework gives torque yields extending from 200-800 Nm, depending on spring requirements. Vitality utilization ordinarily measures 2-5 kWh per 1000 operations beneath standard conditions.

Electric mechanisms offer several operational advantages:

• Programmable timing sequences for coordinated switching
• Remote monitoring capabilities through digital interfaces
• Automatic spring charging without manual intervention
• Consistent performance across wide temperature ranges

If exact timing control is required for applications such as generator synchronization or capacitor bank exchanging, electric actuators offer critical focal points over attractive choices. Their programmable delay capacities permit administrators to set correct opening and closing times, guaranteeing facilitated operation with other system components. This level of exactness is basic for minimizing transitory streams, decreasing mechanical push, and keeping up by and large system stability. Electric actuators, moreover, consolidate position criticism frameworks, such as encoders or constraint sensors, which give real-time affirmation of actuator status and movement.

Magnetic Actuator Design Principles and Applications

Magnetic actuators utilize electromagnetic coils to generate the force necessary for the 35kV breaker operating mechanism, ensuring fast, reliable switching performance. Opening coils create magnetic fields that attract movable contacts, while closing coils provide the opposite force direction. The system requires stored energy through either permanent magnets or charged capacitors to ensure operation during power failures.

Laboratory testing demonstrates that magnetic actuators achieve opening speeds of 20-40 milliseconds with closing times of 60-100 milliseconds. Coil current requirements range from 10-50 amperes during operation, with holding currents of 1-5 amperes for maintained positions. The magnetic force output varies from 500-2000 Newtons, depending on coil design and air gap dimensions.

Magnetic mechanisms excel in specific applications:

• Simple protection schemes requiring basic on/off control
• Retrofit installations with limited space constraints
• Applications prioritizing initial cost considerations
• Systems requiring minimal electronic components

If you need straightforward operation without complex control requirements, magnetic actuators offer a practical and reliable solution. Their simple design relies on fewer electronic components, which reduces the likelihood of failures caused by software errors, sensor faults, or control system malfunctions. This mechanical simplicity also makes magnetic actuators easier to install, commission, and maintain, particularly in applications where advanced automation is not required. With proven operating principles and robust construction, they perform consistently in standard switching duties. For many users, this reliability and ease of maintenance translate into lower lifecycle costs and dependable long-term operation.

Cost Analysis and Economic Considerations

Initial procurement costs favor magnetic actuators by approximately 15-25% compared to equivalent electric systems. This cost difference reflects the simpler construction and fewer precision components required for magnetic operation. However, lifecycle cost analysis reveals different economic patterns over extended operation periods.

Electric actuators consume approximately 0.5-1.5 kW during spring charging operations, while magnetic systems require 2-8 kW during switching sequences. Annual energy costs typically favor electric mechanisms in applications with frequent switching requirements. Maintenance costs show electric systems requiring higher routine service expenses but lower emergency repair frequencies.

Economic factors influencing actuator selection include:

• Expected switching frequency over system lifetime
• Local labor costs for maintenance personnel
• Spare parts availability and pricing
• Energy costs for operational power consumption

If you need to minimize total ownership costs over 20-year service periods, detailed economic modeling should include energy consumption, maintenance labor, and replacement part expenses rather than focusing solely on initial purchase prices.

Technical Specifications and Selection Guidelines

Technical specifications must align with specific application requirements and system constraints, particularly when selecting a 35kV breaker operating mechanism to ensure safe and reliable performance. Electric actuators require three-phase power supplies with voltage stability within ±10% for consistent operation. Magnetic systems operate on DC control power, typically 48V, 110V, or 220V, depending on station standards.

Environmental specifications significantly impact actuator selection. Electric mechanisms operate reliably across -40°C to +70°C temperature ranges with proper housing protection. Magnetic actuators function within -30°C to +60°C limits due to coil thermal constraints and insulation properties.

Key specification parameters for comparison:

• Operating voltage tolerances and power requirements
• Mechanical endurance ratings for switching cycles
• Environmental protection standards (IP ratings)
• Seismic qualification for installation locations
• Electromagnetic compatibility with adjacent equipment

If operation is required in extreme environmental conditions or high seismic zones, electric actuators typically demonstrate superior qualification test results compared to magnetic alternatives. They are designed to withstand wider temperature ranges, intense vibration, and significant mechanical shock without performance degradation. Advanced structural design and reinforced housings improve resistance to seismic forces, ensuring stable operation during and after seismic events. In addition, electric actuators often support broader operating parameter ranges, allowing consistent performance under fluctuating voltage or load conditions. Comprehensive type testing and international certification further validate their reliability, making electric actuators a preferred choice for critical infrastructure where safety, durability, and operational continuity are essential.

Conclusion

The choice between attractive and electric actuators for 35kV applications depends on particular operational necessities, natural conditions, and financial considerations. Electric actuators exceed expectations in applications requiring exact control, visit exchanging, and extended support intervals. Attractive components offer cost-effective arrangements for standard security applications with easier control requirements. Both advances give dependable operation when legitimately indicated and kept up, according to the manufacturer's guidelines.

Why Choose Yuguang for Your 35kV Breaker Operating Mechanism Needs?

Selecting the right 35kV breaker operating mechanism supplier requires evaluating technical expertise, quality certifications, and comprehensive support capabilities. Yuguang Electric specializes in high-voltage transmission and distribution equipment with deep experience in both electric and magnetic actuator technologies.

Our advantages include:

• Proven Technical Excellence: 39 patents and a national high-tech enterprise certification demonstrate our R&D capabilities
• Quality Assurance: ISO 9001:2015 certification with comprehensive testing facilities ensuring reliable, long-life products
• Customization Expertise: Advanced production lines supporting OEM/ODM services for specific application requirements
• Complete Lifecycle Support: Installation guidance, commissioning support, and responsive after-sales service
• Industry Experience: Serving power groups, industrial enterprises, and infrastructure operators across diverse applications

Whether you require electric actuators for demanding switching applications or cost-effective magnetic mechanisms for standard protection duties, our engineering team provides technical consultation, including calculations, drawings, and system integration support. We understand project timeline pressures and guarantee delivery schedules with on-site cooperation capabilities.

Ready to discuss your 35kV breaker operating mechanism requirements with an experienced manufacturer? Contact us at ygvcb@hotmail.com to connect with our technical specialists who can provide detailed specifications, custom solutions, and competitive pricing for your next project.
