Best High-Voltage Contactor Designs for Harsh Environments

Power generation, industrial manufacturing, and infrastructure experts have to make tough choices about the best high-voltage contactors for harsh working conditions. These choices affect the safety and efficiency of the system and the people who work on it. Modern high-voltage contactors made for tough settings have to be able to handle changes in temperature, wetness, toxic gases, and mechanical stress, all while still working properly. These special electromagnetic switches are made with advanced spark suppression technology, better high-voltage insulation, and strong building materials that make sure they can switch loads reliably even in the worst situations.

Why Focus on Harsh Environment High-Voltage Contactors?

Electrical parts that work better than expected are needed for industrial tasks that happen in harsh settings. Equipment used in mining is exposed to dust, pressure, and acids that break down metal. People who work on offshore wind farms are exposed to salt spray and waves as strong as hurricanes. Steel plants produce a lot of heat and electromagnetic radiation that can damage normal switching equipment. Power contactors that work in these situations have to deal with problems that aren't possible with regular systems.

Temperature changes put stress on insulation materials, and wetness speeds up the rusting of internal parts. Exposure to chemicals breaks down sealing substances, and over time, mechanical vibrations make links less secure. When contactors break in tough settings, it costs more than just replacing them. Steel factories can lose hundreds of thousands of dollars every hour when they have to shut down without warning. When wind turbines aren't working, they produce less energy and make less money.

When mining equipment breaks down, it puts workers at risk and slows production, which affects the whole supply chain. These problems can be solved by using advanced high-voltage contactor designs that are made to work in tough settings. These designs use special materials, better closing systems, and strong building methods that keep working properly even in the worst conditions.

Selection Criteria for Harsh Environment Applications

To properly test high-voltage contactors in tough environments, you need to think about a lot of performance factors besides just the electrical specs. Environmental protection ratings tell you how well a contactor can keep out dust and water. For example, an IP67 rating means that the contactor is completely safe from short-term exposure to water. The working limits are set by the temperature range. High-end versions work steadily from -40°C to +85°C.

Thermal resistance is shown by insulation class scores, while long-term performance and energy economy are affected by contact resistance standards. Arc reduction technology is very important for the life of contactors, especially in situations where they are switched on and off a lot. When compared to air-break designs, vacuum arc quenching systems have a much longer operating life because they don't expose the contacts to oxygen, which speeds up the wear and tear process.

Mechanical endurance rates show how many times the switch is expected to work before it needs to be serviced. Better designs can handle millions of actions. Electrical endurance standards describe how well a device works with different types of loads, such as motor starting currents and capacitive loads. Certification compliance makes sure that the product meets both worldwide and local rules. The IEC 60947 set of standards spells out the performance requirements, and UL labels make sure that they are compatible in North America. Environmental approvals show that the product can withstand certain weather circumstances.

​​​​​​​

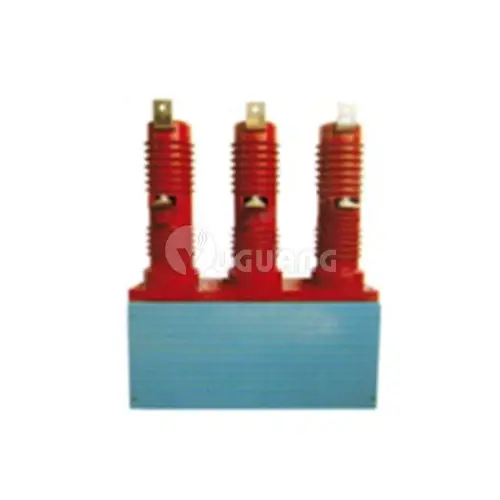

Yuguang YG-VCC Series Vacuum Contactors

The YG-VCC line from Yuguang is the latest in vacuum contactor technology, and it was designed to work in tough industrial settings. These units use unique vacuum interrupter technology that keeps the spark from being exposed to the air. This greatly increases the life of the contacts and lowers the amount of upkeep that needs to be done. The flexible design theory lets things be changed to fit different needs while keeping production methods standard. The small size makes it easier to place in switchgear setups with limited room, and the built-in secondary contacts get rid of the need for complicated external connections.

Advanced closing systems get IP67 ratings, which stop wetness and other contaminants from getting in and lowering performance. Corrosion-resistant alloys can handle the chemical atmospheres that are typical in mining and industrial processes. Stable operation in temperatures ranging from -40°C to +85°C in all climate zones around the world. Ceramic coating treatments offer extra defense against damage from the environment while keeping their great insulating qualities.

The magnetic system design that has been trademarked works the same way at all temperatures, so there is no performance drift like there is with regular electromagnetic buttons. Low-power coil designs make control circuits less loaded and produce less heat. Electrical endurance ratings are 200,000 cycles at full load current, and mechanical endurance ratings are more than 2 million actions under recommended conditions.

Contact resistance stays the same over time, which keeps energy losses and heat production to a minimum. Installation freedom lets you choose between front and back entry options, which makes upkeep easier. Standardized fitting measurements make it easy to make changes to current equipment designs while still being compatible with new designs.

Industrial-Grade Air-Break Contactors with Enhanced Protection

Instead of vacuum technology, new materials and safe layers are used in improved air-break contactor designs to deal with problems that come up in tough environments. If the price of vacuum contactors is too high for your budget, these options are cheaper choices that still protect the environment better. Advanced cooling materials in specialized arc chambers quickly put out switching sparks, which prevent contact damage and increase operating life.

Multiple contact setups allow load current to be spread out, which reduces the amount of heat stress on each contact point. Designs for enclosures have stronger closing systems with multiple rubber barriers that stop water from getting inside. Drainage systems keep environmental protection scores while getting rid of humidity buildup. Silver-tungsten alloys are used to make contact materials that work best with certain types of loads, such as resistive, inductive, or capacitive loads.

Surface processes slow down rust and make the material more conductive in a range of weather situations. Temperature adjustment features in magnetic systems keep pull-in and drop-out voltages constant across all working ranges. The design is shock-resistant and can handle the mechanical vibrations that are common in mobile tools. Overload safety integration gets rid of the need for separate thermal relays, which saves room on the panel and makes connecting easier. Electronic overload systems protect precisely and take into account the temperature of the environment.

Solid-State High-Voltage Switching Solutions

Because they use semiconductor switching technology, solid-state contactors don't have any problems with mechanical wear. This makes them perfect for uses that need to run many times or precisely control the timing. These units work great in places where normal contactors wouldn't work well because of mechanical shaking. Thyristor-based systems can handle high current loads without contact damage, so they keep working well for a long time. Zero-crossing switching lowers electromagnetic radiation and stresses on equipment that is linked to it.

To keep semiconductors from getting damaged, thermal management systems use advanced heat sink designs and temperature tracking. When thermal limits are getting close, overtemperature safety instantly lowers output or starts the stop process. Fault detection features give detailed diagnostic data, such as tracking load current, checking heat state, and analyzing switching performance. Communication links let predictive repair programs work with more powerful control systems.

Sealing devices against wetness and other harmful things in the environment keep them safe while still letting heat escape. Conformal paint processes on circuit boards give them extra defense against environments that are toxic. Response times measured in milliseconds make it possible to control things very precisely, which isn't possible with mechanical contactors. In places where noise is a problem, silent operation takes care of the problem.

Global Market Characteristics and Regulatory Landscape

Different international markets have different tastes when it comes to high-voltage contactor technologies. This is because working conditions and rules change from place to place. European markets put a lot of value on saving energy and protecting the environment, which increases the need for vacuum contactors with low-power coil designs and materials that can be recycled. In North America, applications focus on safety and reliability standards, especially in dangerous site applications that need ATEX or CSA approvals. Explosion-proof shelters and improved problem detection tools are in high demand in the oil and gas business.

Asian markets put a high value on performance standards while keeping costs low. This makes flexible designs possible that can be customized locally. As the manufacturing sector grows, so does the need for high-durability contactors that can switch on and off many times. Emerging markets need options that are both effective and affordable, and they often choose better air-break designs over high-end vacuum technologies. Being able to make things locally cuts down on shipping times and costs while keeping quality standards high.

Harmonization of regulations through IEC standards makes it easier for products to be sold all over the world, but differences in testing requirements and approval methods between regions make it harder to get into new markets. Environmental laws are favoring systems that use less energy and get rid of dangerous materials more and more.

Purchasing Recommendations and Key Considerations

To choose the best high-voltage contactors for difficult locations, you need to think about a lot of things, like how the climate will affect the equipment, how much it will cost in the long run, and what the working needs are. When upkeep, replacing, and downtime are taken into account, the initial purchase price is only a small part of the total costs of ownership. Vacuum contactors work better and last longer in situations where they need to be switched on and off often or are in harsh environments.

The higher starting cost is justified by lower upkeep costs and longer operating life. Better air-break designs offer affordable options for medium-duty uses, with regular repair times that are fine. When evaluating a vendor, the most important things to look at are their expert assistance, supply of extra parts, and area service networks. When technology breaks down and threatens production plans or safety systems, being able to respond quickly to emergencies is very important. Standardization across sites cuts down on the need for training and supplies, and it also lets you save money by buying in bulk.

But, depending on the needs of the application, important processes may need unique designs. Instead of just using lab specs, testing and validation processes should check how well something works in real-world situations. Before large-scale operations, success can be checked with pilot sites. Guarantees and service contracts should match the needs of the business and the level of risk that the business is willing to take. Longer guarantees might be worth the extra cost for important uses where mistakes cost a lot of money.

Conclusion

The high-voltage contactor industry continues evolving toward smarter, more efficient designs that integrate seamlessly with modern automation systems. Digital monitoring capabilities and predictive maintenance features are becoming standard requirements as facilities seek to minimize unplanned downtime and optimize operational efficiency. Environmental sustainability drives demand for energy-efficient designs and recyclable materials, while increasing automation complexity requires contactors with enhanced communication capabilities and diagnostic features. These trends favor manufacturers like Yuguan,g wo combine proven reliability with innovative engineering approaches that anticipate future industry requirements.

Frequently Asked Questions

What environmental protection rating is required for outdoor installations?

Outdoor high-voltage contactor installations typically require IP65 or higher protection ratings to prevent moisture and dust infiltration. Coastal environments exposed to salt spray may require IP67 ratings and specialized corrosion-resistant materials. Temperature cycling and UV exposure also demand enhanced enclosure materials and sealing systems designed for long-term outdoor exposure.

How do vacuum contactors compare to air-break designs for frequent switching applications?

Vacuum contactors significantly outperform air-break designs in frequent switching applications due to superior arc extinction capabilities. While air-break contactors may achieve 100,000-500,000 switching cycles, vacuum contactors routinely exceed 1 million operations. The enclosed vacuum environment prevents oxidation and contamination that accelerate contact degradation in air-break designs.

What factors determine contactor coil voltage selection for international applications?

Coil voltage selection depends on available control power, local electrical standards, and safety requirements. Common voltages include 24VDC, 120VAC, and 240VAC for North American applications, while international markets often use 110VDC or 220VAC systems. DC coil designs offer superior holding characteristics and immunity to voltage fluctuations compared to AC coils.

Partner with Yuguang for Superior High-Voltage Contactor Solutions

Yuguang Electric delivers proven expertise in designing and manufacturing high-voltage contactors specifically engineered for the world's most challenging industrial environments. Our comprehensive product portfolio spans 6kV to 40.5kV applications with customization capabilities that address unique operational requirements across power generation, heavy industry, and infrastructure sectors.

With 39 patents and ISO 9001:2015 certification, Yuguang combines innovative engineering with rigorous quality control to deliver contactors that exceed industry standards for reliability and longevity. Our vacuum contactor technology incorporates aerospace-grade manufacturing processes and materials that ensure consistent performance under extreme conditions.

The integrated approach extends beyond product supply to include comprehensive technical support, installation guidance, and maintenance services that maximize equipment performance throughout operational life. Our engineering team provides customized solutions for specialized applications, including wind power systems, metallurgical processes, and mining operations.

Ready to enhance your electrical system reliability with proven high-voltage contactor solutions? Our technical specialists are prepared to discuss your specific requirements and recommend optimal configurations for your operating environment. Contact us at ygvcb@hotmail.com to explore how Yuguang can support your next project with industry-leading contactor technology.
