Best Supplier of High Voltage Vacuum Contactor for Global Buyers - Yuguang

It is Yuguang that comes up as a reliable partner when global buying managers are looking for switching options for medium and high voltage electrical systems. We blend 39 patented ideas with full-lifecycle support as a specialist producer of High-voltage vacuum contactors from 6kV to 40.5kV. Our vacuum interrupter technology solves some of the world's biggest problems, like equipment that doesn't work with others, heavy maintenance, late deliveries, and problems with adapting to harsh environments. Through our combined R&D-production-installation-aftercare model, Yuguang gives power utilities, heavy industries, and infrastructure owners around the world stable operation, cost efficiency, compliance security, and peace of mind from start to finish.

Understanding High Voltage Vacuum Contactors: Key Features and Operating Principles

High-voltage vacuum contactors are the workhorses of industrial electrical systems. They make it possible for power distribution networks, motor control circuits and capacitor banks to switch loads on and off very often. Unlike circuit breakers that are mostly used to protect against faults, these devices are great at switching loads when everything is working as it should.

Core Operating Mechanism

The vacuum interrupter is the heart of every High-voltage vacuum contactor. It is a sealed chamber that keeps the pressure below 1.33 × 10⁻³ Pa. When contacts come apart during switching, any electrical arc can form for a short time in this vacuum. Without air molecules, there is no arc sustenance, which leads to rapid extinction in milliseconds. This idea gets rid of the risk of explosions in dangerous places and greatly increases the touch life compared to options that use air breaks or oil immersion.

Comparative Advantages Over Traditional Technologies

Concerns about greenhouse gases mean that older SF6 breakers are being closely looked at by environmentalists. On the other hand, carbon buildup and regular maintenance are problems for air contactors. Yuguang's vacuum-based solutions can work for 300,000 to 1,000,000 mechanical cycles without needing any repairs. Our gadgets are made with corrosion-resistant alloys and IP67-rated seals, so they will work reliably in dusty mines, corrosive chemical plants, and high-altitude plateaus where drops in air pressure make it hard for regular gear to work.

Critical Specifications for Procurement

Voltage ratings range from 7.2kV to 40.5kV so they can work with a wide range of grid systems. When compared to older systems, our integrated modular design has a 30% smaller footprint, making it easier to fit into switchgear enclosures that are limited in space. Ceramic-coated surfaces don't break down in UV light or let water in, so they last longer than 25 years in normal commercial use. These technical specs take into account the needs of the chief engineer for reliability, the procurement manager for lifecycle costs, and the operations team for as little downtime as possible.

Why Choose Yuguang as Your Global Supplier for High Voltage Vacuum Contactors?

Choosing the right supplier has an effect on how long a project takes, how much it costs, and how well it runs in the long run. Yuguang stands out by putting money into quality systems, flexible transportation, and service models that focus on the customer.

Authoritative Certifications and Quality Assurance

The ISO 9001:2015, ISO 14001, and ISO 45001 certifications show that we follow the rules for managing businesses around the world. Being a national high-tech enterprise confirms that we are always coming up with new R&D ideas. Each High-voltage vacuum contactor goes through several rounds of tests, including one to check the vacuum integrity (power frequency withstand voltage at 42kV for one minute), one to check the contact resistance (loop resistance measurement proving contact resistance below 200 microhms), and one to test the lightning impulse withstand at 75kV peaks. These strict rules make sure that products that come into your facility work reliably from the start.

Customization Capabilities for Specialized Applications

Standard goods meet most people's needs, but unique projects need answers that are made just for them. Yuguang's engineering team creates changes that are tailored to different situations, such as wind power sites that need better vibration resistance, mining operations that need explosion-proof housings, and rail transit systems that need multiple units to work together in sync. Our 39 patents show that we know a lot about how to adapt core technologies to harsh environments, like deserts that are over 50°C hot and plateaus that are over 4,000 meters high, where normal insulation doesn't work.

Transparent Pricing and Flexible Order Volumes

Buyers from around the world like that our prices are clear and there are no secret fees. We can handle quantities from one piece up to thousands of units, whether you need a single prototype or a lot of them for a nationwide grid upgrade. Our Baoji production base does all of the processing of raw materials, modular assembly, surface treatment, and testing under one roof, so there are no markups for middlemen. This lets us offer competitive prices.

Rapid Global Delivery and Local Support

Customised solutions are delivered in 30 to 60 days, which fits in with the tight schedules of EPC contractors. Standard products ship within 7 to 15 days. International orders come in wooden boxes that are shock- and moisture-proof and meet ISPM 15 standards. Yuguang does more than just ship goods. Through our cross-border service network, we also help with installation, technical commissioning, and the supply of spare parts. This meets the needs of the operations team for quick fault response anywhere in the world.

Comparing High Voltage Vacuum Contactors: Yuguang vs Major Brands

Procurement professionals can make better choices about performance, cost, and the possibility of a long-term relationship when they know how different suppliers work.

Technical Performance Benchmarks

Brands that have been around for a long time, like Schneider, ABB, and Siemens, are known to be reliable. Their goods usually last between 200,000 and 500,000 rounds, and they need to be serviced every 3 to 5 years. The newest generation of Yuguang High-voltage vacuum contactors can handle 1,000,000 cycles. This is possible with aerospace-grade precision machining of the arc-extinguishing chambers and solid-sealed poles. Our close bounce time stays below 2 milliseconds, which stops the contact welding that happens with bad designs.

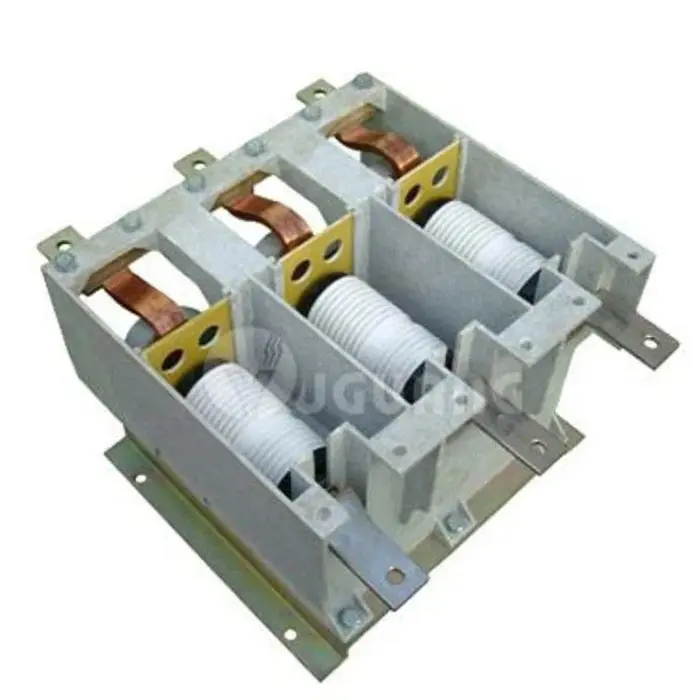

An iron and steel factory in Southeast Asia switched from imported 12kV contactors to Yuguang's JCZ line for their electric arc furnace power source. Over three years, they had no unplanned failures, whereas the old equipment needed repairs every six months. The plant manager said that our better mechanical synchronicity and contact resistance stability were two main reasons why production interruptions were kept to a minimum.

Service Responsiveness and Partnership Approach

Even though foreign companies have well-known brands, their complex ways of distributing their products can make technical help take longer than it should. Direct factory engagement is how Yuguang works. Project managers talk to our engineering team directly, without going through anyone else. When a North American data center had trouble connecting our High-voltage vacuum contactors to older control systems, our technicians sent them modified interface modules within 72 hours, which kept the project from being held up for a month.

Value Proposition for Budget-Conscious Buyers

Premium names charge more because they have a history and a global service network. Yuguang offers similar technical specs at 20–30% less cost, so the money saved can be used for extra safety features or extra stock. This lower cost is especially appealing to infrastructure developers who have to stick to a budget for all of their substations.

Maintenance Tips and Common Issues for High Voltage Vacuum Contactors

To get the most out of your equipment's life, you need to take strategic steps that are in line with how it works. We suggest these useful methods that have been improved by working together with maintenance teams around the world.

Routine Inspection Protocols

Visual checks every three months should make sure there is no damage to the outside, that the cage is properly sealed, and that the electrical connections are safe. Every year, check the insulation resistance between the phases and to ground. Values below 1 megohm mean that water is getting in and need to be fixed right away. Our integrated modular design cuts inspection time by 40% by letting technicians get to key parts without taking the whole thing apart.

Addressing Common Operational Faults

After 500,000 operations, surface oxidation usually causes the contact resistance to rise. Yuguang High-voltage vacuum contactors clean themselves by using the right amount of contact pressure, which means they don't need to be serviced as often. If the vacuum integrity fails, which can be seen through withstand voltage testing, our spare vacuum bottles are sent all over the world with instructions on how to install them. This way, they can be replaced in the field within four hours, saving you money on costly downtime.

Durability Factors in Harsh Environments

Salt spray corrosion can happen on coastal sites. Our ceramic coating and powder coating process, followed by constant-temperature curing, protects better than regular paint finishes. Particulate pollution is a problem in mining, but IP67 covering keeps dirt out of important systems. These advances in material science are the result of our process for choosing raw materials, which includes testing corrosion-resistant alloys against accelerated ageing protocols. This makes sure that the products will last for ten years without needing to be replaced often.

Procurement Guide: How to Buy High Voltage Vacuum Contactors from Yuguang?

Buying tools from other countries requires meeting technical specs, coordinating logistics, and making sure the contract is followed. Based on what hundreds of global projects told us, we've made this process easier.

Defining Your Technical Requirements

To start, write down the system voltage (7.2kV, 12kV, 24kV, or 40.5kV), rated current (usually 200A to 1250A), duty cycle (Class AC-3 for motor loads or AC-4 for heavy starting), and environmental factors (temperature range, altitude, and amount of pollution). Show High-voltage vacuum contactor integration points on single-line diagrams. Within 24 hours, our applications engineers look over entries and either suggest the best models or suggest special changes to meet unusual needs.

Streamlined Ordering and Customization Process

You can get quotes by emailing ygvcb@hotmail.com or visiting our website at ygvcb.com. For standard questions, you'll get a price quote within one business day. For unique solutions that need technical analysis, it will take three to five days. We help your approval processes by giving you detailed datasheets, dimensional drawings, and compliance certificates (IEC, UL, and GB standards). Letters of credit, wire transfers, and established credit deals for repeat customers can all be used as payment options.

Comprehensive After-Sales Commitment

Every Yuguang High-voltage vacuum contactor comes with a guarantee that covers problems with the way it was made, and you can also get longer-term service agreements. Installation help includes everything from video support over the internet to finishing on-site for large, complicated jobs with many units. Maintenance agreements include regular checks, faster supply of extra parts, and free plans for changes if the way the system works changes after installation. With this full-chain service model, we go from being a supplier of goods to a long-term operational partner.

Wholesale and OEM Partnership Advantages

Regional distributors can get bulk deals that go up as commitment levels go up, as well as marketing items with both brands on them and technical training programs. OEM partners get design-for-manufacture advice, which makes sure that our High-voltage vacuum contactors can be easily added to bigger switchgear systems. These structures for working together help global equipment and supply companies gain a competitive edge in their home markets.

Conclusion

If you choose Yuguang as your High-voltage vacuum contactor provider, you will be working with a company that is committed to technical innovation, quality control, and customer service. Our 6kV–40.5kV product range, which is backed by 39 patents and aerospace-grade production methods, solves problems with compatibility, maintenance, and shipping that are common in global sourcing. Our flexible solutions, quick reaction times, and lifecycle support give you real value whether you are in charge of updating the power grid, upgrading an industrial plant, or building new infrastructure. We welcome you to experience the Yuguang difference, where the best of Chinese production and service meet.

FAQ

What distinguishes vacuum contactors from vacuum circuit breakers?

In normal operation, High-voltage vacuum contactors are great at switching loads often (hundreds of thousands of cycles), but they need external fuses to protect against short circuits. Vacuum circuit breakers handle fault currents that happen very rarely but are very large. Both are made by Yuguang, which can help you choose the right device for each job.

How do I verify vacuum integrity in installed contactors?

Power frequency withstand voltage tests should be done across open contacts at 42kV for one minute in 12kV systems. Failures mean that the vacuum isn't working properly and is below the allowed 1.33 × 10⁻³ Pa level. Our expert team comes up with testing plans and, if necessary, can explain results from afar.

Can Yuguang contactors operate at high altitudes?

Of course. Thin air doesn't affect the internal vacuum gaps, but we increase the exterior creepage distances (20mm/kV) and make the insulation stronger for setups longer than 2,000 meters. Our High-voltage vacuum contactor models with plateaus work well for projects that are more than 4,000 meters high.

What maintenance intervals do you recommend?

Standard applications need to be inspected once a year and contacts need to be replaced after 500,000 operations. In heavy-duty settings, checks may need to be done every six months. Our flexible design makes it easier to get to parts, which cuts the cost of upkeep labour by 40% compared to other designs.

Partner with Yuguang for Reliable High-Voltage Vacuum Contactor Solutions

If global sourcing teams are looking for a reliable High-voltage vacuum contactor provider, Yuguang is the best choice. Our wide range of products, patented technologies, and full-lifecycle support make us the best. Our normal delivery times are 7–15 days, and our special delivery times are 30–60 days. We can meet short deadlines for projects with our IP67-sealed, modular contactors, which are used in steel mills, power grids, mining operations, and transit systems around the world. Email us at ygvcb@hotmail.com to talk about your particular needs for voltage, current, and surroundings. Our tech team will suggest the best solutions, which will be backed by official certifications, reasonable prices, and helpful customer service after the sale. This is where you can start working with a trusted High-voltage vacuum contactor manufacturer that cares about your business's success.

References

1. IEEE Standard C37.012-2014, "IEEE Application Guide for Capacitance Current Switching for AC High-Voltage Circuit Breakers Rated on a Symmetrical Current Basis," Institute of Electrical and Electronics Engineers, 2014.

2. International Electrotechnical Commission, "IEC 62271-106: High-voltage switchgear and controlgear - Part 106: Alternating current contactors, contactor-based controllers and motor-starters," Edition 2.0, 2011.

3. Slade, Paul G., "The Vacuum Interrupter: Theory, Design, and Application," CRC Press, 2nd Edition, 2017.

4. National Energy Administration of China, "Technical Specification for 12kV Vacuum Contactors in Power Distribution Systems," GB/T 32585-2016, Standards Press of China, 2016.

5. Greenwood, Allan, "Vacuum Switchgear: Advances in Design, Manufacture, and Applications," Institution of Engineering and Technology, 1994.

6. Wang, Jianhua, et al., "Reliability Analysis of High-Voltage Vacuum Contactors in Harsh Environmental Conditions," Journal of Electrical Engineering & Technology, Vol. 15, No. 3, pp. 1247-1256, 2020.
