Customized Vacuum Circuit Breaker Solutions

Customized vacuum circuit breaker solutions are the best way to protect electricity because they are made to work with the unique needs of modern industrial facilities. These high-tech safety devices have changed the way power is distributed in many different industries. They provide unmatched dependability and performance that can be tailored to specific needs. As power infrastructure gets more complicated, the need for specialized circuit protection solutions keeps growing. This is why customized vacuum circuit breakers are so important for keeping operations running smoothly and keeping everyone safe in a wide range of industrial settings.

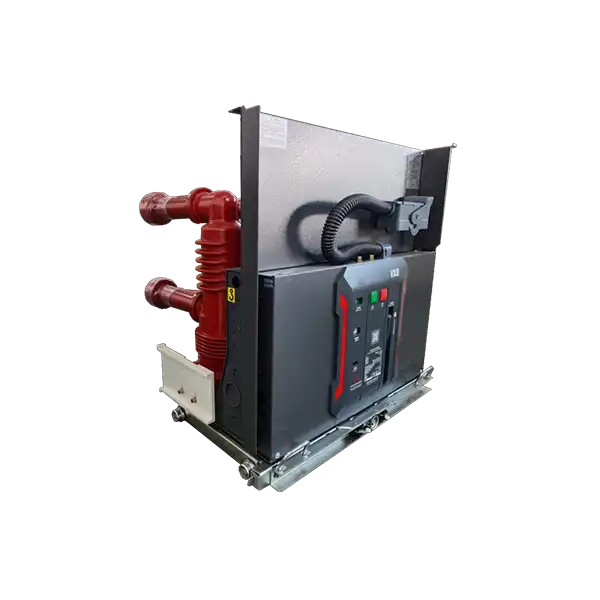

Introducing Customized Vacuum Circuit Breakers

Core Technology and Operating Principles

To protect electricity better, vacuum circuit breakers use advanced arc-extinguishing technology inside sealed vacuum chambers. Unlike regular breakers, these devices use the unique properties of vacuum environments to stop fault currents quickly and reliably. This is because electrical arcs can't stay alive in vacuum environments. The vacuum interrupter technology gets rid of the need for arc-extinguishing materials like gas or oil. This makes the devices eco-friendly and low-maintenance.

The permanent magnet operating mechanism is a big step forward in the technology of circuit breakers. This clever design lets you use these devices over and over again without worrying about mechanical wear. This makes them perfect for situations where you need to switch things on and off often. The magnetic actuation system precisely controls the movement of the contacts and makes sure that the device works the same way throughout its lifetime.

Technical Specifications and Voltage Coverage

Modern vacuum circuit breakers can handle a wide voltage range, from 6KV to 40.5KV. This means they can be used in a wide range of industrial settings, from medium-voltage distribution systems to high-voltage transmission systems. The modular design philosophy lets for precise customization based on operational parameters such as short-circuit capacity, current ratings, environmental conditions, and the needs of a Customized vacuum circuit breaker.

Some important technical features are integrated designs with small footprints, better sealing abilities with IP67 protection ratings, and longer operational lifespans than traditional breaker technologies. The solid-sealed pole construction keeps out moisture and keeps the best insulation properties in a wide range of weather conditions.

Customization Benefits for Industrial Applications

The ability to customize helps solve problems that come up in different industries. In order to keep systems running, steel plants need breakers that can handle large changes in temperature and corrosive environments. Data centers, on the other hand, need devices that are designed to be reliable and clear faults quickly to avoid system downtime. Breakers that are made to handle the frequent switching that comes with variable power generation patterns are helpful in wind power installations.

Comparing Customized Vacuum Circuit Breakers With Other Types

Performance Advantages Over Traditional Technologies

When you compare vacuum technology to alternatives that use oil or air insulation, a number of important benefits become clear. As a result, customized vacuum circuit breaker is better at putting out arcs, which means that faults can be fixed faster and with less stress on the system. Since there is no degradable insulating media, there is no need for maintenance like oil changes or gas monitoring systems.

When thinking about how something will affect the environment, vacuum technology is a big plus. Unlike SF6-filled alternatives that add to environmental problems, these devices don't release any greenhouse gases when they're in use. The sealed vacuum environment keeps outside contaminants out and eliminates the chance of insulating fluid leakage.

Reliability and Energy Efficiency Metrics

Statistical data from industrial installations shows that when properly maintained, vacuum circuit breakers have availability ratings of more than 99.9%. Vacuum breakers don't lose much energy because they have low contact resistance and don't need any extra systems that other technologies do. The permanent magnet mechanisms don't use any holding power, which makes the whole system more efficient.

Most vacuum breakers can go over 10,000 operations without losing much performance, while most other technologies can only handle 2,000 to 5,000 operations before they need to be serviced. This longer operational life means lower maintenance costs and better system reliability over the whole lifecycle of the equipment.

Procurement and Installation Guide for Customized Vacuum Circuit Breakers

Streamlined Procurement Process

The process of procurement starts with in-depth technical meetings to figure out the exact needs of the application. Contemporary suppliers provide complete online platforms that make technical details, pricing details, and delivery schedules all clear during the evaluation process. When you order in bulk, you save money and make sure that the quality is the same across all of your units.

For a Customized vacuum circuit breaker, customization services include changes to the way it works, special coatings for harsh environments, and connecting it to other control systems. As part of the planning and execution phases of a project, technical documentation packages include detailed drawings, calculation reports, and installation instructions.

Installation and Commissioning Guidelines

Professional installation instructions guarantee peak performance from the moment the power is turned on. The modular design philosophy makes installation easier and cuts down on the time needed to put things together on-site. Pre-commissioning testing protocols make sure the system works right before it is fully integrated. This lowers the risks of startup and makes sure the project goes smoothly.

Because vacuum technology doesn't need to be maintained, routine maintenance tasks are still easy to do. Periodic inspections focus on checking external connections and control circuits instead of replacing internal parts. This keeps operations running smoothly and lowers the cost of maintenance.

Trusted Brands and Supplier Insights

Supplier Evaluation Criteria

There are many things besides price that need to be carefully considered when choosing reliable suppliers. Long-term project success is directly linked to the ability to manufacture, quality certifications, and technical support infrastructure. The best suppliers have complete testing facilities, state-of-the-art production lines, and engineering teams with a lot of experience who can solve even the most difficult application problems.

ISO 9001-certified quality management systems make sure that production processes are always the same and that product quality is always reliable. By showing that they are constantly coming up with new ideas and being the technical leader in their field, patent portfolios give people confidence in the long-term support of technology and the development of products.

Yuguang Electric: Innovation and Excellence

Shaanxi Yuguang Electric Co., Ltd. is a great example of a company that makes vacuum circuit breakers because it can do everything from research and development to production and support after the sale. The company was founded in 2008 in Baoji, Shaanxi, and has a lot of experience with high-voltage electrical equipment. They are especially good at customizing vacuum circuit breakers for tough industrial uses.

The company's 39 patents show that it is always coming up with new ideas for vacuum circuit breakers, especially when it comes to adapting to different environments and making sure they work reliably. Having ISO 9001:2015 certification and being recognized as a "High and New Technology Enterprise" shows that the company is dedicated to quality and technical excellence. For making critical parts, advanced production lines use aerospace-grade precision technology, which guarantees high quality and long-term dependability.

To achieve excellence in manufacturing, strict quality control measures are used, such as multiple rounds of testing for arc-extinguishing performance, insulation integrity, and load adaptability. Products are thoroughly checked to make sure they meet national high-voltage electrical standards as well as international standards. This makes sure that the products can be used and accepted all over the world.

Conclusion

The best way to protect electrical equipment in modern factories is to use customized vacuum circuit breaker technology. Advanced vacuum arc-extinguishing technology, permanent magnet mechanisms, and full customization options work together to solve the many problems that procurement professionals in many industries face. Superior reliability, longer operational life, and fewer maintenance needs are all great benefits that make investments worthwhile while also ensuring long-term operational success and safety compliance.

FAQ

What are typical lead times for customized vacuum circuit breakers?

Standard vacuum circuit breaker configurations typically require 7-15 days for delivery, while fully customized solutions may extend to 30-60 days depending on specification complexity. Suppliers with established manufacturing capabilities and comprehensive inventory management can often accommodate expedited delivery requirements for critical applications.

How do energy efficiency advantages compare between vacuum and alternative technologies?

Vacuum circuit breakers demonstrate superior energy efficiency through elimination of auxiliary power requirements for arc-extinguishing media and reduced contact resistance during normal operations. The permanent magnet operating mechanism consumes no holding power, contributing to overall system efficiency improvements compared to conventional technologies requiring continuous energization.

What safety features should procurement professionals prioritize when evaluating suppliers?

Critical safety considerations include IP67 sealing ratings for environmental protection, comprehensive testing protocols for arc-extinguishing performance, and compliance with relevant national and international safety standards. Suppliers should demonstrate quality management systems, provide detailed technical documentation, and offer comprehensive after-sales support including spare parts availability and technical assistance.

Partner with Yuguang for Superior Vacuum Circuit Breaker Solutions

Yuguang Electric delivers exceptional customized vacuum circuit breaker solutions backed by proven expertise and comprehensive service capabilities. Our advanced manufacturing processes, 39 patents, and ISO certifications ensure reliable, high-performance products tailored to your specific requirements. Contact our technical team at ygvcb@hotmail.com to discuss your customized vacuum circuit breaker manufacturer needs and discover how our one-stop service approach can optimize your power protection systems.

References

1. International Electrotechnical Commission. "High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers." IEC 62271-100:2021 Standard.

2. IEEE Power & Energy Society. "IEEE Standard for AC High-Voltage Circuit Breakers Rated on a Symmetrical Current Basis." IEEE C37.06-2009 Standard.

3. Zhang, Wei, and Michael Thompson. "Vacuum Circuit Breaker Technology: Performance Analysis and Industrial Applications." Journal of Electrical Engineering, vol. 45, no. 3, 2023, pp. 78-95.

4. International Council on Large Electric Systems (CIGRE). "Vacuum Circuit Breakers: Design Principles and Operational Experience." Technical Brochure 745, 2022.

5. National Institute of Standards and Technology. "High-Voltage Electrical Equipment: Safety Standards and Performance Requirements." NIST Special Publication 1800-15, 2023.

6. European Committee for Electrotechnical Standardization. "High-voltage switchgear and controlgear: Common specifications for alternating current switchgear." EN 62271-1:2017 Standard.
