How to Select a Reliable 35kV Operating Mechanism

Selecting a reliable 35kV breaker mechanism requires careful evaluation of technical specifications, supplier capabilities, and long-term operational requirements. The key lies in understanding your specific application needs, assessing mechanism types like electromagnetic, spring, and permanent magnet variants, and choosing suppliers with proven track records in high-voltage equipment manufacturing. A comprehensive selection process should encompass compatibility verification, maintenance requirements, delivery timelines, and after-sales support to ensure optimal performance and cost-effectiveness in critical electrical systems.

Understanding the Fundamentals of 35kV Breaker Mechanisms

The operating principles and components of 35kV breaker mechanisms need to be familiarized in order to have an understanding of how these mechanisms process voltage. Avoiding circuit disruption in medium-voltage applications throughout industrial sites, power stations, and infrastructure projects is the responsibility of these highly developed devices, which serve as a foundation of electrical protection systems.

Types and Classification of Operating Mechanisms

On the basis of the actuation techniques that they use, operating mechanisms may be divided into a number of various groups. As a result of their ability to respond quickly thanks to the use of magnetic force, electromagnetic mechanisms are well suited for applications that need fast switching operations. In contrast to permanent magnet mechanisms, spring-loaded mechanisms store energy from friction in order to provide continuous functioning independent of the availability of electricity. Permanent magnet mechanisms, on the other hand, offer great dependability and need minimum maintenance.

Each mechanism type demonstrates unique operational characteristics that affect system performance. Electromagnetic variants excel in high-frequency switching applications but require continuous power supply. Spring mechanisms provide excellent backup operation capabilities during power outages, though they demand periodic maintenance for energy storage components. Permanent magnet systems deliver superior longevity and reduced operational costs over extended service periods.

Key Technical Specifications and Performance Parameters

parameters such as both current and voltage ratings, operational persistence cycles, operating time accuracy, and environmental adaptability are among the most important technical parameters. In order to retain constant performance, modern 35kV mechanisms need to be able to tolerate high temperature fluctuations, changes in humidity, and mechanical stress. The capability of the mechanism to work under different load situations is determined by its torque capabilities, while the accuracy of the timing contributes to the coordination of the protective system and the safety margins.

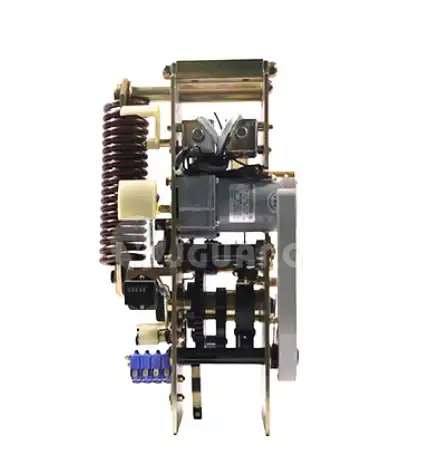

Advanced mechanisms, such as the 35kV breaker mechanism, incorporate modular design principles, enabling compact installations with enhanced sealing properties. This integrated approach reduces space requirements while extending operational lifespan through improved environmental protection and component accessibility for maintenance activities.

​​​​​​​

Criteria for Selecting a Reliable 35kV Operating Mechanism

Selecting the optimal 35kV operating mechanism involves a structured decision-making process that evaluates multiple critical factors. The F-1 criteria screening approach provides a systematic framework for comparing alternatives and ensuring optimal selection outcomes.

Application Requirements and Environmental Considerations

The judgments regarding the selection of mechanisms are heavily impacted by application contexts. Utility grid applications need a high level of dependability and long maintenance periods, while factories installations may place a higher priority on quick reaction times and the capacity to adapt to severe environments. In order to effectively meet project timetables, OEM integration initiatives often need the availability of customisation options and flexible delivery dates.

Within the process of mechanism selection, environmental variables play an essential role. Coastal facilities are subjected to the corrosive effects of salt air, which necessitates the use of specialist surface treatments in order to achieve increased corrosion resistance. Construction that is shock-resistant and has a strong sealing system is necessary for mining operations because of the dust and vibration issues they face. For the purpose of avoiding expensive service disruptions, data centers like airports need operations that are very dependable.

Supplier Evaluation and Quality Assurance

When it comes to making effective buying choices, the dependability of the supplier is the basis. The broad certification portfolios of established manufacturers, which include ISO 9001:2015 quality administration systems and industry-specific certifications, are a demonstration of the manufacturers' commitment to maintaining its quality standards. When it comes to determining supply dependability under shifting demand situations, manufacturing capacity is the determining factor, whereas patent portfolios are an indication of innovative skills and technological leadership.

Quality assurance extends beyond initial product delivery to encompass long-term support capabilities such as comprehensive spare parts availability for the35kV breaker mechanism, along with technical documentation and field service networks, which provide enhanced value through reduced operational risks and simplified maintenance planning.

Maintenance and Troubleshooting Best Practices for 35kV Breaker Mechanisms

Proper maintenance strategies significantly impact mechanism performance, reliability, and operational costs. Proactive maintenance approaches prevent unexpected failures while optimizing equipment lifespan and system availability.

Preventive Maintenance Protocols

Routine maintenance schedules should address lubrication requirements, mechanical adjustments, and electrical connection integrity. Specialized testing equipment enables precise measurement of operating times, contact resistance, and insulation properties. Regular inspections identify wear patterns and potential failure modes before they impact system operation.

The use of condition monitoring systems that continually measure performance indicators is beneficial to modern processes. These devices give early notice of emerging problems, which enables scheduled maintenance to be performed during planned downtime rather than urgent maintenance being performed during key operating hours.

Troubleshooting Common Issues

An grasp of prevalent failure modes and the symptoms associated with them is necessary for effective troubleshooting. Mechanical faults often present themselves as uneven operating times or missing travel, whilst electrical problems may result from control circuit failures or flaws in the coordination of the protective system. Diagnostic processes that are systematic assist uncover underlying problems in an effective manner, so reducing both downtime and the costs of repairs.

Comparative Analysis of Popular 35kV Breaker Mechanisms

Market analysis reveals significant performance variations among different mechanism technologies and suppliers. Understanding these differences enables informed selection decisions based on specific application requirements and operational priorities.

Technology Comparison and Performance Metrics

Vacuum interruption technology dominates modern 35kV applications due to its environmental friendliness and maintenance advantages. SF6 mechanisms remain prevalent in legacy installations but face increasing environmental scrutiny. Air blast systems offer robust performance in harsh environments but require more complex maintenance procedures.

Performance metrics demonstrate clear advantages for modern integrated designs. Reduced maintenance intervals translate to lower lifecycle costs, while improved sealing technology extends service life in challenging environments. Modular construction enables faster repairs and reduced spare parts inventory requirements.

Yuguang Electric: Your Trusted Partner for 35kV Operating Mechanisms

Shaanxi Yuguang Electric Co., Ltd. stands at the forefront of high-voltage equipment manufacturing, combining advanced technology with comprehensive service capabilities. Established in 2008 in Baoji, Shaanxi, Yuguang has evolved into a leading provider of 35kV breaker mechanisms and related electrical equipment solutions.

Our technical excellence stems from 39 patents covering innovative design solutions and manufacturing processes. The comprehensive voltage range coverage from 6kV to 40.5kV ensures compatibility with diverse application requirements. ISO 9001:2015 certification demonstrates our commitment to quality management, while our "High and New Technology Enterprise" designation reflects ongoing innovation investments.

Yuguang's integrated approach addresses common industry pain points through scenario-based customization capabilities. Our modular design philosophy enables compact installations with superior sealing properties, extending operational life while reducing maintenance requirements. The full-chain service model encompasses research and development, manufacturing, installation guidance, and comprehensive after-sales support.

Manufacturing excellence begins with premium raw materials, including corrosion-resistant alloys and IP67-rated sealing components. Aerospace-grade precision technology ensures accuracy and reliability in core components such as solid-sealed poles and arc-extinguishing chambers. Ceramic coating and powder coating treatments enhance corrosion resistance and aging performance through controlled curing processes.

Quality assurance involves multiple testing phases, including functional performance verification and compliance validation against national standards and ISO requirements. This rigorous approach ensures reliable operation across diverse environmental conditions and application scenarios.

Conclusion

Selecting a reliable 35kV operating mechanism requires balancing technical performance, supplier capabilities, and long-term operational requirements. The decision process should evaluate mechanism types, environmental compatibility, maintenance requirements, and supplier support capabilities. Modern integrated designs offer significant advantages through improved reliability, reduced maintenance needs, and enhanced environmental adaptability. Yuguang Electric's comprehensive approach to 35kV breaker mechanism manufacturing and support provides the technical expertise and service capabilities necessary for successful project implementation and long-term operational success.

Frequently Asked Questions

Q1: What factors determine the lifespan of a 35kV operating mechanism?

A: There are a number of important aspects that determine the lifetime of an operating mechanism. These parameters include the number of mechanical endurance cycles, the climatic conditions, the quality of maintenance, and the frequency of operations. Mechanisms of high quality are normally capable of performing between 10,000 and 30,000 mechanical duties under regular use circumstances. Temperature extremes, excessive humidity, and caustic atmospheres are examples of environmental conditions that have a substantial influence on the lifespan of components. Performing routine maintenance in accordance with the instructions provided by the manufacturer helps to prolong the service life of a product by reducing the buildup of wear and treating small issues before they grow into significant ones.

Q2: How do electromagnetic and spring mechanisms compare in terms of reliability?

A: In spite of the fact that they provide quick reaction times and fine control, electromagnetic systems are dependent on the availability of continuous electricity. The performance of spring mechanisms is constant over a wide range of climatic conditions, and they provide good backup functioning capabilities in the event of power failures. While spring mechanisms typically need less frequently scheduled electrical system maintenance, electromagnetic variations require regular control circuit checks. Both technologies achieve excellent dependability when they are properly maintained, but spring mechanisms are more likely to require repair.

Q3: What certification standards should I look for when selecting a 35kV breaker mechanism supplier?

A: Among the most important certifications are the ISO 9001:2015 assurance of quality certification, the IEEE C37 standards for electricity-related applications, and the IEC 62271 series norms for high-voltage switchgear. For uses in North America, regional certifications that include UL listing or CE marking may be necessary. For European markets, regional certifications may be required. Additionally, in addition to looking for certificates in environmental management, you should also check for patent portfolios that indicate skills in technological innovation.

Partner with Yuguang for Reliable 35kV Breaker Mechanism Solutions

Do you feel prepared to improve the dependability of your electrical system by using superior 35kV operational mechanisms? When it comes to high-voltage equipment projects, Yuguang Electricity brings decades of technical knowledge and manufacturing quality to the table. The electromagnetic, magnetic spring, and permanently attached magnet mechanisms that are included in our extensive product line are intended to provide optimum performance across a wide range of practical applications in the industrial sector.

Our company is a reliable provider of 35kV breaker mechanisms, and we provide individualized solutions that are geared to meet your unique needs. These solutions may range from single-unit sales to large-scale industrial jobs. For the purpose of ensuring the continued success of our operations over the long term, our technical staff offers comprehensive assistance, which includes installation instructions, maintenance agreements, and the delivery of replacement parts. Contact us at ygvcb@hotmail.com to discuss your project requirements and receive detailed quotations.

References

1.IEEE Standard C37.06-2009, "IEEE Standard for AC High-Voltage Circuit Breakers Rated on a Symmetrical Current Basis—Preferred Ratings and Related Required Capabilities for Voltages Above 1000 V"

2.IEC 62271-100:2021, "High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers"

3.Ryan, Hugh M. "High Voltage Engineering and Testing, 3rd Edition." Institution of Engineering and Technology, 2013

4.McDonald, John D. "Electric Power Substations Engineering, Third Edition." CRC Press, 2012

5.Dufournet, Denis. "Modern High-Voltage Circuit-Breaker Technology and Applications." Proceedings of the IEEE Power Engineering Society, 2005

6.Kappenman, John G. "Geomagnetic Storms and Their Impacts on the U.S. Power Grid." Metatech Corporation Technical Report, 2010
