Top High Voltage Electrical Accessories for Circuit Breaker Systems

In order to maintain working continuity and safety in challenging industrial uses, High-voltage electrical accessories are essential to dependable circuit breaker systems. These important parts—such as operating mechanisms, bushings, insulators, and arc-extinguishing chambers—have a direct effect on the long-term prices, maintenance efficiency, and stability of systems in everything from power plants to building projects. When dealing with today's complicated energy landscape, procurement managers and chief engineers need to make sure that the accessories they choose are proven to work with each other, can be delivered quickly, and can be used in harsh conditions.

Understanding High Voltage Electrical Accessories for Circuit Breaker Systems

Core Functions and Component Types

Circuit breaker accessories are specialised parts that are meant to make power distribution networks safer and more reliable. Breakers are precisely controlled by operating devices that come in electromagnetic, spring, or permanent magnet types. Bushings let conductors safely pass through grounded enclosures, and insulators stop current flow that isn't wanted. Arc-extinguishing chambers quickly put out electrical arcs when the power goes out, and tracking monitors allow for real-time diagnosis. These add-ons work together to create an integrated safety ecosystem that lowers the chance of failure and increases the life of equipment in voltage ranges from 6KV to 40.5KV.

Technical Specifications and Industry Standards

Following the rules set by IEC 60871, IEEE C37, and ANSI makes sure that accessories meet strict requirements for dielectric strength, thermal stability, and mechanical endurance. Some important specs are an insulation resistance of more than 10,000 MΩ, a partial discharge level below 10pC, and the ability to go from -40°C to +55°C in temperature. When choosing materials, corrosion-resistant metals and IP67-rated sealing systems are used so that they can work in harsh conditions like those found in mining, chemical processing, and power sites along the coast. Yuguang's goods go through multiple rounds of testing that check for arc extinction performance, load flexibility, and sealing integrity. They are approved under ISO 9001:2015 and have 39 patents that were created through advanced research and development.

Top 7 High Voltage Electrical Accessories for Circuit Breaker Systems

Operating Mechanisms

These parts turn control signals into movement of the mechanical breaker. Electromagnetic types respond quickly to fix problems, spring systems let high-power uses use saved energy, and permanent magnet types offer consistent torque with little upkeep. Yuguang's modular operating mechanisms are made with aerospace-grade precision machining, which makes sure that they work correctly for more than 100,000 cycles. The small design makes the cabinet 30% smaller than older systems, but it still works with a wide range of breaker models. As critical high-voltage electrical accessories, these operating mechanisms must meet the highest standards of reliability and durability, ensuring that the overall switchgear system performs safely and consistently over its entire service life.

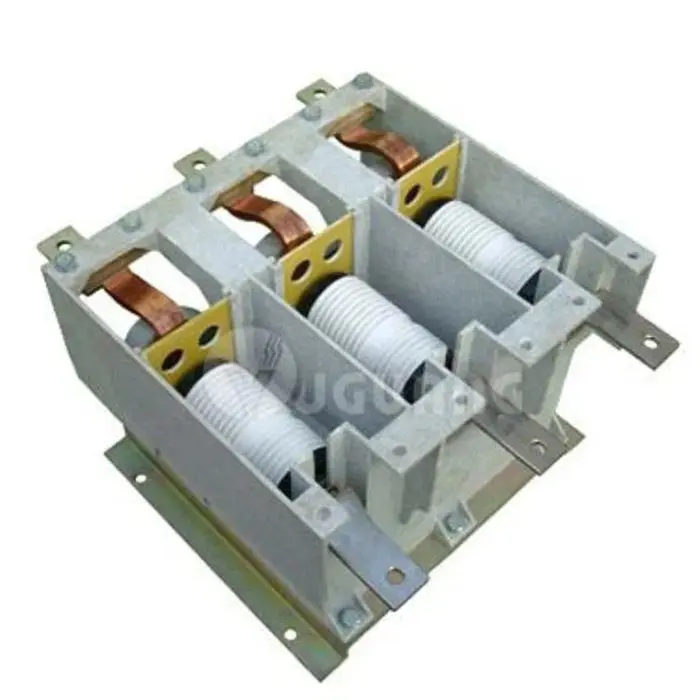

Vacuum Interrupters and Arc-Extinguishing Chambers

Vacuum interrupters use high-vacuum conditions to stop arcs right away when contacts separate. Yuguang uses solid-sealed pole technology and special tools to get leak rates below 10⁺⁷ Pa·L/s. This means that the system will work for more than 20 years without any maintenance. Ceramic coating speeds up the dielectric recovery process, which makes the device work reliably in situations with a lot of switching, which is common in wind power and solar setups. This design solves the connectivity problems that come up when you combine parts from different brands.

Epoxy Resin Insulators and Bushings

These insulators are made from cycloaliphatic epoxy resins and can handle tracking and surface discharge when the environment is dirty. For 6KV to 40.5KV ratings, bushings have longer creepage distances that match IEC 60815 pollution intensity classes. Yuguang's surface treatment method—ceramic coating, powder coating, and constant temperature curing—increases resistance to ageing by 40% and lowers the risk of cracking that happens when temperatures change quickly. The integrated design cuts down on assembly interfaces, which lowers the risk of water getting in.

Intelligent Monitoring Sensors

Putting temperature, vibration, and partial discharge monitors inside something changes care from being reactive to being proactive. Condition-based actions are possible with real-time data transmission, which cuts unscheduled downtime by up to 65%. When Yuguang puts together modules, these sensors are built in. This way, communication with SCADA systems is seamless, and there is no need for complicated retrofitting. Sensor housings meet IP67 standards, which is very important for outdoor substations and mines where dust and water can damage regular tracking gear.

Disconnect Switch Accessories

Safe separation during repair is made easier by knife blades, contact assemblies, and load break attachments. Silver-plated copper alloy contacts keep their low resistance over long periods of service, and designs that are automatically linked keep them from getting powered up by accident. Yuguang's disconnect accessories have fail-safe mechanisms that have been tested and proven to work 10,000 times. This addresses supplier quality concerns that cause huge project delays.

Surge Arresters and Capacitor Banks

Metal oxide varistors (MOVs) stop sudden changes in voltage and protect the inside of the breaker from lightning strikes and switching spikes. Yuguang's arresters use BOPP film capacitor technology with tan µ values below 0.0002, which makes sure that harmonic filtering doesn't make too much heat. The biodegradable impregnant is safe for the earth and gives better partial discharge elimination voltage. This mix is necessary for renewable energy projects that need to meet both performance and sustainability standards.

Control and Auxiliary Power Modules

Breaker actions are coordinated by DC power sources, auxiliary switches, and motor drives. Yuguang's modules have multiple power paths and can handle input voltages ranging from 110V to 250V DC/AC. This means that there are no single-point failures. Field replacements for modular circuit boards can be done in 15 minutes, which directly addresses the problem of slow after-sales service that many buying departments have. EMC protection keeps interference from happening in substations with a lot of transmission equipment.

Strong circuit breaker systems are built on these seven types of High-voltage electrical accessories. Vertically integrated production at Yuguang, from inspecting raw materials to checking the finished product, ensures consistent dimensions and high functional reliability that are hard to achieve with assemblies made from more than one source.

How to Choose High-Voltage Electrical Accessories for Your Circuit Breaker System?

Evaluating Operational Environment and Load Requirements

When choosing an accessory, system-specific factors come into play. 316L stainless steel housings and silicone rubber seals are needed for coastal sites because they need to be more resistant to salt fog. Explosion-proof containers with IP68 ingress protection are needed for mining uses. The type of contact material is decided by the load profile analysis. For regular switching, silver-tungsten carbide is used, while vacuum interrupters are used for magnetic loads. Yuguang's engineering team offers free technical advice and looks at working data to suggest tools that work best with the site. This cuts down on the need for trial-and-error, which drives up project costs.

Prioritizing Certifications and Supplier Capabilities

Check the supplier's production depth as well as the product approvals. Facilities that have their own machine centers can better control quality than those that only do assembly. At Yuguang's Baoji production base, there is CNC precise equipment that can make vital parts with ±0.01mm of error. The ISO 14001 environmental management certification shows that you are committed to using sustainable methods that are valued in international bids. The company's 39 patents show that it is constantly coming up with new ideas instead of using old designs. This means that you can be sure that the company's items use the newest material science and closing technologies.

Balancing Initial Costs with Lifecycle Value

When buying something, choices that only look at the price don't take into account upkeep costs or the costs of downtime. Accessories that last 20 years don't need to be replaced as often as accessories that last 10 years. Yuguang's integrated modular design makes it easier to keep track of extra parts because a single mechanism variant can be changed to fit different types of breakers. Standardisation cuts the cost of storing by 40% and speeds up the repair process. There are financing choices for sales from one unit up to many units, so they can be used for both small repairs and big projects. This gets rid of the MOQ barriers that keep suppliers from being diverse.

Installation, Maintenance, and Troubleshooting of High-Voltage Electrical Accessories

Installation Best Practices and Safety Protocols

Connection problems can be avoided by applying the right amount of torque. Yuguang gives measured torque specs for each accessory interface. To keep coaxial contact motion within 0.05mm, vacuum interrupter alignment needs precise tools that come with the units. For indoor installations, controlling humidity during commissioning is necessary. For outdoor installations, UV-resistant cable glands are needed. Installation instructions from the company come with 3D assembly models and technical guides in multiple languages. This cuts down on mistakes made on-site by 70%. Professional installation support goes beyond just providing documents. Yuguang sends certified technicians to work on complicated projects to make sure they are commissioned correctly the first time, which is very important for sticking to the EPC schedule.

Routine Maintenance and Predictive Diagnostics

Visual checks every three months find seal damage before it lets water in. Every year, infrared thermography finds hotspots that show impact wear. Yuguang's maintenance agreements include both these services and the supply of spare parts. This turns repair costs that are hard to predict into budgeted line items. Predictive computers look at trends in sensor data to figure out when a part will no longer work in 6 to 12 months. Because of this planning, planned outages can happen during times of low demand instead of emergency shutdowns during times of high production, which protects industry clients' income streams. For high-voltage electrical accessories, including cable joints, terminations, and connectors, this predictive maintenance approach is particularly critical, as their failure can lead to catastrophic system outages and substantial financial losses.

Rapid Troubleshooting Techniques

Auxiliary switch imbalance is often the cause of sudden trip failures. Yuguang's self-diagnosing control modules use LED status codes to find problems, so you don't have to guess. If the working noise goes up, it means that the oil is running out. Accessories with lifetime-sealed bearings get rid of this variable. Monitoring sensors notice partial discharge activity, which sets off automatic alarms that demand review before a catastrophic failure. A technical support filled by engineers with real-world experience is available 24 hours a day, seven days a week. 80% of problems can be fixed remotely, without having to visit the site. This responsiveness directly handles the gaps in after-sales help that are often brought up in buying post-mortems.

Procurement Strategies for High-Voltage Electrical Accessories

Identifying Reliable Supply Channels

Engaging directly with the manufacturer gets rid of markups by distributors, which are usually 25–35%, and makes sure that the product is real. Yuguang's online site, ygvcb.com, lets you see real-time supplies and technical datasheets, which makes it easier to confirm specifications. Export-focused suppliers who know about INCOTERMS and international logistics can cut down on delays in customs clearance that can throw off project schedules. The company's moisture-proof, shock-resistant wooden packaging meets ISPM 15 standards. This keeps shipments from being rejected at the border, which can happen when they are not properly prepared.

Negotiating Lead Times and Order Flexibility

Standard items are sent out within 7 to 15 days, while customised solutions that need to be changed to fit a specific situation take 30 to 60 days to deliver. Yuguang keeps a buffer stock of items that sell quickly so that they can be ordered quickly in case a project needs to move faster than planned. Volume price tiers start to apply when you buy as few as 10 units, making special rates available to mid-sized contractors who couldn't get them before. Quotes sent by email to ygvcb@hotmail.com are clear and include detailed breakdowns of goods, insurance, and taxes. This gets rid of any secret costs that cut into budgets.

Ensuring Warranty Protection and Compliance

Capital investments are protected by guarantees that cover both materials and work for 18 to 24 months after the building is put into service. Yuguang's free modification plans let accessories be changed to fit changing system needs, so you don't have to buy new ones when working factors change. During acceptance inspections, compliance paperwork packages with test results, material certifications, and standards conformance declarations meet the needs of auditors. This thoroughness cuts down on delays in finishing a project by weeks, which speeds up the time it takes for EPC companies with payment structures based on milestones to get paid.

Conclusion

To choose the best High-voltage electrical accessories, you need to look at technical specs, the manufacturing skills of the seller, and full lifecycle support that goes beyond the original price. Yuguang Electric has 39 patented innovations, voltage coverage from 6KV to 40.5KV, and full services, including custom research and development, installation help, and quick after-sales support. These all work together to solve the main problems that procurement teams face, such as compatibility issues, complicated maintenance, and uncertain delivery. The company's modular design philosophy, aerospace-grade manufacturing precision, and ability to customise based on different scenarios ensure stable operations, low costs, and regulatory compliance, all of which are necessary for mission-critical infrastructure projects in the transportation, heavy industry, and power generation sectors.

FAQ

What certifications should high-voltage accessories possess?

The accessories need to be in line with IEC 60871, IEEE C37, and local rules such as GB/T 11024. Getting ISO 9001:2015 approval shows that your quality control system is strict. Check that the type test reports you get from reputable labs confirm the dielectric withstand voltage, temperature rise limits, and mechanical endurance. Yuguang has official national certificates and standardisation for intellectual property management, which makes sure that every part meets or beats international safety standards.

How often do circuit breaker accessories require maintenance?

Maintenance times depend on the environment and the duty of the machine. In service settings, vacuum interrupters need to be checked every 5 to 7 years. In industrial settings with a lot of switches, they need to be checked once a year. Yuguang's sealed-for-life designs increase the time between visits to 10 years, which cuts down on care costs by 50%. Intelligent sensors allow condition-based scheduling instead of random time-based interventions, which makes the best use of resources.

Can accessories be customized for unique project requirements?

Of course. Yuguang's research and development (R&D) team creates custom solutions for harsh environments, installations with limited space, and safety standards that are specific to the industry. Mechanical interfaces, control voltage ranges, and transmission methods can all be customised. The company can make small batches (minimum order quantity of one unit) for retrofit projects and prototype testing, which is a level of flexibility that manufacturers that focus on volume don't usually offer.

Partner with Yuguang for Premium High-Voltage Electrical Accessories

Yuguang Electric sells certified, high-performance circuit breaker accessories that are designed to get rid of problems with compatibility, maintenance, and supply chain uncertainty. Our combined manufacturing method, which includes 39 patents, ISO-certified quality systems, and full-chain service from research and development to after-sales, makes sure that your power infrastructure will work well for decades to come. We offer fast quotes, flexible order volumes, and expert technical advice as a reliable High-voltage electrical accessories supplier to power utilities, industrial complexes, and infrastructure developers all over the world. Get in touch with ygvcb@hotmail.com right away to talk about your project needs and get custom solutions backed by credible certifications and quick support that protect your business's continuity.

References

1. IEEE Standards Association. (2020). IEEE Guide for Application of Protective Relaying and Circuit Breaker Systems. IEEE Power & Energy Society, Technical Report C37.91.

2. International Electrotechnical Commission. (2019). IEC 60871-1: Shunt Capacitors for A.C. Power Systems Having a Rated Voltage Above 1000 V - Part 1: General. Geneva: IEC Central Office.

3. Slade, P.G. (2017). The Vacuum Interrupter: Theory, Design, and Application. Second Edition. Boca Raton: CRC Press.

4. National Electrical Manufacturers Association. (2021). ANSI C37.06: AC High-Voltage Circuit Breakers Rated on a Symmetrical Current Basis - Preferred Ratings and Related Required Capabilities. Rosslyn: NEMA Publications.

5. Mosch, W. & Hauschild, W. (2018). High-Voltage Insulation Technology: Textbook for Electrical Engineers. Stuttgart: Springer Vieweg.

6. Electric Power Research Institute. (2022). Reliability Assessment of Substation Equipment: Maintenance Strategies for High-Voltage Switchgear Accessories. EPRI Technical Update Report 3002024586.
