High-Voltage Vacuum Contactor vs Solid-State Switchgear

It is very important to know the main differences between high-voltage vacuum contactors and solid-state switches for power distribution systems before making a choice. High-voltage vacuum contactors work best for switching tasks that happen a lot and need mechanical contact separation in vacuum tanks. Solid-state switchgear, on the other hand, uses semiconductor technology to switch very quickly without any physical contact wear. In today's electrical infrastructure, each system meets different operational needs.

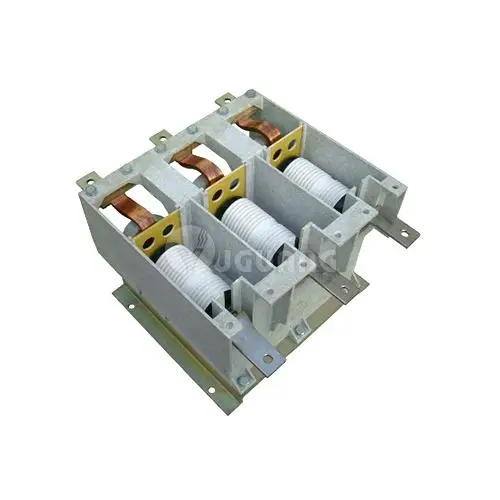

Understanding High-Voltage Vacuum Contactor Technology

High-voltage vacuum contactors are an example of an advanced switching technology that has been used in factories for many years. These devices work by separating mechanical contacts in vacuum chambers that are shut off. This makes them very good at stopping arcs. The vacuum interrupter technology gets rid of air and moisture, which stops oxidation and ensures that the electrical isolation is stable. When contacts break apart, any arc that forms goes out right away because the vacuum world has a higher dielectric strength.

Key operational principles include:

• Mechanical contact engagement through electromagnetic actuation
• Arc extinction via vacuum chamber technology
• Reliable electrical isolation through physical air gaps
• Proven performance in high-current switching applications

Test results from industrial settings show that High-voltage vacuum contactor can keep their contact resistance below 50 microhms for the whole time they are working. This consistency makes sure that there aren't many power losses and that the system works reliably even when the load changes. If you need reliable switching for motor control or a lot of operational cycles, vacuum contactor technology has been shown to last and has low-cost upkeep needs.

​​​​​​​

Solid-State Switchgear: Modern Electronic Solutions

Solid-state switchgear is a new type of switching technology that uses semiconductors. Power electronics like thyristors, IGBTs, and others are used in these devices to control electrical circuits without moving mechanical contacts. The technology allows for instantaneous change, and tasks are usually finished in microseconds. This speed advantage comes in handy when exact timing control or quick fault isolation is needed.

Core characteristics include:

• Electronic switching without mechanical wear components
• Precise control over switching timing and current regulation
• Silent operation with minimal acoustic emissions
• Advanced monitoring capabilities through integrated sensors

Switching times for solid-state devices are 10–100 microseconds, while switching times for mechanical contactors are 50–100 milliseconds. This speed gap has a big effect on programs that need to respond quickly. Solid-state technology is better than other technologies if you need exact control, silent operation, or very fast switching responses, even though it costs more at first.

Performance Comparison Analysis

Analyzing performance metrics reveals distinct advantages for each technology across different operational parameters. Understanding these differences guides optimal selection for specific applications.

Switching Speed and Response Time

Solid-state switchgear dominates speed performance with response times measured in microseconds. Vacuum contactors operate in millisecond ranges, which proves adequate for most industrial switching applications.

Measured performance data:

• Solid-state switching: 10-100 microseconds
• Vacuum contactor operation: 50-100 milliseconds
• Contact bounce elimination in solid-state designs
• Mechanical settling time in vacuum contactors

Current Handling Capabilities

Vacuum contactors work great in high-current situations and can easily handle loads of 1000 amps or more. Their mechanical contact design spreads current over large contact areas, which keeps the surfaces from getting too hot and wearing away. For comparable current ratings, solid-state devices need to be carefully managed when it comes to temperature. It is important to get rid of the heat, and for high-power applications, active cooling devices are often needed. You can use High-voltage vacuum contactor technology to get reliable performance and easier heat management if you need to switch a lot of current with little cooling.

Reliability and Maintenance Considerations

Long-term reliability patterns differ significantly between these technologies. Vacuum contactors demonstrate predictable wear patterns through contact erosion, while solid-state devices experience gradual semiconductor degradation.

Vacuum contactor maintenance involves:

• Periodic contact inspection and replacement
• Vacuum chamber integrity verification
• Mechanical component lubrication
• Coil resistance measurements

Solid-state switchgear requires:

• Thermal management system monitoring
• Semiconductor junction temperature control
• Power electronics component replacement
• Software updates and calibration

Based on data from the industry, vacuum contactors can handle between 1 and 2 million operations before they need major repair. Solid-state devices work all the time, but some parts may need to be replaced every 10 to 15 years. If you want maintenance plans that you can count on and parts that can be fixed in the field, vacuum contactor technology has simple maintenance steps and replacement parts that are easy to find.

Cost Analysis and Economic Factors

Initial procurement costs favor vacuum contactor technology, typically costing 30-50% less than equivalent solid-state solutions. However, the total cost of ownership requires broader analysis, including installation, operation, and maintenance expenses.

Vacuum contactor economics include:

• Lower initial equipment costs
• Minimal cooling infrastructure requirements
• Standardized replacement parts availability
• Simplified installation procedures

Solid-state switchgear considerations:

• Higher initial investment requirements
• Potential energy savings through precise control
• Reduced mechanical maintenance costs
• Advanced monitoring capabilities value

A lifecycle cost study over 20 years usually shows convergence, with operational savings making up for solid-state technology's higher initial costs in some situations. High-voltage vacuum contactors are a great way to save money right away, using technology that has been used for a long time. Solid-state solutions are worth the higher initial prices because they are more efficient over time and have more features.

Application-Specific Selection Guidelines

Choosing optimal technology depends on specific operational requirements, environmental conditions, and performance expectations. Different industries favor particular technologies based on proven performance patterns.

Power Generation and Distribution

Vacuum contactors are often used in large power plants to protect generators and provide extra power. The technology meets the needs for power production because it is reliable and can handle large amounts of current. Solid-state switchgear is used in green energy systems that need to react quickly to changes in the power grid and control the quality of the power very precisely.

Industrial Manufacturing

Vacuum contactor technology is used a lot in steel mills, chemical plants, and factories to control motors and distribute power. The design is strong enough to work well in tough industrial settings. Process industries that need precise control can benefit from the accuracy and repeatability of switching processes that come with solid-state technology.

Infrastructure and Transportation

Depending on the task, railway systems use both types of technology. Vacuum contactors are often used in traction power systems, while solid-state methods may be used in signaling and control systems. Solid-state technology is being used more and more in data centers because it works quietly and can precisely control power. If you work in a heavy business that has standard maintenance procedures, vacuum contactor technology will fit right in. When precise tasks need improved control, solid-state solutions work better than other options.

Yuguang's High-Voltage Vacuum Contactor Advantages

Shaanxi Yuguang Electric has established itself as a leading high-voltage vacuum contactor manufacturer through decades of innovation and quality focus. Our comprehensive approach addresses the complete equipment lifecycle from design through after-sales support.

Technical Excellence and Innovation

• 39 Patent Portfolio: Extensive intellectual property covering vacuum chamber design, contact materials, and switching mechanisms ensures cutting-edge performance and reliability
• Voltage Range Coverage: Complete 6KV-40.5KV product line accommodates diverse industrial applications from medium-voltage distribution to transmission-level switching
• Precision Manufacturing: Aerospace-grade processing technology and specialized tooling deliver exceptional component accuracy and vacuum chamber sealing integrity
• Advanced Materials: Corrosion-resistant alloys and IP67-rated sealing components ensure long-term performance in harsh industrial environments
• Integrated Design: Modular construction philosophy enables customization while maintaining a compact footprint and simplified installation procedures

Quality Assurance and Certification

• National Certifications: ISO 9001:2015 quality management, ISO 14001 environmental standards, and ISO 45001 occupational safety compliance ensure comprehensive quality systems
• High-Tech Enterprise Recognition: Government certification validates our research and development capabilities and technological innovation leadership
• Authoritative Testing: Multiple national inspection reports verify product performance meets and exceeds industry standards for safety and reliability
• Compliance Standards: Full adherence to IEC international standards and GB national requirements ensures global market compatibility
• Quality Recognition: Repeated "Quality and Trustworthy Unit" awards demonstrate consistent performance and customer satisfaction

Comprehensive Service Excellence

• Customization Capabilities: Scenario-specific design adaptation addresses unique industry requirements, including wind power, metallurgy, and petrochemical applications
• Rapid Response Times: Standard products ship within 7-15 days, while customized solutions are completed in 30-60 days to meet project schedules
• Technical Support: Complete engineering assistance, including drawings, calculations, and system integration consultation throughout the project lifecycle
• Installation Guidance: Professional on-site support ensures proper equipment commissioning and optimal performance from initial startup
• After-Sales Excellence: Comprehensive maintenance agreements, immediate spare parts availability, and rapid fault response minimize operational disruptions

Manufacturing and Process Control

• Advanced Production Lines: State-of-the-art manufacturing equipment ensures consistent quality and efficient production scheduling for timely delivery
• Rigorous Testing Protocols: Multi-stage verification, including functional performance, insulation testing, and load adaptability confirmation, guarantees reliability
• Surface Treatment Innovation: Ceramic coating and powder coating processes, followed by controlled curing, enhance corrosion resistance and extend operational lifespan
• Flexible Order Quantities: Minimum order quantity from single units accommodates both small-scale requirements and large-volume projects
• International Standards: Export packaging meets global shipping requirements while providing moisture-proof and shock-resistant protection

Global Service Network

• Cross-Border Expertise: International market experience combined with domestic manufacturing excellence delivers comprehensive global support capabilities
• OEM/ODM Services: Complete customization options enable partners to develop unique market solutions while leveraging our technical expertise
• Multi-Industry Experience: Proven performance across power generation, metallurgy, mining, petrochemical, and communication sectors validates versatile application capability
• Partnership Approach: Long-term relationship focus ensures ongoing support, continuous improvement, and collaborative development for mutual success
• Supply Chain Stability: A Robust supplier network and inventory management guarantee consistent product availability and delivery reliability

Future Technology Trends and Considerations

Both vacuum contactors and solid-state technologies continue evolving to meet changing industry demands. Understanding development trajectories helps inform long-term equipment strategies.

Vacuum contactor improvements focus on:

• Enhanced contact materials reduce erosion rates
• Improved vacuum chamber longevity
• Integration with digital monitoring systems
• Miniaturization for space-constrained applications

Solid-state advancement areas include:

• Wide bandgap semiconductors are improving efficiency
• Advanced thermal management solutions
• Artificial intelligence integration for predictive maintenance
• Cost reduction through manufacturing optimization

There may be hybrid solutions that combine mechanical and electronic switching parts. These would have the benefits of both technologies while also making up for their flaws. When making long-term investments in infrastructure, you should think about both present performance needs and technology roadmaps and suppliers' ability to come up with new ideas.

Conclusion

The choice between high-voltage vacuum contactors and solid-state switchgear depends on specific operational requirements, budget considerations, and long-term strategic goals. Vacuum contactors excel in high-current applications requiring proven reliability and cost-effective maintenance. Solid-state solutions provide superior speed and precision for applications demanding advanced control capabilities.

Understanding your specific needs, environmental conditions, and performance expectations guides optimal technology selection. Both technologies offer distinct advantages when properly matched to appropriate applications. Consider factors including switching frequency, current requirements, maintenance capabilities, and total cost of ownership when making decisions.

Yuguang's comprehensive high-voltage vacuum contactor solutions combine proven technology with innovative design and exceptional service support. Our commitment to quality, customization, and customer success ensures optimal outcomes for demanding industrial applications across diverse global markets.

Choose Yuguang for Reliable High-Voltage Vacuum Contactor Solutions

Selecting the right high-voltage vacuum contactor supplier significantly impacts project success and long-term operational reliability. Yuguang combines proven manufacturing expertise with comprehensive service capabilities to deliver exceptional value across diverse industrial applications.

Our 39-patent portfolio and national high-tech enterprise recognition demonstrate continuous innovation and commitment. The complete 6KV-40.5KV voltage range coverage ensures optimal solutions regardless of your specific requirements.

Yuguang's integrated approach extends beyond equipment supply to encompass custom engineering, installation support, and comprehensive after-sales service. This full-lifecycle partnership minimizes project risks while maximizing operational efficiency.

The modular design philosophy enables scenario-specific customization while maintaining cost-effectiveness and delivery speed. Whether you need standard configurations or specialized adaptations, our engineering team develops optimal solutions.

Quality certifications, including ISO 9001:2015 and multiple national inspection reports, validate our commitment to excellence. Repeated recognition as a "Quality and Trustworthy Unit" reflects consistent performance and customer satisfaction.

Our flexible order quantities accommodate projects ranging from single-unit requirements to large-scale installations. Standard product delivery within 7-15 days and customized solutions in 30-60 days support tight project schedules.

Experience the difference that comprehensive expertise and dedicated service make in high-voltage switching applications. Contact us at ygvcb@hotmail.com to discuss your specific requirements and discover why leading power groups, industrial enterprises, and infrastructure operators choose Yuguang as their trusted high-voltage vacuum contactor manufacturer.
