Ⅰ Overview
12kV high-voltage vacuum contactor is one of the main products of Shaanxi Yuguang Electric Co., Ltd.
We not only offer you the contactor but also provide a good solution if you are in trouble operating.
Ⅱ Applications:
12kV high voltage vacuum contactors find application in various industries such as power distribution systems, motor control centres, capacitor banks, and other medium to high voltage electrical installations. They provide reliable switching and control of power for applications where 12kV voltage levels are required.
Ⅲ. Main Technical Parameters:
|
Type |
Rated Voltage(V) |
Rated current (Main circuit) A |
Main contact parameters |
Power frequency withstand voltage V(RMS) |
|||||||
|
Main circuit |
Control circuit |
open distance |
overrun |
Main circuit |
ancillary circuit |
Control circuit |
|||||
|
JCZ5-12/200 |
12000 |
110,220 |
200 |
5 |
1.5±0.5 |
42000 |
2500 |
2000 |
|||
|
JCZ5-12/400 |
12000 |
110,220 |
400 |
5 |
1.5±0.5 |
42000 |
2500 |
2000 |
|||
|
JCZ5-12/630 |
12000 |
110,220 |
630 |
5s |
1.5±0.5 |
42000 |
2500 |
2000 |
|||
|
JCZ5-12/200 |
10le,100 |
8le.25 times |
10le |
30×10 |
35 |
||||||
|
JCZ5-12/400 |
10le,100 times |
8le,25 times |
10le |
30×104 |
35 |
||||||
|
JCZ5-12/630 |
10le,100 times |
8le,25 times |
10le |
30×10? |
35 |
||||||
Note: le represents the rated current of the main circuit

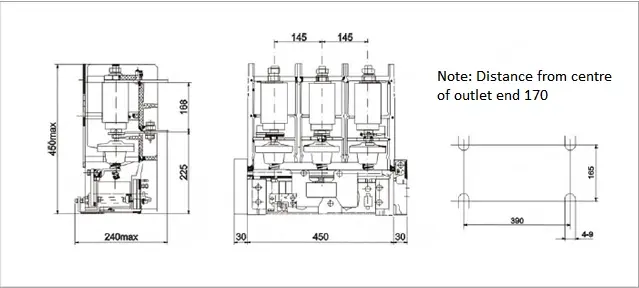

Ⅳ. Shape and Mounting Dimensions:
OEM/ODM Services:
At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.
Certificates:
We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:
3C Certification
ISO 9001 Certification
21 Utility Model Patents and Design Patents
Why Choose Us:
State-of-the-art Manufacturing Equipment
Extensive Testing Facilities
Comprehensive Quality Assurance Processes
ISO 9001 Certified Quality Management System
One-year Warranty on All Products
Large Production Capacity
FAQ:
Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.
Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.
Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.
Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.
Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.
Packaging:
Wooden Box Packaging
Carton Packaging
Foam-filled Packaging
Waterproof and Moisture-proof Packaging
Customized Packaging
International Standard Packaging
Logistics:
Sea Freight
Air Freight
Land Transportation
Multimodal Transport
Express Delivery Services
Contact Us:
Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
