Innovation in Combined Switchgear for Wind Power

New developments in combined switchgear have changed the way wind power electrical infrastructure works, solving important problems in the production of green energy. Combined switchgear combines several electrical safety and switching devices into a single, small unit that is designed to work with wind turbines. These advanced systems fix problems with compatibility and make upkeep easier while lowering the time and trouble that come with traditional electrical parts. Modern switchgear solutions improve the safety, reliability, and cost-effectiveness of wind power systems in a wide range of environmental situations through new design and engineering excellence.

Introducing Combined Switchgear in Wind Power Applications

Electrical parts used in wind power systems need to be able to handle harsh environments and still work properly. Combined switchgear is the main part of a wind turbine's electrical system. It combines safety devices, switching mechanisms, and control systems into a single, strong unit made just for green energy uses.

Core Components and Working Principles

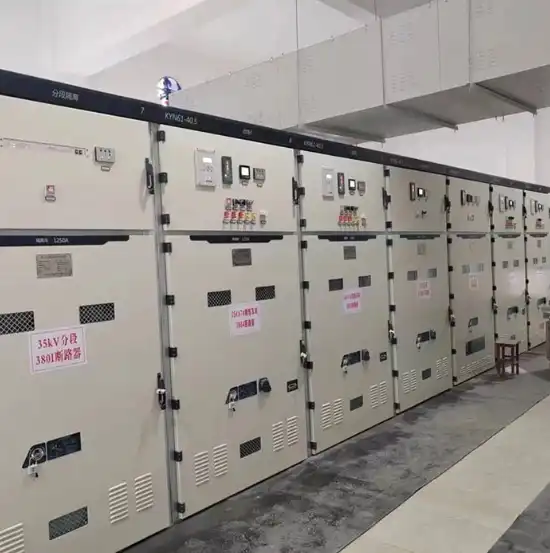

Basically, wind power switchgear is made up of waterproof cabinets that hold vacuum circuit breakers, load switches, disconnectors, and safety relays. These parts work together to handle electricity loads, protect against faults, and make sure the system can safely operate in different wind situations. The vacuum circuit breaker technology gets rid of the need for oil or gas protection, which is better for the environment and stops arcs faster.

Modern switchgear units have high-tech tracking systems that keep real-time records of performance data. Continual input on system health comes from temperature sensors, current transformers, and voltage monitoring devices. This lets repair plans be planned ahead of time, which cuts down on downtime. Using digital communication protocols makes it possible to connect easily to systems that handle wind farms, which makes watching and controlling them from afar easier.

Types and Suitability for Wind Applications

Gas-insulated switchgear is very reliable and can fit in small spaces, but it costs more and is harder to set up. Different types that are air-insulated offer cheap options that work well for onshore wind sites where room isn't as important. Metal-enclosed designs offer the best safety against environmental dangers while still allowing upkeep work to be done easily.

Modular switchgear designs that let you change the layout based on the needs of the project are especially helpful for wind power uses. These systems can handle voltage levels ranging from 6kV to 40.5kV, which means they can work with a variety of rotor technologies and grid link requirements. The modular method also makes installation easier and cuts down on setup time, both of which are important for meeting development plans for wind farms.

Addressing Industry Challenges Through Innovation

Most traditional electrical equipment can't work well in wind power settings because of the harsh conditions, which include steady vibration, temperature changes, and exposure to moisture. Legacy switchgear systems often need to be maintained on a regular basis, which drives up costs and limits the amount of energy that can be produced.

Smart Integration and Digital Monitoring

New developments in switchgear technology solve these problems by incorporating smart sensors and providing better troubleshooting tools. Smart switchgear units constantly check important factors like heat performance, contact wear, and insulator resistance. This information lets condition-based maintenance plans make the best use of service gaps and stop sudden breakdowns.

Digital tracking systems give repair teams early warning signs of possible problems, so they can fix them before they affect operations. Predictive analytics systems look at past performance data to find patterns and suggest the best times to do maintenance. These features greatly cut down on unplanned downtime and increase the life of equipment by using preventative maintenance methods.

Enhanced Safety Protocols and Reliability

Modern combined switchgear has many safety features that keep both the equipment and the people using it safe. Arc fault detection devices find dangerous electrical situations right away and start protective actions within milliseconds. Ground fault prevention stops electrical dangers and keeps the system available with selective trip mechanisms.

Aerospace-grade manufacturing methods and strict quality control steps lead to better reliability. A lot of tests are done on components, such as thermal cycles, vibration strength, and models of being exposed to different environments. These validation steps make sure that the system works the same way in all kinds of working situations. This lowers the chance of field failures that could lower the productivity of wind farms.

Comparing Combined Switchgear Solutions for Wind Power

To choose the right electrical tools, you need to carefully look at its technical specs, how it will be used, and how much it will cost in the long run. When it comes to equipment selection and purchase, wind power projects have their own special problems that need to be solved.

Performance Metrics and Scalability Considerations

Combined switchgear solutions are much better than standard methods that use different parts. When it comes to wind turbine nacelles and tower base placements, where every cubic meter counts when it comes to design complexity and costs, space economy is very important. Integrated designs make it easier to do repair work and lower the size of the footprint needed by up to 40% compared to traditional setups.

Optimum component integration and less complicated interconnections lead to higher operational efficiency. Fewer wire links make installation easier and reduce the number of places where something could go wrong. Standardized interfaces make it easier to update and improve equipment, which helps long-term asset management plans.

Durability and Supplier Reliability Factors

Installing wind power requires tools that can work effectively for 20 to 25 years with little maintenance. The choice of material is very important, and corrosion-resistant metals and new sealing technologies make sure that the work stays consistent in difficult conditions. Protection grades of IP67 cover a wide range of threats, including water entry and particle contamination.

The skills of the supplier have a big impact on the success of the project, especially when it comes to expert help and spare parts availability. Comprehensive service networks make sure that repair needs are met quickly and that there are enough key parts in stock. Warranty terms and performance promises give you even more confidence in the long-term success of your business.

Procurement and Implementation Guide for Wind Power Combined Switchgear

To make good procurement plans, you need to know what the suppliers can do, how to get it, and what kind of technical help you need. Wind power projects often have tight plans, and delays in tools can make the whole project less likely to succeed.

Sourcing Strategies and Supplier Evaluation

A good buying process starts with a careful evaluation of the seller, focused on their technical skills, production capacity, and service support infrastructure. Suppliers who have worked with wind power before know what is needed for each application and can make solutions that fit the special challenges of each project. Quality certifications, such as ISO 9001 and standards relevant to the business, show a dedication to consistently producing high-quality goods.

When it comes to wind power projects, where installation windows are often set by yearly weather trends, delivery options become very important. Suppliers who have flexible production plans and good inventory management can meet different shipping needs while still keeping quality standards. Customized solutions may take 30 to 60 days to finish, while standard goods usually ship within 7 to 15 days.

Installation Best Practices and Maintenance Protocols

Following the right steps for fitting guarantees that the tools will work well and last a long time. Professional installation advice from trained experts can help avoid common problems that could affect how well the system works. Before turning on the power, thorough commissioning processes check that all safety settings and communication links work.

Preventive repair plans keep safety standards high while extending the life of tools. Scheduled regular inspections find possible problems before they become expensive fails. When repair tasks need to change parts, having spare parts on hand makes sure that service can be restored quickly. These proactive methods keep business delays to a minimum and total cost of ownership to a maximum.

Future Trends and Strategic Advantages of Innovative Combined Switchgear

The wind power business is always changing, which leads to new designs and functions for combined switchgear. New technologies promise that future installations will work better, be more reliable, and cost less over their entire lifetime.

Technological Advancements and Market Opportunities

Artificial intelligence and machine learning are being added to power tracking systems as part of digital transformation projects. These technologies allow self-diagnostic features that make maintenance plans more efficient and predict when parts will need to be replaced. Advanced analytics give us information about operating trends that help strategies for improving performance.

Standardizing communication protocols makes it easier to connect to smart grid systems. Better communication lets more people take part in services that keep the grid stable and make sure that energy gets to people quickly during times of high demand. These features allow wind power companies to make more money while also making the grid more reliable generally.

Using modern switchgear technology in a smart way can give you a competitive edge by making operations more efficient and lowering the cost of repair. Companies that adopt new solutions quickly can take advantage of new business possibilities while also learning how to use next-generation technologies. These investments help reach long-term goals for sustainability while also making money by improving business performance.

Conclusion

New developments in combined switchgear technology are a big change for wind power's electrical infrastructure. They offer complete solutions that solve old problems and open up new growth possibilities for the future. Modern combined designs offer higher dependability, better safety, and more efficient operations, all of which have a direct effect on the project's cost and its ability to last for a long time. By adopting advanced switchgear solutions strategically, wind power providers can take advantage of changing market conditions and keep their competitive edge through better business performance and lower lifecycle costs.

FAQ

What makes combined switchgear suitable for wind power applications?

Combined switchgear combines several electrical safety and switching functions into weatherproof housings made especially for places that use green energy. These systems protect wind turbine engines from electrical damage even when they are constantly shaking, the temperature changes, and they are exposed to water.

How does modular switchgear design benefit wind power installations?

Modular designs let you set them up in a variety of ways to meet the needs of different projects and voltage levels ranging from 6kV to 40.5kV. This method makes installation easier, shortens the time needed for testing, and lets systems grow or be changed in the future without having to be replaced completely.

What maintenance advantages do modern switchgear systems provide?

Condition-based maintenance strategies that make the most of service gaps and stop sudden breakdowns are made possible by advanced diagnostic tools. Digital tracking systems use early warning signs and predictive analytics to cut down on unnecessary downtime and make equipment last longer.

How do procurement decisions impact wind power project success?

The choice of supplier affects technical performance, shipping times, and ongoing service support. A full review of the manufacturing capabilities, quality certifications, and service infrastructure makes sure that there is a steady supply of tools and ongoing operating support for the whole project.

Partner with Yuguang for Superior Combined Switchgear Solutions

With 39 patents and many approvals, Yuguang is one of the most advanced switchgear manufacturers in the world. Their work ensures that the electrical infrastructure for wind power is stable. Our combined modular designs protect the environment very well and offer cost-effective options for projects ranging from single units to large-scale installs. Email our expert team at ygvcb@hotmail.com to talk about your unique needs and find out how our full-service approach, which includes research and development, installation, and support after the sale, can help your wind power project succeed.
