Key Features to Look for in High-Voltage Industrial Switchgear

When selecting high-voltage Industrial Switchgear, procurement managers and engineers face critical decisions that impact operational safety, system reliability, and long-term cost effectiveness. This comprehensive guide examines the essential features that distinguish superior switchgear solutions from standard offerings in today's competitive market. High-voltage electrical systems demand equipment capable of withstanding extreme operating conditions while maintaining consistent performance across decades of service life. Understanding the technical specifications, compliance requirements, and manufacturer capabilities enables informed procurement decisions that align with project timelines, budget constraints, and operational requirements. Whether managing power distribution for manufacturing facilities, renewable energy installations, or critical infrastructure projects, the right switchgear selection ensures seamless integration, minimizes maintenance burdens, and provides the reliability foundation necessary for uninterrupted industrial operations.

Understanding High-Voltage Industrial Switchgear

Electrical distribution systems that operate at high voltages are dependent on sophisticated control and protection technology in order to regulate the flow of power across industrial sites in a manner that is both safe and effective. The purpose of industrial switchgear is to act as the crucial interface between incoming power supplies and downstream electrical loads. It incorporates circuit breakers, disconnect switches, protective relays, and monitoring systems within integrated enclosures that are designed to accommodate particular voltage classifications and environmental conditions.

Core Components and Electrical Ratings

There are several functional aspects that are integrated into modern switchgear assemblies, and these elements work together to manage the distribution of electrical power. Circuit breakers provide protection against overcurrent and also have the ability to isolate the system, whilst disconnect switches make it possible to perform maintenance operations in a secure manner. It is the responsibility of protective relaying systems to continually monitor electrical parameters and to initiate necessary reactions in the event that abnormal situations occur. It is possible to get precise measurement signals for metering and protective purposes via the use of current and potential transformers. By using materials and designs that are optimised for particular voltage and current needs, bus bar systems are able to transport electrical power throughout the assembly in an effective manner.

Electrical ratings are the operational limitations that switchgear may operate within in order to conduct its functions in a safe and reliable manner. In the context of industrial applications, voltage classifications generally vary from 6 kilovolts to 40.5 kilovolts, with each level necessitating a certain insulation coordination and clearance distance. The maximum continuous load capacity is determined by the current ratings, whereas the interrupting capacity parameters reflect the highest fault current levels that circuit breakers are able to safely pass without causing any harm.

Switchgear Types and Insulation Methods

Through the use of atmospheric air as the principal insulation medium, air-insulated switchgear provides solutions that are both cost-effective and suitable for a wide range of industrial applications. However, despite the fact that these systems need bigger physical footprints, they provide good accessibility for maintenance and inspection operations. The use of sulphur hexafluoride gas in gas-insulated switchgear allows for exceptional insulation characteristics to be achieved inside small enclosures. This makes these switchgears suitable for installations that are limited in space or that are subjected to very severe climatic conditions.

Due to the fact that it does not need any maintenance and has a longer service life, vacuum circuit breaker technology has achieved broad appeal. Unlike earlier air or oil circuit breakers, these devices make use of vacuum interrupters to safely extinguish electrical arcs. This eliminates the need for frequent contact maintenance, which is often required for maintaining older circuit breakers. The lack of insulating fluids has the effect of reducing environmental concerns while also simplifying the processes for installation and operation.

Core Features to Evaluate When Choosing High-Voltage Industrial Switchgear

For the purpose of selecting suitable switchgear, it is necessary to conduct a thorough examination of a variety of technical and operational features that have a direct influence on the performance and reliability of the system. During the process of procurement, giving careful attention to the following essential characteristics is highly recommended.

Electrical Performance and Reliability Metrics

It is necessary for the voltage and current ratings to be equal to or greater than the maximum values that are anticipated for both regular and emergency types of operations. The requirements for the interrupting capacity should be able to tolerate the maximum fault current levels that are at all achievable inside the electrical system. This will ensure that there are sufficient safety margins for any future system expansions or configuration modifications. The capacity of the equipment to endure fault currents for small periods of time while protective mechanisms are operating to clear the fault situation is indicated by short-time withstand ratings.

Temperature rise characteristics have an impact on the lifetime and operational dependability of equipment, especially in conditions with high ambient temperatures, which are typical of industrial facilities. The thermal performance data that is provided by quality manufacturers is quite thorough, which permits an accurate evaluation of the cooling needs and installation issues. The mechanical endurance ratings of switching devices are used to determine the number of cycles of operation that they are able to reliably execute throughout the course of their service life.

Advanced Protection and Monitoring Capabilities

Contemporary Industrial Switchgear incorporates sophisticated digital protective relaying systems that provide comprehensive monitoring and diagnostic capabilities. These systems continuously evaluate electrical parameters, detecting abnormal conditions and initiating appropriate protective responses automatically. Integration with plant-wide control systems enables remote monitoring and operation, reducing the need for personnel exposure to energized equipment during routine operations.

Equipment health indicators such as contact wear, insulation integrity, and operating mechanism performance are monitored by condition monitoring features via the use of these features. Identifying possible problems before they lead to equipment breakdowns or unscheduled outages is the goal of predictive maintenance algorithms, which analyse trending data to pinpoint potential problems. Integration with pre-existing plant automation systems is made possible by communication protocols, which also provide the transmission of data in a smooth manner and the coordination of control measures.

Modular Design and Maintenance Accessibility

Modular structure makes it easier to customise a product to meet the needs of a particular application while also simplifying the installation process and allowing for future adjustments. Component interfaces that are standardised make it possible to easily replace individual modules without disrupting the equipment parts that are next to them. By isolating distinct functional regions, compartmentalisation makes it possible to perform selected maintenance operations while still ensuring that service is provided to circuits that are not impacted.

For the purpose of ensuring that inspection and service processes be carried out in a secure manner, maintenance accessibility features include detachable arc chutes, accessible connection points, and suitable working clearances. Access to regular maintenance points that does not need the use of tools cuts down on the amount of time needed for service and lessens the likelihood of making maintenance-related mistakes.

Comparison of High-Voltage Industrial Switchgear Types and Technologies

Having an understanding of the benefits and drawbacks of various switchgear technologies helps one to make the most appropriate choice for the needs of a particular application and the environment in which it is intended to be used.

Air Insulated vs. Gas Insulated Systems

Air-insulated switchgear provides a number of impressive benefits that are applicable to a wide variety of industrial applications. The open-air design allows for good view of all components, which makes inspection and maintenance operations much simpler to carry out. In most cases, actions involving repair and replacement may be carried out with the use of common tools and methods, hence decreasing the need for specialised service providers. The lack of pressurised gas systems removes any issues about the handling requirements or the possibility of gas leakage.

Applications that need compact installations or operation in polluted environments are ideal for gas-insulated switchgear because it provides higher performance in these situations. Internal components are shielded from dust, moisture, and corrosive atmospheres that are typical in industrial environments thanks to the structure in which the components are sealed. The reduced physical footprint makes it possible to deploy the system in locations where space restrictions make it difficult to use alternatives that use air insulation.

Vacuum vs. Air Circuit Breaker Technologies

The maintenance-free working features of vacuum circuit breakers have resulted in a revolution in the dependability of switchgear. Over the course of their operating life, which normally lasts for at least thirty years, the sealed vacuum interrupters do not need any periodic maintenance or adjustments. Because arc extinction happens naturally inside the vacuum environment, there is no need to worry about arc products or the deterioration of insulating medium, and they are eliminated. These features make Industrial Switchgear a reliable choice for long-term operations with minimal downtime and maintenance costs.

It is still possible to employ air circuit breakers for some applications, especially in situations where the maintenance processes and spare parts inventories that are already in place are sufficient to support their ongoing usage. Vacuum technology, on the other hand, is becoming more appealing for new installations due to the fact that it requires occasional contact maintenance and has shorter service intervals.

Indoor and Outdoor Installation Considerations

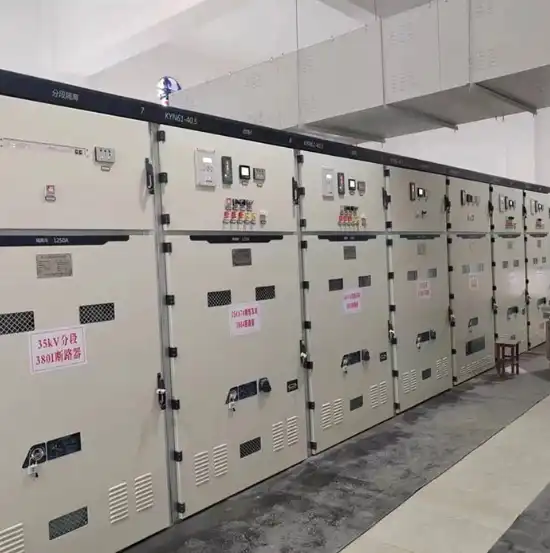

While indoor switchgear installations provide protection from the effects of the weather, they also make it possible to integrate with the temperature control systems of the building. It is customary for these installations to provide improved accessibility for maintenance operations, as well as protection for delicate electronic components against exposure to severe temperatures and dampness.

In order to function properly, outdoor switchgear must be able to survive harsh environmental conditions such as fluctuating temperatures, exposure to moisture, and UV light. Advanced enclosure designs make use of materials that are resistant to corrosion and sealing systems in order to keep the interior environment in a state that is ideal for the maintenance and operation of equipment that is dependable. The production of condensation is prevented by heating systems when the weather is cold.

Practical Considerations for Procurement and Installation

The process of successfully procuring switchgear involves more than just meeting technical specifications; it also involves evaluating suppliers, determining project logistics, and taking into account long-term support issues, all of which have an impact on overall ownership costs and operating dependability.

Supplier Evaluation and Customization Capabilities

The decision of the manufacturer has a substantial influence on the success of the project because of the engineering capabilities, quality systems, and support infrastructure capabilities of the manufacturer. In the same way that specialised manufacturers may be able to give unique solutions for particular application issues, established manufacturers such as Siemens, ABB, and Schneider Electric provide complete product lines and worldwide support networks.

In situations when conventional items are unable to fit specific site requirements or operational circumstances, the ability to customise products becomes very important. Yuguang Electric exhibits excellent capabilities in scenario-based customisation, customising equipment designs for tough conditions and applications that are special to the sector. The integrated modular design approach that they use makes it possible to create smaller systems that have improved sealing qualities and enhanced service life expectations.

The use of advanced production methods guarantees that the quality and dependability of all product variants are maintained consistently. The precise technology and specific tooling techniques used by Yuguang are of an aerospace-grade quality, allowing for the production of core components that exhibit excellent accuracy and sealing integrity. It is necessary to conduct stringent testing processes in order to validate conformity with international standards while simultaneously validating performance under real operational settings.

Lead Times and Delivery Logistics

It is necessary for the scheduling of the project to take into account the actual timescales for the delivery of the equipment, which differ dramatically between standard and customised items. Standard switchgear setups normally need a delivery time of seven to fifteen days, however customised solutions may take anywhere from thirty to sixty days, depending on the intricacy of the problem and the skills of the manufacturer.

When it comes to overseas projects, where the equipment must be able to resist lengthy periods of transit and many handling procedures, packaging and shipping concerns become very critical. Systems of packaging that are resistant to stress and moisture safeguard delicate components while they are in transit while also satisfying the standards for international shipping operations.

Professional Installation and Commissioning Support

In order to guarantee optimum equipment performance and compliance with safety regulations over the whole of the operating life, proper installation and commissioning processes are required. The use of professional installation instructions helps to decrease the likelihood of setup problems while also assuring compliance with the requirements of the manufacturer and the electrical regulations in the area. This is especially crucial for Industrial Switchgear, where proper installation ensures the longevity and safe operation of the equipment.

The commissioning actions ensure that the equipment is operating correctly in the real circumstances of the site, identifying any changes that are required to achieve optimal performance standards. To ensure that the protective system is coordinated and that all safety interlocks are functioning properly, comprehensive testing methods must be followed before the installation is powered on.

Ensuring Safety and Performance Through Proper Maintenance

In order to achieve the highest possible level of switchgear reliability and service life, it is necessary to implement organised maintenance plans that provide for both regular inspection needs and long-term component replacement planning.

Preventive Maintenance Strategies

Effective maintenance plans strike a balance between the frequency of inspections and the interruption of operations, with a particular emphasis on key components that have an impact on the dependability and safety of the system. When visual inspections are performed, evident problems such as overheating, corrosion, or mechanical damage are identified. If these issues are not addressed, they might result in the failure of the equipment.

Electrical testing methods must be carried out at intervals that are suitable for the operational environment and the vintage of the equipment in order to evaluate the integrity of the insulation, the contact resistance, and the protective relay calibration. Test results may be analysed using trending, which allows for the early discovery of growing issues before they have an impact on the dependability of the system.

Technology Upgrades and Modernization Options

Switchgear installations that are getting on in years might reap the benefits of strategic modifications that include contemporary technology without necessitating the replacement of the whole apparatus. Enhanced protection capabilities and diagnostic features are provided by digital protective relaying systems. These characteristics serve to increase system dependability while also minimising the amount of maintenance that is required.

Improvements to communication systems make it possible to integrate them with contemporary plant automation systems. This integration enables remote monitoring and control capabilities, which in turn reduces operating expenses while simultaneously enhancing safety by reducing the amount of humans who are exposed to energised machinery.

Operator Training and Certification Programs

In order to guarantee that people in charge of operations and maintenance are aware of the correct procedures for the safe operation and maintenance of equipment, comprehensive training programs are implemented. Updates to certifications on a regular basis meet ever-changing safety regulations and include the knowledge gained from years of experience in the industry.

Emergency response training equips staff with the skills necessary to properly manage abnormal circumstances while minimising the amount of damage to equipment and downtime experienced by the system. In the event of a significant incident involving industrial switchgear systems, it is essential to coordinate with the local emergency services in order to guarantee an adequate reaction.

Conclusion

Selecting high-voltage Industrial Switchgear requires careful evaluation of technical specifications, manufacturer capabilities, and long-term support requirements that collectively determine project success and operational reliability. The most effective procurement decisions balance performance requirements with cost considerations while ensuring compliance with applicable safety standards and environmental regulations. Modern switchgear technologies offer significant advantages over legacy designs through improved reliability, reduced maintenance requirements, and enhanced monitoring capabilities that support predictive maintenance strategies. Partnering with experienced manufacturers who provide comprehensive support throughout the equipment lifecycle ensures optimal return on investment while maintaining the safety and reliability standards essential for industrial operations.

FAQ

Q1: What factors most significantly impact switchgear pricing and project costs?

A: Equipment pricing varies substantially based on voltage ratings, current capacity, customization requirements, and manufacturer reputation. Standard configurations typically offer the most competitive pricing, while specialized designs for harsh environments or unique applications command premium costs. Installation complexity, site accessibility, and local labor rates significantly influence total project costs beyond equipment purchase prices.

Q2: How do I select the most appropriate switchgear technology for my specific industrial application?

A: Application selection depends on multiple factors including available space, environmental conditions, maintenance capabilities, and operational requirements. Vacuum circuit breaker technology provides the best combination of reliability and maintenance simplicity for most industrial applications. Gas insulated designs suit space-constrained installations or severely contaminated environments, while air insulated systems offer cost advantages where space permits and environmental conditions are favorable.

Q3: Which safety standards and certifications should I prioritize during procurement?

A: IEC 62271 provides the primary international standard for high-voltage switchgear design and testing requirements. ANSI/IEEE standards govern installations in North American markets. Quality manufacturers maintain ISO 9001 certification for quality management systems and ISO 14001 for environmental management. Regional certifications such as CE marking for European markets ensure compliance with local regulatory requirements.

Partner with Yuguang for Superior Industrial Switchgear Solutions

Yuguang Electric combines proven expertise with innovative engineering to deliver Industrial Switchgear solutions that exceed industry standards for reliability, safety, and performance. Our comprehensive approach addresses the complete equipment lifecycle from initial design through long-term maintenance support, ensuring optimal value for your investment. With 39 patents and authoritative certifications including ISO 9001:2015, we provide the technical foundation necessary for successful industrial projects across diverse applications and operating environments.

Our manufacturing capabilities span the complete 6kV-40.5kV voltage range with customization options that address the most challenging installation requirements. Advanced modular designs minimize footprint requirements while maximizing operational flexibility and maintenance accessibility. Contact our engineering team at ygvcb@hotmail.com to discuss your specific requirements and discover how our industrial switchgear manufacturer expertise can enhance your project outcomes.
