The Difference Between MV and HV Switchgear Explained

Understanding the distinction between medium voltage (MV) and high voltage (HV) switchgear is crucial for power system professionals. MV switchgear typically operates between 1kV to 35kV, handling power distribution in industrial facilities and commercial buildings. HV switchgear, ranging from 35kV to 800kV, manages power transmission across electrical grids and major infrastructure projects. The primary differences lie in voltage ratings, insulation requirements, safety protocols, and application scope. These electrical control systems serve as the backbone of power distribution networks, ensuring reliable circuit breaker operation and protective relay functionality across diverse voltage levels.

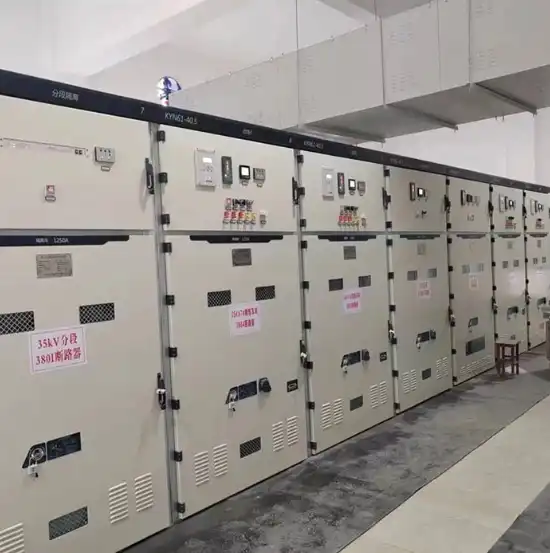

Voltage Classification Standards and Applications

The basis for differentiating between MV and HV switchgear systems is voltage categorization. According to international standards, medium voltage is defined as between 1 kV and 35 kV, while high voltage includes ranges between 35 kV and 800 kV. The design of equipment, safety regulations, and installation techniques are all directly impacted by these classes. Distribution substations, commercial buildings, and industrial production facilities are often served by medium voltage switchgear.

MV systems are crucial to the power distribution requirements of mining activities, chemical processing plants, and steel mills. The voltage levels are exactly in line with the needs of process equipment and industrial motor drives. Transmission substations, power plants, and grid connecting points are examples of high-voltage uses. HV switchgear is integrated into thermal power plants, wind farms, and solar projects to link to transmission networks. These higher voltage systems are also used in airport infrastructure and urban rail transportation systems.

Three core voltage differences:

• Operating range: MV (1-35kV) vs HV (35-800kV)
• Application focus: MV for distribution vs HV for transmission
• Network position: MV at consumption points vs HV at generation/transmission nodes

If you need equipment for industrial distribution applications, then MV switchgear is more suitable. If you require transmission-level power handling, then HV switchgear better meets your requirements.

​​​​​​​

Technical Specifications and Performance Parameters

The performance characteristics of MV and HV switchgear vary significantly, depending on technical parameters. These voltage classes differ significantly in terms of insulation coordination, fault interruption capabilities, and current-carrying capacity. With fault interruption capabilities up to 63kA, medium voltage switchgear often manages current ratings between 630A and 6300A. For a length of one to three seconds, short-circuit withstand ratings typically fall between 25kA and 63kA.

The majority of commercial and industrial power needs are efficiently met by these criteria. With fault interruption capabilities surpassing 80kA and the ability to handle currents up to 8000A, high voltage systems exhibit higher performance attributes. For prolonged periods, short-circuit withstand rates surpass 100kA. Arc flash energy levels require specific safety procedures and improved defenses. HV switchgear is subjected to more stringent performance validation, according to testing data from IEC 62271 standards. While MV systems normally test at 70kV for 24kV class equipment, dielectric testing voltages exceed 395kV for 362kV class equipment. The strong insulating systems needed for higher voltage operations are shown by power frequency withstand testing.

Performance comparison highlights:

• Current capacity: MV up to 6300A vs HV up to 8000A+
• Fault interruption: MV up to 63kA vs HV exceeding 80kA
• Withstand capability: MV 25-63kA vs HV 100kA+
• Test voltages: MV 70kV vs HV 395kV+

If you need moderate fault handling for industrial processes, then MV specifications are more suitable. If you require maximum fault interruption for transmission applications, then HV performance parameters better serve your needs.

Design, Architecture, and Construction Differences

The different operating needs and safety concerns are reflected in the structural design differences between MV and HV switchgear. Protective enclosure designs, material choices, and physical proportions all adjust to voltage-specific difficulties. Compact metal-enclosed designs with air or SF6 gas insulation are used in medium voltage switchgear. Panel widths often fall between 800 and 1200 mm, which accommodates industrial settings with limited space.

Future extension possibilities and flexible configuration adjustments are made possible by modular construction. Significantly bigger footprints and improved insulation coordination are necessary for high-voltage buildings. As gas-insulated switchgear (GIS) technology gains traction, SF6 gas is used for its outstanding dielectric qualities. Improved arc containment systems and longer creepage distances are features of metal enclosed switchgear designs. Busbar configurations vary greatly across voltage classes.

Copper or aluminum conductors with simple insulation wrapping are used in MV systems. Specialized busbar designs with improved insulation systems and corona protection techniques are necessary for high-voltage installations. Integration of voltage transformers and current transformers varies greatly. While HV systems often utilize optical sensors and electronic measuring technology for increased accuracy and safety, MV installations use traditional wound-type transformers.

Construction variances include:

• Physical size: MV compact panels vs HV extensive structures
• Insulation type: MV air/basic SF6 vs HV advanced gas systems
• Busbar design: MV standard conductors vs HV corona-protected systems
• Measurement integration: MV conventional vs HV electronic sensors

If you need space-efficient installations for industrial facilities, then MV compact designs are more suitable. If you require extensive transmission infrastructure, then HV robust construction better addresses your applications.

Safety Requirements and Protection Systems

There is a substantial increase in safety procedures and protective measures between MV and HV switchgear installations. Higher voltage levels increase the need for arc flash protection, electrical safety protocols, and maintenance scheduling. Energy levels between 8 and 40 cal/cm² are usually covered by medium voltage arc flash protection. For maintenance tasks, Category 2-4 arc flash suits are required personal protective equipment. Operator vulnerability while switching procedures is decreased by remote control capabilities.

Arc flash energy levels in high voltage systems are much greater and often surpass 100 cal/cm². Rapid fault-clearing technology, arc detection sensors, and pressure release devices are all part of advanced protection systems. For the majority of switching operations, remote operation becomes essential. Across all voltage levels, protective relay systems show growing complexity. Multifunctional digital relays with fundamental communication characteristics are used in MV systems.

HV systems combine sophisticated automation and remote monitoring capabilities with all-inclusive SCADA systems. The needs for maintenance scheduling differ greatly across voltage classes. While MV equipment usually undergoes inspection cycles of three to five years, HV installations may have intervals of ten to fifteen years because of better insulation and easier access to maintenance.

Safety escalation factors:

• Arc flash energy: MV 8-40 cal/cm² vs HV 100+ cal/cm²
• Protection equipment: MV Category 2-4 vs HV specialized systems
• Operation mode: MV manual/remote vs HV predominantly remote
• Maintenance cycles: MV 3-5 years vs HV 10-15 years

If you need manageable safety requirements for industrial operations, then MV protection systems are more suitable. If you require maximum safety protocols for transmission infrastructure, then HV advanced protection better serves your needs.

Cost Analysis and Economic Considerations

The choice between MV and HV switchgear systems is heavily influenced by economic considerations. Between voltage categories, there are significant differences in the initial capital investment, installation costs, and ongoing operating expenditures. Depending on the specifications, medium voltage switchgear usually requires a lower initial expenditure, ranging from $50,000 to $200,000 per bay. Compact designs and typical foundation requirements keep installation costs low. Project finance expenses are decreased by shorter delivery timeframes.

High voltage installations are expensive, with transmission-class equipment sometimes costing more than $500,000 per bay. Project costs are significantly increased by specialized installation requirements, thorough testing processes, and improved safety precautions. Project timelines may be impacted by prolonged manufacturing lead times. Interesting differences between voltage levels are shown by operational cost analysis. MV systems use common replacement components but need more regular maintenance interventions.

Longer service intervals are seen in HV systems, which also require expensive replacement parts and specific maintenance knowledge. Even though HV systems need larger initial expenditures, life-cycle cost considerations favor them for transmission applications. Over the course of 25–30 years of operation, improved dependability, longer service life, and less frequent maintenance all contribute to positive economic returns. MV economic benefits are more appropriate if you require economical solutions for industrial distribution. The advantages of the HV life cycle outweigh the premium expenses if you need to make long-term investments in transmission infrastructure.

Conclusion

The fundamental differences between MV and HV switchgear encompass voltage ratings, technical specifications, safety requirements, and economic considerations. Medium voltage systems excel in industrial distribution applications, offering cost-effective solutions for manufacturing and commercial facilities. High voltage installations provide superior performance for transmission infrastructure, delivering enhanced reliability and long-term operational benefits. Understanding these distinctions enables informed decision-making for power system professionals. Proper selection criteria should consider voltage requirements, fault handling capabilities, safety protocols, and life-cycle economics. Professional consultation ensures optimal equipment selection for specific project requirements and operational objectives.
