Why use a vacuum circuit breaker?

When it comes to protecting electricity in medium to high voltage situations, vacuum circuit breakers are the best. They offer the highest level of stability and safety for industry operations. Compared to standard oil, air, or SF6-based options, these high-tech devices work better because they use advanced vacuum technology to stop electrical problems. Vacuum circuit breakers get rid of environmental dangers and consistently extinguish arcs. This makes them necessary for power plants, factories, and important building projects where downtime costs a lot of money.

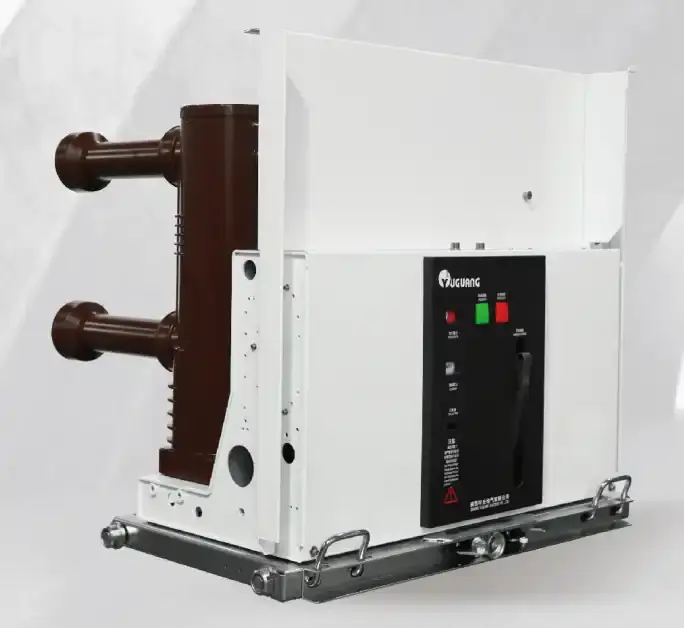

Understanding Vacuum Circuit Breakers: Definition and Core Working Principles

Fundamental Design and Operation

Vacuum circuit breakers work on a completely new theory that makes them different from other switching devices. The main part of the technology is vacuum interrupters, which are sealed tanks with moving and set contacts that are placed in an ultra-high vacuum environment. The moving contact splits from the fixed contact when there is an electrical problem. This makes an electrical arc. Since there are no ionizing particles in the vacuum, this arc goes out right away. This stops any long-term arcing that could damage electronics or put people in danger.

The vacuum interrupter chamber keeps the pressure below 10^-4 torr, which means that electrons can't move very far without hitting the walls of the room. This physical feature makes sure that the curve ends quickly, usually within the first zero crossing of the current. The contact materials, which are generally a copper-chromium alloy, are very good at conducting electricity when everything is working normally, but they don't allow welding to happen when there is a problem.

Technical Specifications and Performance Metrics

These days, vacuum circuit breakers can handle voltages from 3.6kV to 40.5kV and currents from 630A to 4000A. The short circuit breaking ranges from 16kA to 63kA, so it can meet a wide range of industry needs. The vacuum technology lets the device run more than 30,000 mechanical operations and 100 electricity operations at full capacity, showing that it is very durable for tough uses.

Compared to other technologies, the touch movement distance stays small, usually between 8 and 16 mm. This lowers the amount of energy needed and the stress on the mechanical parts. Response times for full fault isolation are usually between 50 and 80 milliseconds. This keeps downstream equipment from getting damaged and keeps the system stable.

Advantages of Vacuum Circuit Breakers Over Alternative Technologies

Superior Environmental and Safety Benefits

Because it is better for the environment, vacuum technology is better than other options. Vacuum circuit breakers emit no pollution when they are in use, unlike SF6 circuit breakers, which use sulfur hexafluoride gas, which has a global warming potential 23,500 times greater than carbon dioxide. This benefit for the environment fits with companies' efforts to be more environmentally friendly, and it gets rid of the legal worries that come with managing greenhouse gases.

Vacuum technology is different from oil circuit breakers because it doesn't use burning materials. This means there are no fire risks and no complicated dumping requirements. The people who work in maintenance don't have to deal with dangerous gases or oil that has been tainted, so they can do their jobs without putting themselves or others at risk.

Economic and Operational Advantages

Here are the main business reasons why vacuum technology is appealing for use in industry:

• Maintenance costs are 60–80% lower than with oil or air circuit breakers because they are protected and don't need to be replaced as often.

• Installation costs go down a lot because the design is small and extra systems like oil cleaning or SF6 handling tools are not needed.

• Operating costs stay low because there is no need for regular oil analysis or gas refills.

• If you put the equipment correctly and check it regularly, it will last an extra 25 to 30 years.

These economic benefits add up to big saves over the life of the equipment, especially for places that use a lot of circuit breakers in large electricity distribution systems.

Enhanced Reliability and Performance Characteristics

No matter what the world is like, vacuum equipment always works the same way. Changes in temperature from -40°C to +60°C don't affect the ability to stop. This is different from oil circuit breakers, where changes in viscosity affect performance. Changes in humidity and altitude also have almost no effect on how the vacuum interrupter works.

The sealed design keeps dust, wetness, and chemical fumes from getting into the device, which can happen with open-air switching devices. This resistance to external factors makes sure that the equipment works reliably in tough industrial settings like steel mills, chemical plants, and outdoor substations.

Applications and Industry Use Cases of Vacuum Circuit Breakers

Power Generation and Transmission Applications

Power plants all over the world use vacuum technology to protect their generators and send extra power to other parts of the plant. For medium voltage switchgear in thermal power plants, vacuum circuit breakers protect important systems like boiler feed pumps, cooling water flows, and coal handling equipment. The ability to quickly clear faults stops chain failures that could shut down the unit.

Vacuum technology is especially useful for wind power sites that are in remote areas where it can be hard to get to for upkeep. This design is sealed, so it can resist harsh weather and protect wind turbine engines and collection systems all the time.

Industrial Manufacturing and Heavy Industry

Manufacturing plants that use methods that use a lot of energy depend on vacuum circuit breakers for uninterrupted production. These are used to protect arc furnaces in steel mills, where short circuit currents can be over 50kA. Because vacuum technology can stop such high levels of faults while keeping the purity of the equipment, costly production delays are avoided.

In chemical processing plants, motor safety circuits that run pumps, compressors, and reaction vessel systems use vacuum switching. Vacuum technology is safe for the environment and meets the strict rules of the chemical industry. It also protects tools reliably.

Infrastructure and Transportation Systems

Urban train transit systems depend on vacuum circuit breakers for traction power distribution and station auxiliary systems. The maintenance-free operation works well for transportation networks in cities that need to be open 24 hours a day, seven days a week. The dependability of vacuum technology also helps airport ground power systems with important tasks like lighting the runways and distributing power to the terminals.

For medium voltage distribution serving multiple buildings or campus-wide installs, data centers are increasingly specifying vacuum circuit breakers. The environmental safety and small size make it work with the limited room that most urban data centers have.

How to Choose and Procure Vacuum Circuit Breakers for Your Business

Essential Technical Selection Criteria

To choose the right vacuum circuit breakers, you need to carefully look at electrical and outdoor factors. The voltage grade must be higher than the standard voltage of the system by a safe amount, usually between 15 and 20 percent for medium voltage uses. The current rating should be able to handle the normal load current plus safety factors that take into account load growth and emergency working situations.

It is very important that the short circuit interrupting capacity meets or beats the highest possible fault current at the placement point. These numbers come from system studies done by trained engineers that look at transformer capacity, wire impedance, and the needs for upstream safety coordination. The environment, such as height, temperature range, earthquakes, and pollution levels, affects the choice of tools. Whether the barrier needs to be installed indoors or outdoors affects the specs and choices of accessories.

Procurement Considerations and Supplier Evaluation

Certification of suppliers and processing standards are the first steps in making sure quality. ISO 9001 approval shows that quality management systems are in place, and IEC 62271-100 testing of products makes sure that they meet international standards. When factories have fully automatic production lines and testing tools, the products they make are more consistent and reliable.

Delivery plans need to take project deadlines into account while still giving enough time for quality control. Quality control procedures are often harmed by rush deliveries, which could cause problems in the field and cause the project to be delayed. Established providers keep standard setups in stock and offer reasonable lead times for custom uses.

The ability to provide after-sales help has a big effect on the long-term success of an operation. Uptime and maintenance costs are affected by things like the proximity of service centers, the supply of spare parts, and how quickly technical help can respond. Supplier examples from similar applications can tell you a lot about how well a product will work in real life and how good the support is.

Conclusion

Vacuum circuit breakers have become the standard way to protect medium-voltage electrical systems in a wide range of industry settings. They are better for the climate, more reliable, and need less maintenance than older technologies, which are all very strong benefits. Vacuum technology is an important part of modern electricity infrastructure because it improves safety, saves money, and works perfectly. As businesses put more emphasis on being environmentally friendly and running efficiently, vacuum circuit breakers have been shown to be the best way to protect electrical systems and help companies meet their environmental responsibility goals.

FAQ

What maintenance schedules apply to vacuum circuit breakers?

Vacuum circuit breakers require minimal scheduled maintenance compared to alternative technologies. Annual visual inspections verify contact condition and operating mechanism function. Comprehensive maintenance intervals extend to 5-7 years, involving contact resistance measurements, timing tests, and mechanical adjustments. The sealed vacuum chambers typically require no maintenance throughout the equipment's 25-30 year service life.

How do vacuum circuit breakers perform in extreme environmental conditions?

Vacuum technology demonstrates exceptional environmental resilience across temperature ranges from -40°C to +60°C without performance degradation. The sealed interrupter design prevents moisture ingress and contamination that affects other technologies. Altitude variations up to 3000 meters have minimal impact on interrupting capacity, unlike air circuit breakers where reduced air density significantly affects performance.

What safety advantages do vacuum circuit breakers provide over SF6 alternatives?

Safety benefits include elimination of toxic gas exposure risks and greenhouse gas emissions. Maintenance personnel work safely without respiratory protection requirements or gas handling procedures. Environmental safety eliminates regulatory compliance burdens associated with SF6 monitoring and disposal. The absence of flammable materials reduces fire hazards compared to oil circuit breakers.

Can existing switchgear accommodate vacuum circuit breaker retrofits?

Many existing medium voltage switchgear setups that are already in place can be retrofitted with vacuum circuit breakers with only minor changes. In addition to improving performance and safety, vacuum circuit breakers are often small enough to fit in existing spaces. For retrofit uses, a professional engineering review makes sure that the parts fit correctly, work with electricity, and follow the rules.
