Description:
FZRN21-40.5D Indoor High Voltage Vacuum Load Switch is a type of high-voltage vacuum load switch and LBS-fuse combined unit that is suitable for three-phase AC 40.5kV, 50Hz power system, or supporting with sets of power distribution equipment, RMU switchgear, combined power station, etc.
Application:
FZRN21-40.5D Indoor High Voltage Vacuum Load Switch
is widely used in wind power generation. urban network construction and modification projects, industrial and mining enterprises, high-rise buildings and public facilities.
FZRN21-40.5D Indoor High Voltage Vacuum Load Switch can be used as a ring network power supply unit or terminal equipment with functions such as electric energy distribution, control and protection.
The product's technical performance meets the requirements of GB16926-1997 AC High Voltage Load Switch -- LBS-fuse Combined Unit and IEC420 AC High Voltage Load Switch -- LBS-fuse Combined Unit.
Advantages:
FZRN21-40.5D Indoor High Voltage Vacuum Load Switch
has the advantages as following:
1: large breaking capacity,
2: safety and reliability,
3: Long electric life,
4: frequent operation,
5: compact structure,
6: small in size,
7: lightweight,
8: maintenance-free, etc.
It can disconnect rated current, overload current, short-circuit current and prevent equipment from phase failure operation. The switch has an obvious isolation fracture. It is equipped with a grounding switch and electric spring mechanism with closing and opening ability and can be remotely controlled.
Technical parameters:
|
Main technical parameters |
||||
|
No. |
Name |
Unit |
Data |
|
|
1 |
Rated voltage |
kV |
40.5 |
|
|
2 |
Rated frequency |
Hz |
50 |
|
|
3 |
Maximum rated current of fuse |
A |
63 |
|
|
4 |
Rated |
Power frequency |
kV |
Vacuum fracture,between poles and to |
|
Rated Lightning impulse |
kV |
Vacuum fracture,between poles and to |
||
|
5 |
Rated peak withstand current |
kA |
50 |
|
|
6 |
Rated short-time withstand current 4S |
kA |
20 |
|
|
7 |
Rated Active load breaking current |
A |
1250 |
|
|
8 |
Rated closed-loop breaking current |
A |
1250 |
|
|
9 |
Rated cable-charging breaking current |
kA |
21 |
|
|
10 |
Rated short circuit breaking current |
kA |
31.5 |
|
|
11 |
Rated transfer current |
A |
1200 |
|
|
12 |
Fuse model |
A |
XRNT3A-40.5/□-31.5 |
|
|
13 |
Output energy of fuse impactor |
A |
2~5 |
|
|
14 |
Rated short-circuit making current |
kA |
80 (expected peak) |
|
|
15 |
Rated peak withstand current of earthing |
kA |
50 |
|
|
16 |
Rated short-time withstand current of |
kA |
20 |
|
|
17 |
Rated voltage of auxiliary circuit (DC or |
V |
220;110 |
|
|
18 |
Mechanical life |
Times |
10000 |
|
|
Technical parameters of vacuum load switch after installation and adjustment |
|||
|
No. |
Name |
Unit |
Data |
|
1 |
Contact clearance |
mm |
17±1 |
|
2 |
Compression of contact spring |
mm |
4±1 |
|
3 |
Average closing speed |
m/s |
0.8±0.2 |
|
4 |
Average opening speed (opening distance reaches 6mm) |
m/s |
1.5±0.2 |
|
5 |
Opening time |
ms |
≤60 |
|
6 |
Out of simultaneity of CO operations of three poles |
Ms |
≤2 |
|
7 |
Contact bouncing duration at closing operation |
ms |
≤3 |
|
8 |
Distance between charged bodies and to ground |
mm |
>300 |
|
9 |
Loop resistance between upper and lower supports |
μΩ |
≤80 |
|
Technical parameters of isolating switch after installation and adjustment |
|||
|
No |
Name |
Unit |
Data |
|
1 |
Out of simultaneity of closing operation of three poles |
Ms |
≤2 |
|
2 |
Deflection of just closing position of each pole |
mm |
≤2 |
|
3 |
Positive pressure of contact |
N |
260±20 |
|
4 |
Fracture opening distance |
mm |
>350 |
|
5 |
Loop resistance |
μΩ |
≤150 |
Overall dimension:

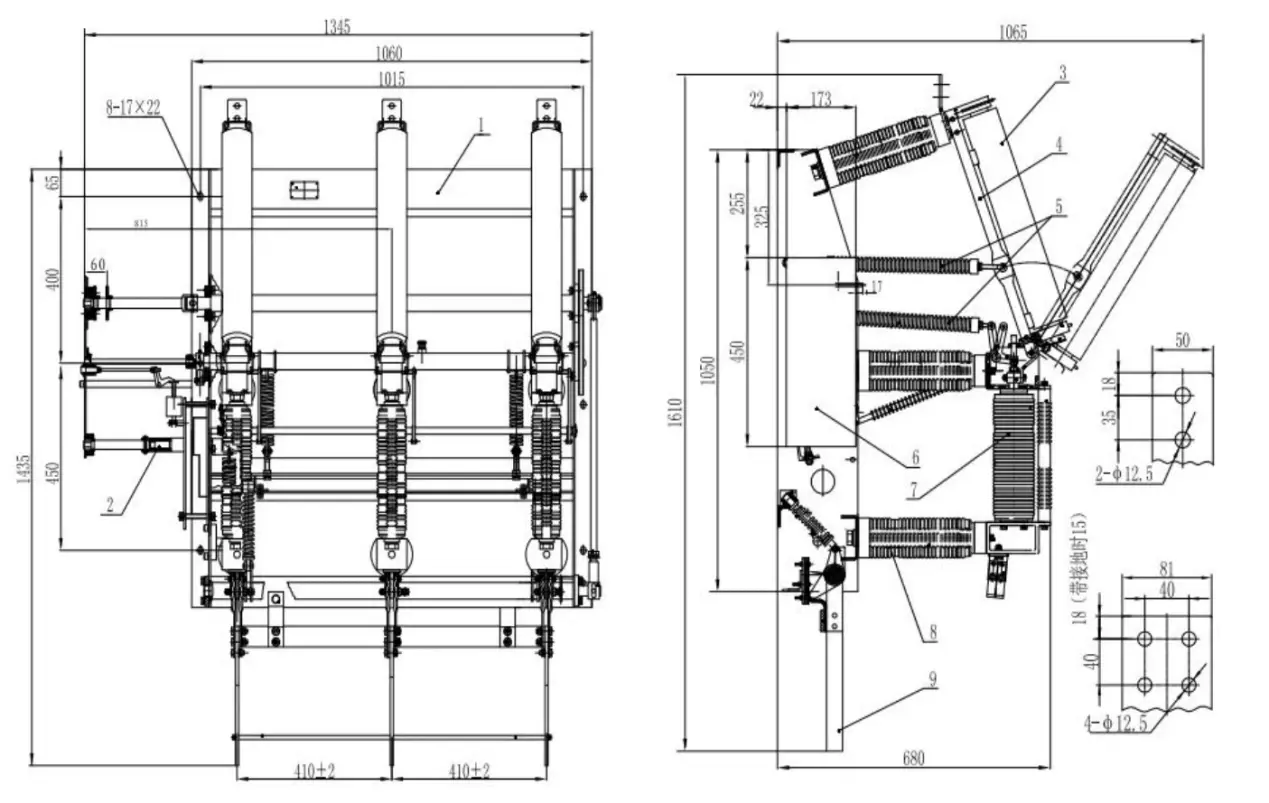

Outline structure and installation dimension drawing
(front/side installation and left operation)
Frame 2. Spring operating mechanism 3. Fuse 4. Isolating switch
5. Insulated pull rod 6. Operation panel 7. Vacuum interrupter
8. Post insulator 9. Grounding switch
