Ⅰ. Product Overview:

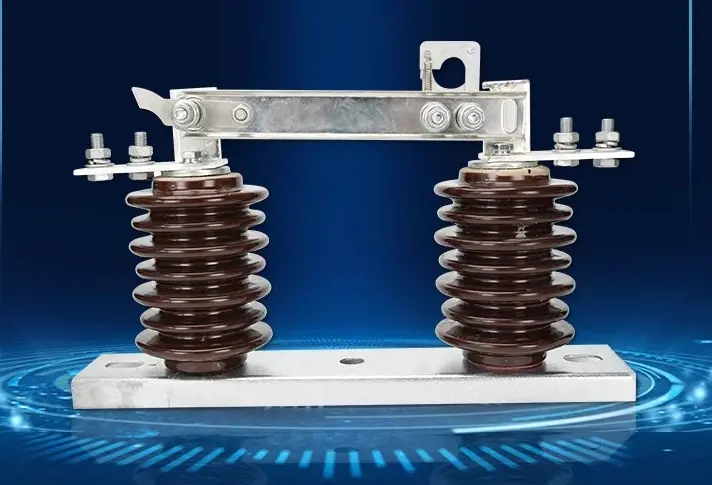

GW9-12/630A outdoor High Voltage isolation switch (line) is a kind of isolation switch, which is suitable for outdoor substations of urban network and rural network, and can also be used in various transformer distribution stations of industrial enterprises.
Ⅱ. Product Features:
Robust construction ensures durability and longevity.
High voltage isolation capability for enhanced safety.
Precision engineering for reliable performance in demanding environments.
Easy installation and maintenance, reducing downtime.
Weatherproof design suitable for outdoor applications.
Compatible with various voltage systems for versatility.
Ⅲ. Product Applications:
Power distribution networks
Industrial plants
Railway electrification
Renewable energy installations
Urban infrastructure development
Emergency power systems
Ⅳ. Product Specifications:
Ⅴ. Specifications：

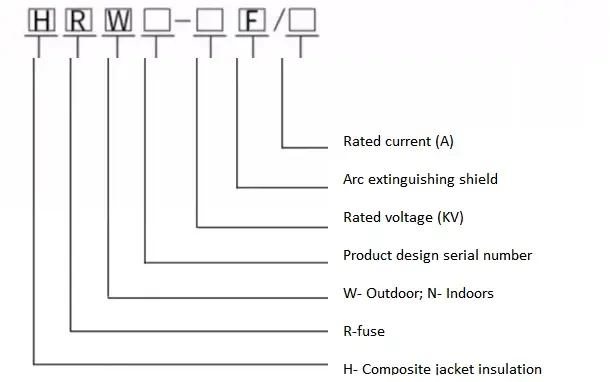

Model's meanings:
Types:
|
Specifications |
Rated voltage |
Rated Current |
Poles |
Insulator type |
|
GW-10/200A (old type) |
12 |
200 |
3 |
ceramic |
|
GW-10/400A (old type) |
12 |
400 |
3 |
ceramic |
|
GW-10/630A (old type) |
12 |
630 |
3 |
ceramic |
|
GW-10/400A (new type) |
12 |
400 |
3 |
ceramic |
|
GW-10/630A (new type) |
12 |
630 |
3 |
ceramic |
|
GW-10/1250A (new type) |
12 |
1250 |
3 |
ceramic |
|
GW-10/1250A (old type) |
12 |
1250 |
3 |
ceramic |
Ⅵ. Product Parameters:
|
Parameters |
Value |
|
Rated Voltage |
12kV |
|
Rated Current |
630A |
|
Rated Frequency |
50/60Hz |
|
Mechanical Life |
10000 times |
|
Rated Short-Time Withstand Current |
20kA (3s) |
|
Rated Peak Withstand Current |
50kA |
|
Creepage distance |
300-380MM |

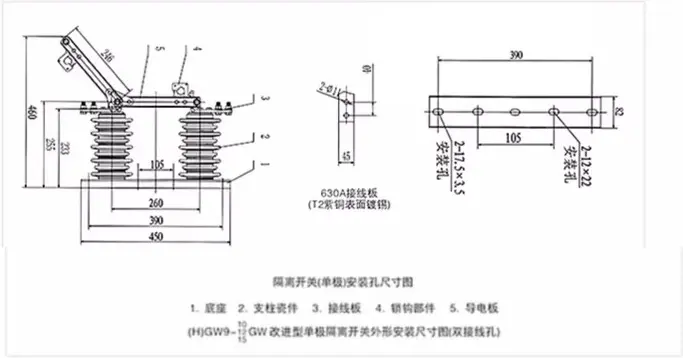

Ⅶ . Drawings:
Ⅷ. Advantages:
Ceramic material: Our products are made of ceramic insulators, which are not easy to age and durable;
New type of contacts: Our products use a new process silver brazed contacts, low contact resistance and good electrical conductivity;
Convenient: The product can be installed on the pillar, wall, ceiling, cross frame or metal frame, so it is easy to install.
OEM/ODM Services:
Shaanxi Yuguang Electric Co., Ltd. offers comprehensive OEM and ODM services, providing tailored solutions to meet your specific requirements. With our expertise and manufacturing capabilities, we can support private labeling and customization to align with your brand and specifications.
Certifications:
Our products are certified to meet industry standards, including:
- 3C certification
- ISO9001 certification
- 21 utility model patents and design patents
Why Choose Us:
- State-of-the-art production equipment and testing facilities.
- Extensive portfolio of utility model patents and design patents.
- Stringent quality control measures ensure product reliability.
- ISO9001 quality management system certification.
- One-year warranty for quality assurance.
- Annual production capacity of various electrical components.
FAQ:
-
Q: What is the warranty period for the isolating switch? A: We provide a one-year warranty for our products.
-
Q: Can you customize the isolating switch according to our requirements? A: Yes, we offer OEM and ODM services to meet your specific needs.
-
Q: Are your products certified? A: Yes, our products are certified to meet industry standards.
-
Q: What is the lead time for orders? A: The lead time depends on the order quantity and customization requirements.
-
Q: Do you provide technical support? A: Yes, we offer technical support for installation and maintenance.
Packaging:
- Wooden box packaging
- Carton packaging
- Foam padding packaging
- Waterproof and moisture-proof packaging
- Customized packaging
- Packaging compliant with international standards
Logistics:
- Sea freight
- Air freight
- Land transportation
- Multimodal transportation
- Express delivery services
Contact Us:
Ready to elevate your high voltage solutions? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd.
With our dedication to quality and customer satisfaction, we look forward to serving you.
