Product Introduction
Welcome to Shaanxi Yuguang Electric Co., Ltd.'s product page for our 24kV Pneumatic Type Load Break Switch (LBS). As a leading supplier in the industry, we take pride in offering high-quality electrical products that meet the diverse needs of our global customers.
Product Overview
Our 24kV Pneumatic Type Load Break Switch (LBS) is designed to provide reliable performance in medium-voltage power distribution systems. With its advanced pneumatic mechanism, this switch offers seamless operation and precise control, ensuring the safety and efficiency of your electrical networks.
Product Basic Parameters
Below are the specifications of our 24kV Pneumatic Type Load Break Switch (LBS):
Main technical data
|
No. |
Parameter |
Unit |
Data |
||||
|
YGFKN12A-24D |
YGFKRN12A-24D |
||||||
|
1 |
Rated voltage |
kv |
24 |
24 |
|||
|
2 |
Rated frequency |
Hz |
50 |
50 |
|||
|
3 |
Rated current |
A |
630 |
125 |
|||
|
4 |
Rated insulating level |
|
Ground, Interphase |
kv |
65 |
65 |
|
|
Isolation break |
79 |
79 |
|||||
|
Lightning impulse withstand voltage(peak) |
Ground, interphase |
125 |
125 |
||||
|
Isolation break |
145 |
145 |
|||||
|
5 |
Rated short-time withstand current |
Load switch |
KA |
|
- |
||
|
Ground switch |
20 |
||||||
|
6 |
Rated short-circuit duration |
Load switch |
S |
4 |
- |
||
|
Ground switch |
2 |
||||||
|
7 |
Rated-short-circuit making current (peak) |
kA |
50 |
- |
|||
|
8 |
Rated breaking current |
Active load breaking current |
A |
630 |
- |
||
|
Closed-loop breaking current |
630 |
- |
|||||
|
5% active load breaking current |
31.5 |
- |
|||||
|
Cable charging current |
10 |
- |
|||||
|
Open no-load transformer capacity |
KVA |
1250 |
|||||
|
9 |
Rated short-circuit breaking current( Current limiting fuse) |
kA |
- |
31.5 |
|||
|
10 |
Rated transfer current |
A |
- |
1200 |
|||
|
11 |
Mechanical endurance |
times |
2000 |
2000 |
|||
|
12 |
Fuse impactor output energy |
J |
- |
1+0.5 |
|||
|
13 |
Fuse type |
|
SFLAJ-24,SDLAJ-24 |
||||
Product Features
- Reliability: Our load break switch is built to withstand harsh operating conditions, ensuring uninterrupted power distribution.
- Safety: With its robust construction and reliable performance, our switch enhances the safety of your electrical systems.
- Remote Operation: The pneumatic mechanism enables remote operation, providing convenience and flexibility in system management.
- Versatility: Suitable for various applications, our switch offers versatility in medium-voltage power distribution networks.
- Easy Installation: Designed for easy installation and maintenance, our switch minimizes downtime and reduces operational costs.
Product Applications
- Power Distribution Networks: Our load break switch is ideal for use in medium-voltage power distribution networks, ensuring efficient and reliable operation.
- Industrial Facilities: From manufacturing plants to commercial complexes, our switch caters to the diverse needs of industrial applications.
- Renewable Energy: With the growing emphasis on renewable energy sources, our switch plays a crucial role in integrating renewable power into existing grids.
- Smart Grids: As utilities transition to smart grid technologies, our switch provides the necessary functionality for modern grid management.
OEM/ODM Services
At Shaanxi Yuguang Electric Co., Ltd., we offer comprehensive OEM/ODM services to meet the specific requirements of our customers. Whether you need custom branding or tailored product designs, we are committed to delivering solutions that exceed your expectations.
Certificates
We are proud to hold the following certifications and patents:
- 3C Certification
- ISO9001 Certification
- 21 Utility Model Patents
- Design Patents
Why Choose Us
- State-of-the-Art Facilities: With 14 production and testing facilities, we ensure the highest quality standards in every product we deliver.
- Extensive Patent Portfolio: Our 21 utility model patents demonstrate our commitment to innovation and technological advancement.
- Quality Assurance: We adhere to strict quality control measures, including ISO9001 quality management system certification and a comprehensive product testing process.
- Customer Satisfaction: We offer a one-year quality guarantee on all our products, providing peace of mind to our customers worldwide.
FAQ
-
Q: What is the lead time for product delivery? A: The lead time depends on the order quantity and customization requirements. Please contact our sales team for specific timelines.
-
Q: Can the load break switch be customized according to our specifications? A: Yes, we offer OEM/ODM services to tailor the product to your exact requirements.
-
Q: Are your products compliant with international standards? A: Yes, our products meet the highest quality and safety standards, including 3C and ISO certifications.
-
Q: What is the warranty period for your products? A: We provide a one-year warranty on all our products, ensuring reliable performance and customer satisfaction.
-
Q: Do you offer technical support and after-sales service? A: Absolutely, our dedicated technical support team is available to assist you with any inquiries or issues you may encounter.
Logistics & Packaging
Packaging:
- Wooden Box Packaging
- Carton Packaging
- Foam Fill Packaging
- Waterproof Packaging
- Customized Packaging
Logistics:
- Sea Freight
- Air Freight
- Land Transportation
- Multimodal Transportation
- Express Services
Contact Us
Ready to experience the superior quality and reliability of our 24kV Pneumatic Type Load Break Switch (LBS)? Contact us today at ygvcb@hotmail.com and join hands with Shaanxi Yuguang Electric Co., Ltd. for all your electrical needs. Let's power a brighter future together!

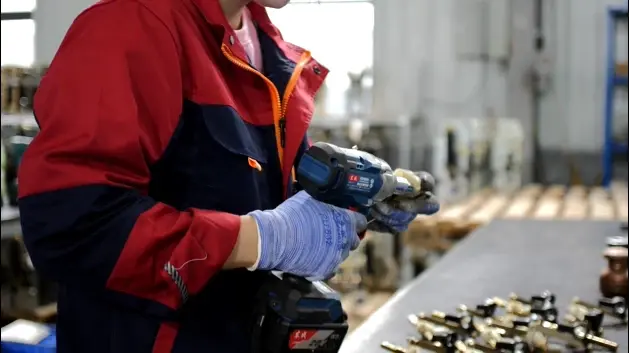

Workshop Assembly Site
OEM/ODM Services:
At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.
Certificates:
We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:
3C Certification
ISO 9001 Certification
21 Utility Model Patents and Design Patents
Why Choose Us:
State-of-the-art Manufacturing Equipment
Extensive Testing Facilities
Comprehensive Quality Assurance Processes
ISO 9001 Certified Quality Management System
One-year Warranty on All Products
Large Production Capacity
FAQ:
Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.
Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.
Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.
Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.
Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.
Packaging:
Wooden Box Packaging
Carton Packaging
Foam-filled Packaging
Waterproof and Moisture-proof Packaging
Customized Packaging
International Standard Packaging
Logistics:
Sea Freight
Air Freight
Land Transportation
Multimodal Transport
Express Delivery Services
Contact Us:
Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
