Ⅰ. Product Overview:
TGN30-12 rotary indoor high voltage isolation switch is a new type of rotary contact cutter isolation switch. The main structure is to fix two sets of insulators and contacts on the upper and lower planes of the three-phase common base frame. By rotating the contact cutter, the switch can be opened and closed.
GN30-12D switch is based on GN30-12 switch with ground knife form, can meet the needs of different power systems. This product has compact design, small space occupation, strong insulation ability, easy installation and adjustment, and its performance meets the requirements of GB1985-89 "AC high voltage isolation switch and ground switch", which is suitable for indoor systems with rated voltage of 10 kV AC 50Hz and below, as a voltage and no load, the circuit is used. It can be used with high voltage switchgear, or can be used alone.
Ⅱ. Model meaning
1. The altitude does not exceed 1000m;
2. Ambient air temperature: upper limit +40℃; Lower limit -10℃;
3. Relative humidity: the daily average is not more than 95%; The monthly average is not more than 90%;
4. Earthquake intensity does not exceed 8 degrees;
5. No serious dust, chemical corrosion and explosive substances.
6. Places without frequent violent vibration.
Ⅲ. Model's meaning:

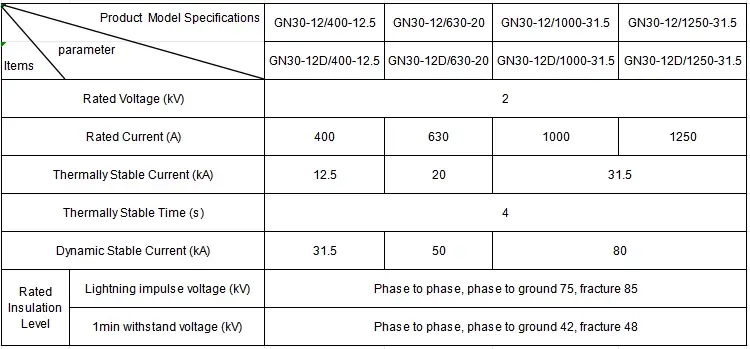

Ⅳ. Main technical parameters:
The main technical parameters as below:

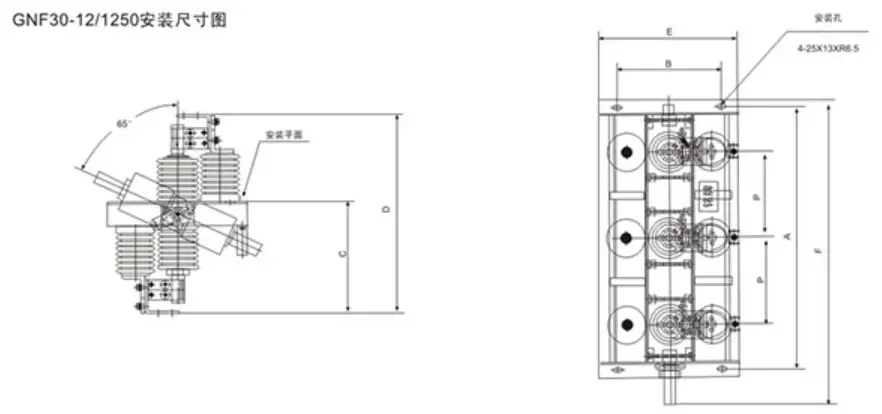

Ⅴ. Outline and mounting dimensions drawing:
Ⅵ. Advantages:
1. Stable performance and convenient operation;
2. Excellent material: thickened material, durable;
3. Meticulous process, multiple protection.
