Product Introduction

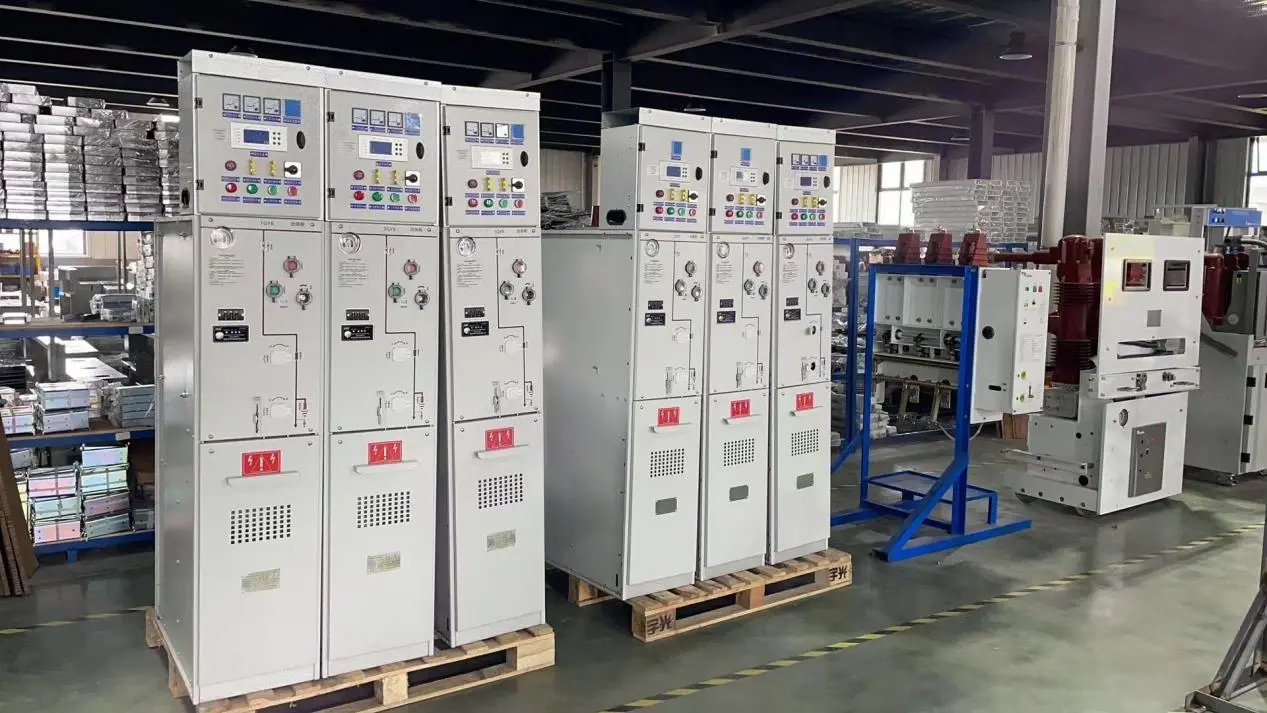

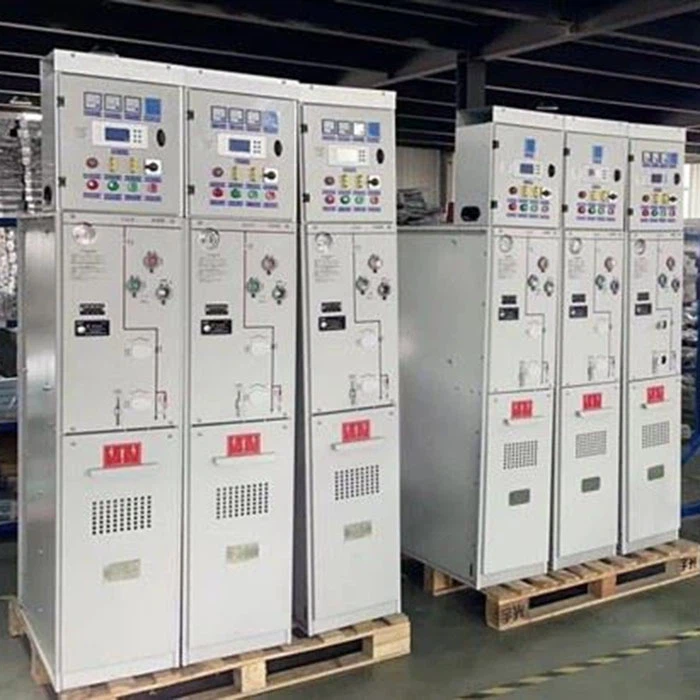

Switchgear XGNS2-40.5 includes a series of expandable SF6-insulated metal-clad switchgear at a voltage rating of 40.5kV. All live parts of the primary high-voltage circuit are wholly enclosed in a welded cabinet of 3mm-thickness stainless steel sheets, which gives a small volume. The switchgear is not subject to the influence of surrounding conditions so it guarantees safe and reliable running and zero maintenance. It can be integrated as a module by using a plug-in expansion busbar. Meet the requirements of end users or network nodes and satisfy various demands.
Product Basic Parameters
| Parameters | Values |
|---|---|
| Rated Voltage | 40.5 kV |
| Rated Current | 1250 A |
| Rated Frequency | 50/60 Hz |
| Rated Short-time Withstand Current | 31.5 kA |
| Rated Peak Withstand Current | 80 kA |
Note: Parameters are subject to customization according to specific project requirements.

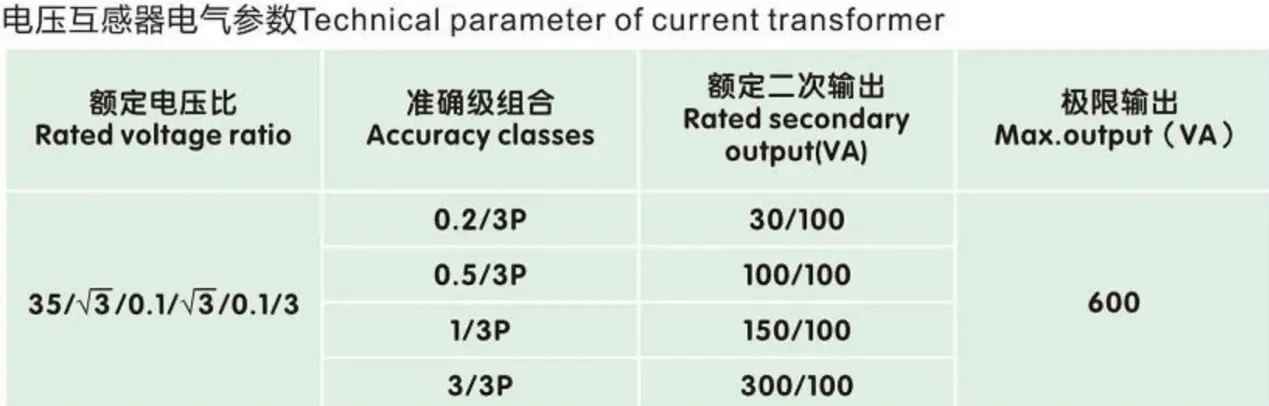

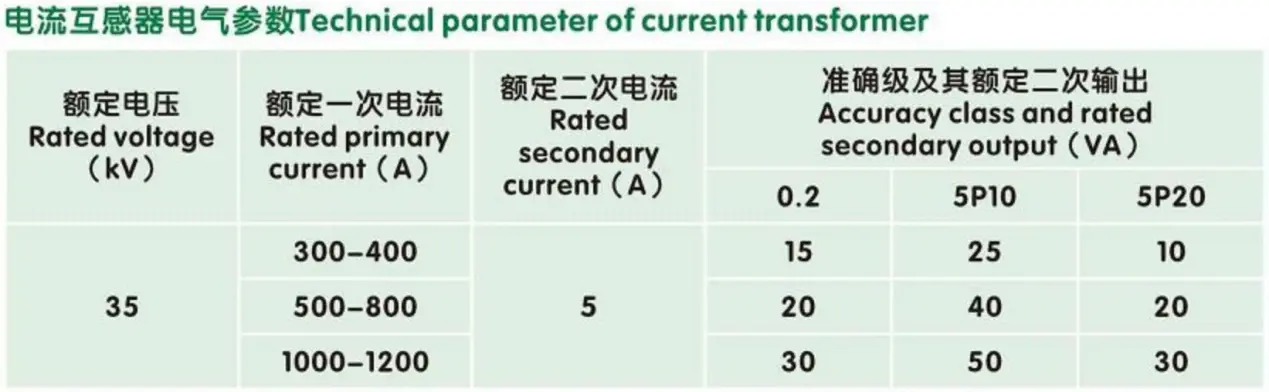

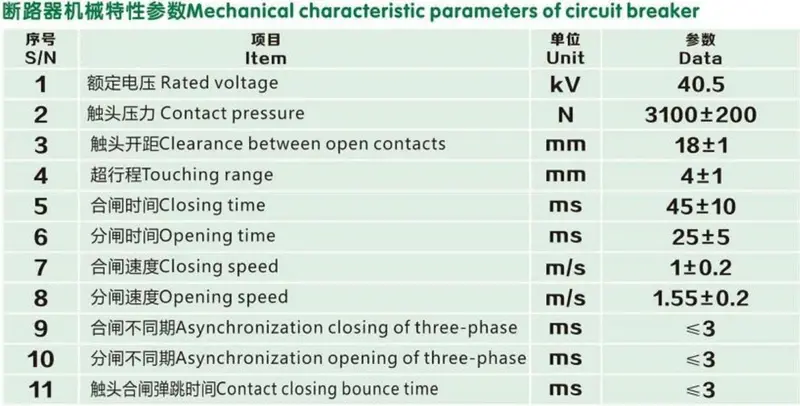

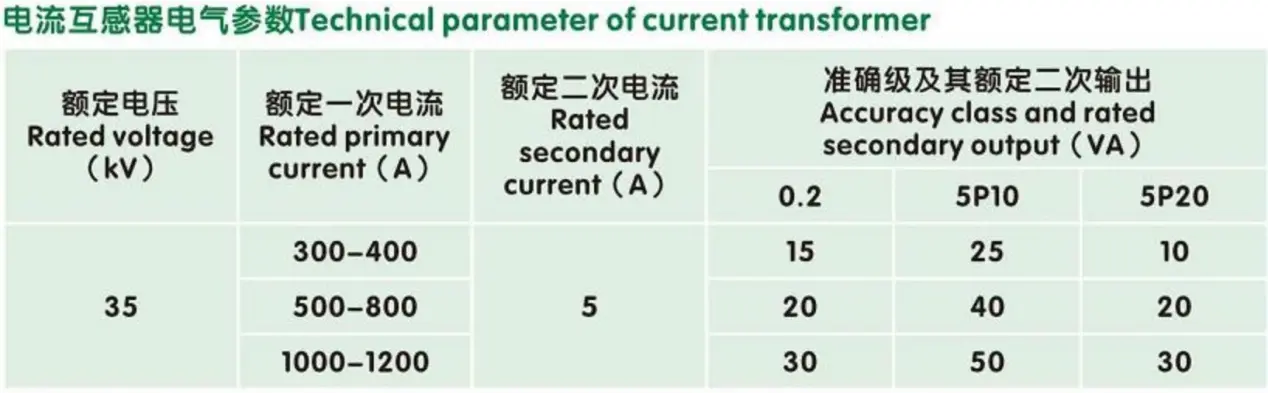

Technical requirements
4. Structure features

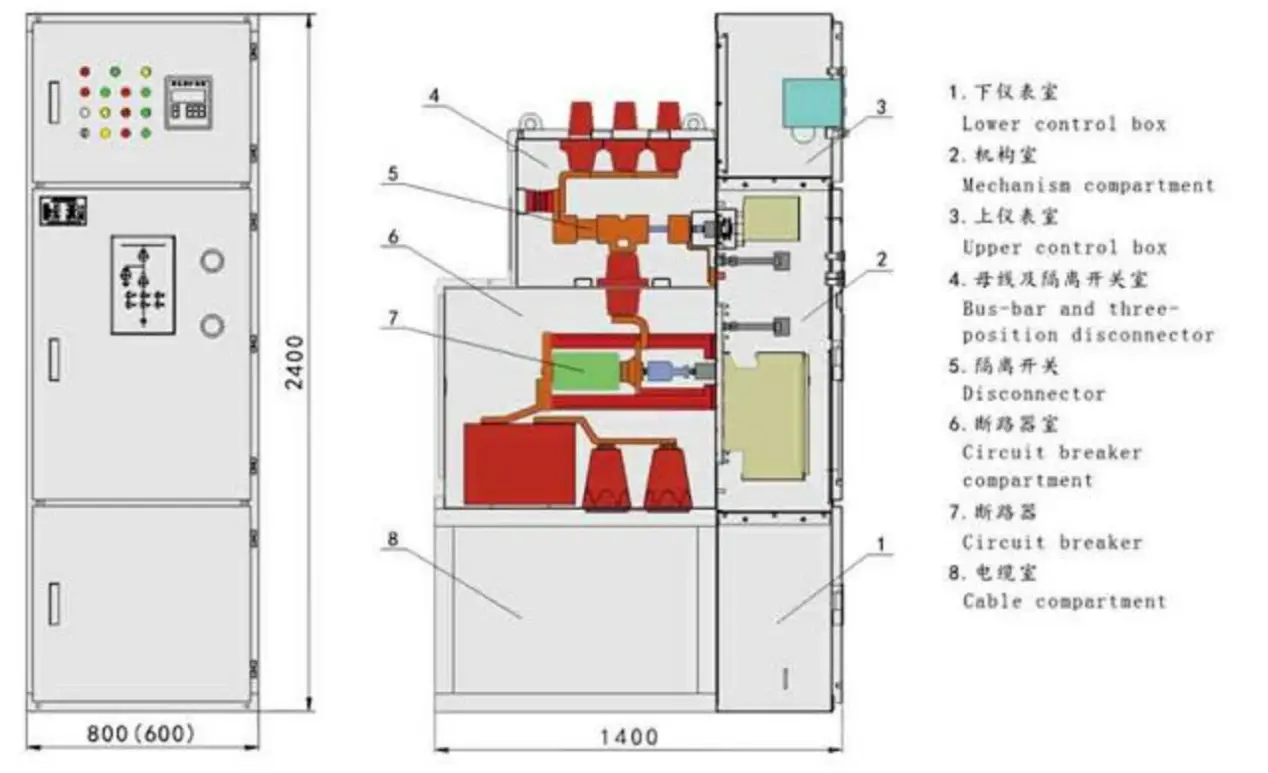

C-GIS is a whole modular assembly type structure, integrated machine of the typical plan is composed of six independent separated rooms, namely the busbar and three-position disconnector compartment, circuit breaker room, cable room, mechanism room, the up and down instrument room, which are easy to assemble. The high voltage partial gas box uses the mechanical hands automatic welding by the 3mm thick stainless steel plate after the numerical control machine tool processing, with small welding deformation and good air-tightness. The low voltage compartment is made of high-quality cold steel rolling that is bent by the numerical control machine tool, to weld, also uses a zinc steel plate coated with aluminium that is machined by the numerical control machine tool, and then connected by a high-strength fastener. Each gas box has independent gas leakage equipment to guarantee safeguard personal safety and equipment movement.
Product Features：
Advanced Insulation Technology: Our switchgear employs cutting-edge gas insulation technology, ensuring superior performance and safety in indoor applications.
Robust Metal-clad Design: The metal-clad construction provides enhanced protection and durability, making it suitable for harsh operating environments.
Compact and Space-saving: Despite its robust design, our switchgear is compact, optimizing valuable floor space in your facility.
Intelligent Monitoring System: Equipped with an intelligent monitoring system, it offers real-time insights into operational parameters, enabling proactive maintenance and troubleshooting.
Reliable Operation: With high-quality components and precision engineering, our switchgear ensures reliable operation, minimizing downtime and maintenance costs.
Product Applications
Power Distribution Networks: Ideal for medium-voltage power distribution networks in industrial plants, commercial buildings, and utility substations.
Renewable Energy Integration: Facilitates the integration of renewable energy sources such as solar and wind into the grid, ensuring efficient and stable power distribution.
Railway Electrification: Ensures safe and reliable electrification of railway systems, contributing to the modernization of transportation infrastructure.
Data Centers: Critical for ensuring uninterrupted power supply and protection of sensitive equipment in data centers, supporting the digital economy.
Product advantages：
A.Switchgear XGNS2-40.5 includes a series of expandable SF6-insulated metal-cald switchgear at voltage rating of 40.5kV.
B. All live parts of the primary high-voltage circuit are wholly enclosed in a welded cabinet of 3mm-thickness stainless steel sheets, which gives a small volume.
C. The switchgear is not subject to the influence of surrounding conditions so it guarantees safe and reliable running and zero maintenance.
D. It can be integrated as a module by using a plug-in expansion busbar. Meet the requirements of end users or network nodes and satisfy various demands.
Application:
This product is suitable for power plants, substations, box-type power stations, etc.
It is a three-phase indoor AC single bus or double bus power system with a rated frequency of 50/60Hz and a rated voltage of 40.5kV that controls, receives and distributes electric energy.
OEM/ODM Services:
At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. We offer comprehensive OEM/ODM services, allowing you to tailor our switchgear solutions to your specific requirements. Partner with us for seamless integration and maximum flexibility in your projects.
Certificates:
Our commitment to quality and compliance is evidenced by the following certifications and patents:
3C Certification
ISO9001 Certification
21 Utility Model Patents and Design Patents
Why Choose Us:
State-of-the-Art Facilities: With 14 manufacturing and testing facilities, we ensure unmatched production capacity and quality control.
Extensive Product Portfolio: We offer a comprehensive range of electrical products, supported by 21 utility model patents and design patents.
Stringent Quality Assurance: Our products undergo rigorous testing and inspection, adhering to ISO9001 quality assurance standards.
Customer Satisfaction Guarantee: We provide a one-year quality warranty and comprehensive after-sales support to ensure your peace of mind.
FAQ:
What is the lead time for orders?
Our lead time typically ranges from 4 to 8 weeks, depending on the order volume and customization requirements.
Do you offer technical support?
Yes, we provide comprehensive technical support to assist with installation, operation, and maintenance of our products.
Can you customize the switchgear according to our specifications?
Absolutely! We offer flexible customization options to meet your unique project requirements.
Are your products compliant with international standards?
Yes, our products are manufactured in compliance with relevant international standards and certifications.
Do you offer training for our personnel?
Yes, we provide training programs to ensure proper handling and maintenance of our switchgear systems.
