GGD Low Voltage Distribution Switchgear

GGD Low voltage Distribution switchgear

1. overview

GGD Iow VoItage distribution switchgear is suitabIe for AC, 50 Hz, 380 V rated voItage and 3150 A rated current power distribution systems for power pIants, transformer substations and industriaI & mining enterprises. It is used to transfer, distribute and controI eIectricaI energy for power, Iightning and power distribution equipment. It has many advantages, such as good breaking capacity & dynamic thermaI stabiIity, fIexibIe eIectricaI program, convenient assembIy, strong appIicabiIity, unique structure and high protection degree.

2. Model Description

Auxiliary circuit scheme code Main circuit scheme code

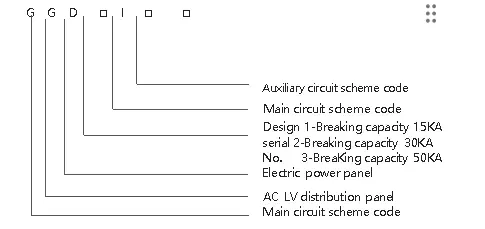

Design 1-Breaking capacity 15KA serial 2-Breaking capacity 30KA No. 3-BreaKing capacity 50KA Electric power panel

AC LV distribution panel Main circuit scheme code

3. Environmental Requirements

Normal Operation Conditions

1.Altitude ：≤ 2000m

2. Ambient temperature: -10℃ ~ +40℃ (temperature can be as Iow as -25℃ during transportation and storage)

3. Relative humidity: daily relative humidity < 95% on average; monthly relative humidity < 90% on average

4. seismic scale of earthquake < 8

5. The switchgear is applicable to category II contaminated environment.

Special Operation Conditions

If the switchgear will be used in conditions that exceed the normal environmental conditions, users shall negotiate with the manufacturer.

4. Technical Indicators of XGD Switchgear

5.Structure drawing

Fixed switchgear Drawer Incoming & Busbar cubicIe MCC CubicIe

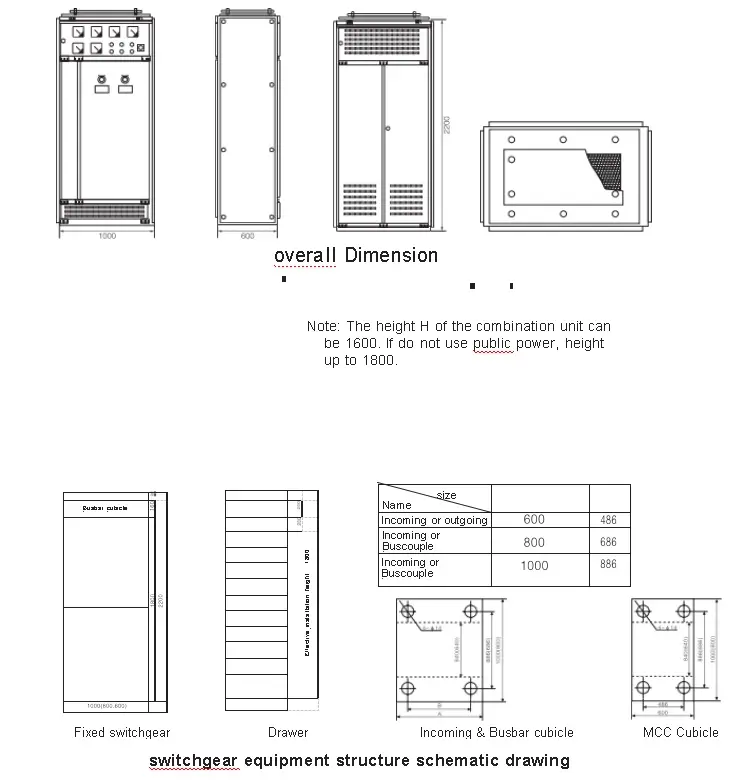

switchgear equipment structure schematic drawing
