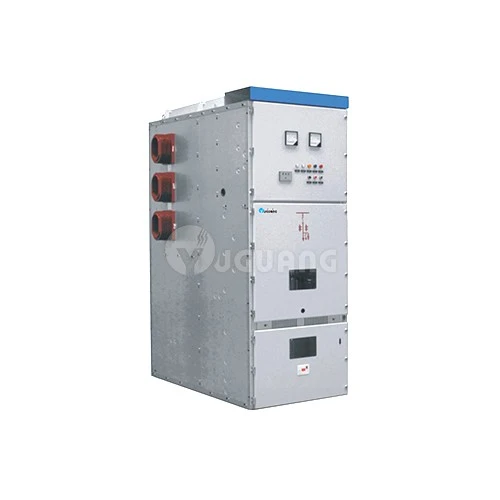

KYN28-24(Z) Armored AC Metal-Enclosed Switchgear Cabinet

Product Overview

KYN28-24 24KV Armored Removable AC Metal Enclosed Switchgear is suitable for a three-phase AC 50/60Hz power system, used to receive and distribute electrical energy, and to control, protect and detect circuits.

The switchgear has two structural forms: an armoured cabinet and a double busbar cabinet. It can be equipped with an SF6 circuit breaker, VD4-24 circuit breaker, ZN72-24 fully insulated vacuum circuit breaker, and the secondary circuit is equipped with advanced and reliable control and protection units. The product adopts APG epoxy casting and reliable solid fully insulated busbar technology for full insulation design.

It has good electric field distribution measures. It is a miniaturized switchgear with advanced technology, stable performance, reasonable structure, convenient use, safety and reliability.

Standards compliant:

GB3906-2006 "3～35kV AC metal-enclosed switchgear"

GB11022-89 "General Technical Conditions for High Voltage Switchgear"

IEC298 (1009) "AC metal-closed switchgear and control equipment with rated voltage above 1kV and below 50kv"

DL404-91 "Technical Conditions for Ordering Indoor AC High Voltage Switchgear"

Structural features:

The KYN28-24 cabinet is divided into four separate compartments, the protection level of the shell is IP4X, and the protection level is IP2X when the door of each compartment and the circuit breaker room are opened.

It has overhead inlet and outlet lines, cable inlet and outlet lines and other functional schemes. After arrangement and combination, it can become a power distribution device in various schemes.

The shell of this switchgear is made of imported aluminium-zinc coated sheet steel, which is processed by CNC machine tools and adopts multiple folding processes so that the entire cabinet not only has high precision, strong corrosion resistance and oxidation resistance but also adopts multiple folding methods.

The edge technology makes the cabinet lighter in weight, higher in mechanical strength and more beautiful than other similar equipment cabinets. The cabinet adopts an assembled structure, which is connected by rivet nuts and high-strength bolts. In this way, the processing and production cycle is shortened, the parts are versatile, the floor space is reduced, and the production is easy to organize.

Features

1. The busbar adopts heat-shrinkable insulating material or epoxy-coated insulating means to optimize the electrode shape so that the cabinet structure is compact and the floor space is reduced.

2. The cabinet is made of high-quality cold-rolled steel plates and imported aluminium-zinc coated plates, which are formed by CNC sheet metal processing and are connected by high-strength bolts, nuts and rivet nuts.

3. Insulation boards are installed in the busbar room, handcart room and cable room in the cabinet, and the insulation level is greatly improved.

4. Can be configured with domestic VS1-24 vacuum circuit breaker or Schneider's VH4 or Alstom FP series sulfur hexafluoride circuit breaker to meet the needs of different users.

5. The combined valve can be opened flexibly. As the circuit breaker is pulled out, the valve will be automatically closed and forced to lock, preventing the danger of accidentally touching high voltage.

6. The friendly man-machine interface makes the operation of the switch cabinet programmatic and formulaic, and the operator can see it at a glance.

The main wiring scheme can reach more than 160 kinds, and the structure has strong adaptability, which can meet the needs of different users

Use environmental conditions

1. Ambient temperature: maximum temperature +40℃, minimum temperature -10℃.
2. Environmental humidity: daily average relative humidity ≤ 95%, monthly average relative humidity ≤ 90%.
3. Altitude: below 1000m.
4. Earthquake resistance: the seismic intensity does not exceed 8 degrees.
5. The surrounding air should not be significantly polluted by corrosive combustible gas, water vapour, etc.
6. No frequent violent vibration places. Severity design for harsh conditions meets Class I requirements.
When using under the normal environmental conditions specified in GB3906, the user and our company shall negotiate
