Notes
.High-voltage AC vaccum contactor
.Designed code
.Rated voltage(kV)
.Latching mode:J-machanical latch; D-electrical latch
.G-high altitude; Y-movable type; None-basic type
General Description:
JCZ5-7.2,12/400,630 series vacuum contactor is used in an AC(50-60Hz) electric power system, with rated working voltage is 7.2Kv and 12kV, and rated current of 400A,630A, for direct or remote on-off control and circuit-breaking control of the main load.
It is especially suitable for frequently operated electric control applications such as electrical motors, transformers, etc. This series adopts an integrated framework, a before-and-after layout between the main circuit and the controlling circuit, electrical latch or mechanical latch, and a vacuum interrupter with a ceramic shell.
Main Specifications:
1. High-voltage AC vacuum contactor
2. Designed code
3. Rated voltage(kV)
4. Latching mode:J-mechanical latch; D-electrical latch
5. G-high altitude; Y-movable type; None-basic type
6. Rated current(A)
7. Rated short-time withstand current(kA)
8. Vaccum shell materials: T-ceramic

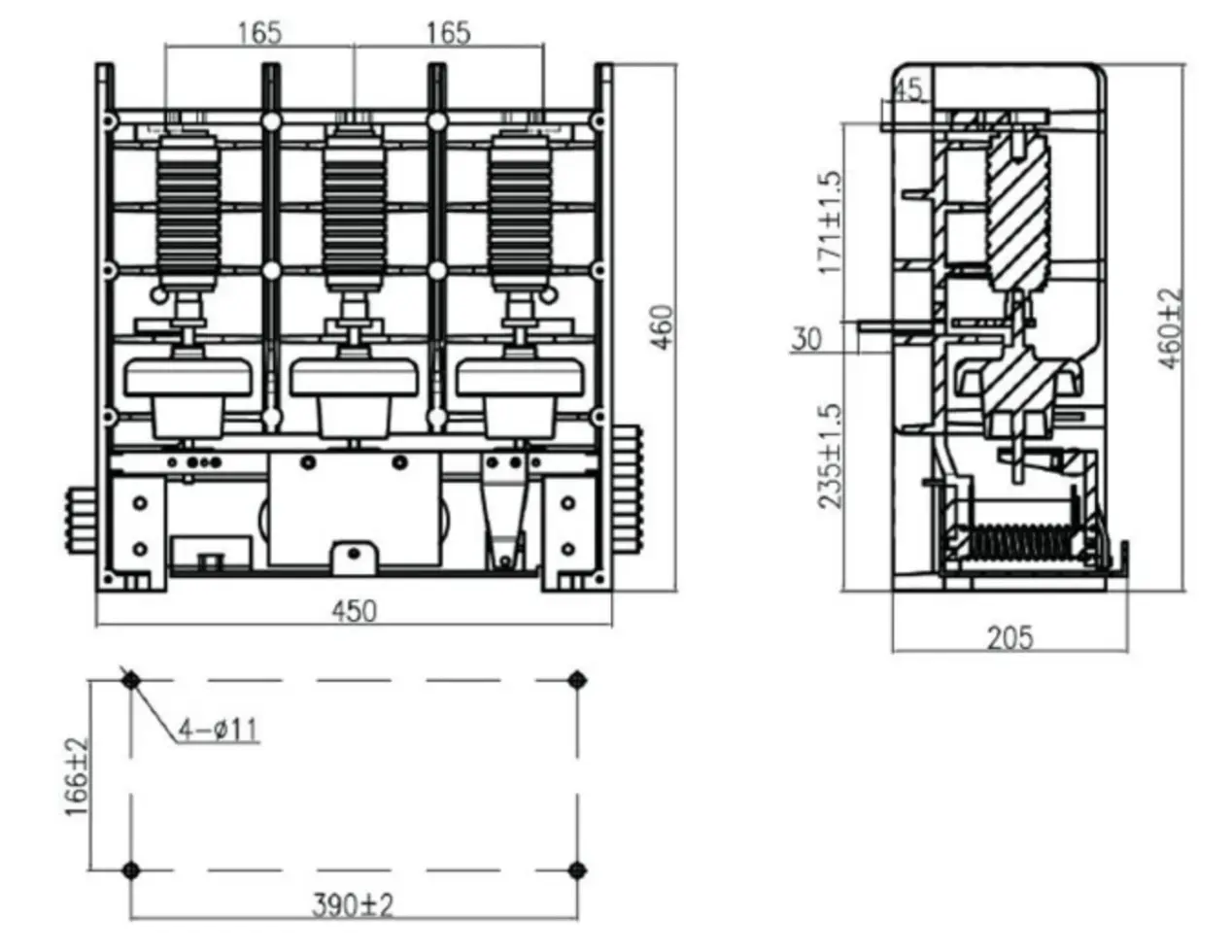

Technical Data:
|
NO. |
Parameters |
Unit |
Value |
||||||
|
JCZ5-7.5J/D-630/400/250 |
JVZ5-12J/D-630/400/250 |
||||||||
|
1 |
Rated Voltage |
kV |
7.2 |
12 |
|||||
|
2 |
Rated Current |
A |
630 |
400 |
250 |
630 |
400 |
250 |
|
|
3 |
Rated closing current (rms) |
A |
6300 |
4000 |
2500 |
6300 |
4000 |
2500 |
|
|
4 |
rated breaking current |
5040 |
3200 |
2500 |
5040 |
3200 |
2500 |
||
|
5 |
4S thermal current |
6300 |
4000 |
2500 |
6300 |
4000 |
2500 |
||
|
6 |
Limit breaking current |
6300 |
4000 |
2500 |
6300 |
4000 |
2500 |
||
|
7 |
Power frequency withstand voltage |
kV |
32 |
42 |
|||||
|
8 |
operating frequency |
Times/h |
300 |
||||||
|
9 |
Electric life time |
AC-3 |
×104 Times |
25 |
|||||
|
AC-4 |
10 |
||||||||
|
10 |
Mechanical life |
30 |
|||||||
|
11 |
Rated operating voltage |
V |
AC110/220 |
||||||
|
12 |
Closing coil pull current |
A |
≤ DC6/3 |
||||||
|
13 |
Holding coil holding current |
D:DC0.32/0.16 |
|||||||
|
14 |
Shunt trip coil current |
J:DC2.5/1.3 |
|||||||
|
NO. |
Parameters |
Unit |
Value |
||
|
JCZ5-7.2J/D-630/400/250 |
JCZ5-12J/D-630/400/250 |
||||
|
1 |
contact distance |
mm |
4.5+1.0/-0.5 |
6+1.0-0.5 |
|
|
2 |
contact overtravel |
1.5±0.5 |
|||
|
3 |
Average closing speed |
m/s |
0.1~0.25 |
||
|
4 |
Average opening speed |
0.3~0.6 |
|||
|
5 |
3.Phase closing opening period |
ms |
≤ 2 |
||
|
6 |
Closing time / opening time |
≤ 150/ ≤ 150 |
|||
|
7 |
Each phase conductive loop resistance(20℃) |
Ω |
≤ 250 |
||
