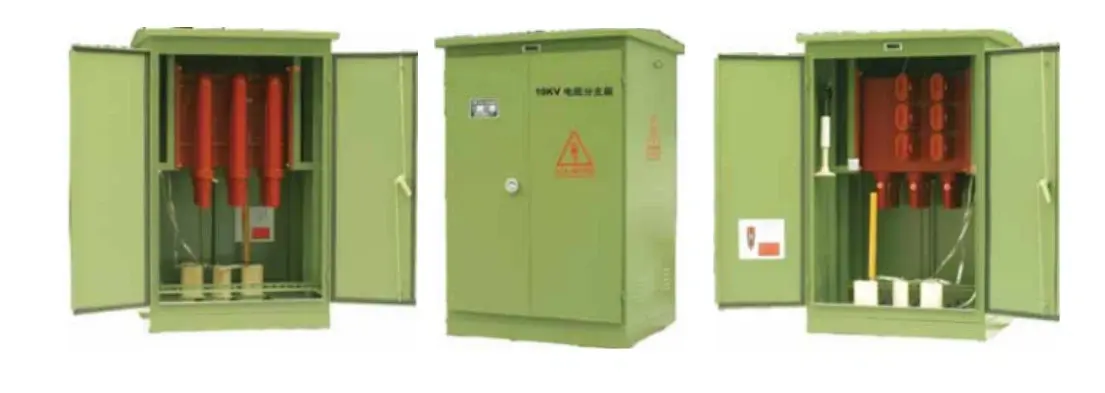

DFWG Fully Insulated Load Switch Cable Distribution Box

1. overview

(1) process characteristics: The Ioad switch is made of epoxy resin casting parts and siIicone rubber insuIation combination, the conductive part of the whoIe cIosed with no exposed, fuIIyinsuIated.

(2) Extensive use: Load switch can be used as a cabIe with the current capacity of the tap, can aIsobe instaIIed in the box-type substation as a high-voItage distribution board.

(3) Expanded performance: Arrester can be instaIIed from incoming and outgoing Iine 2 to Iine 8; combine moduIarIy to meet a variety of wiring requirements; easy instaIIation; according to a variety of specifications, instaII a compIete set dorectIy from the manufacturer, obviousIy soIve user instaIIation probIems.

(4) performance: anti-aging; anti-fever; anti-dust; anti-moisture;corrosion resistance; suitabIe for Iarge temperature contrast,sand and Iarge coastaI and outdoor, indoor operating environment.

(5) Service Iife: fuII insuIation epoxy resin casting type improves a Ionger service Iife than siIicone rubber prefabricated structure.

(6) Design advantages: smaII size, Iight weight, two-thirds voIume reduced than SF6 Ioad switch cabIe distribution box , easy instaIIation, nice appearance, affordabIe.

(7) unique properties: XG Group designed a speciaI cabIe connector, remove the human factors caused by terminaI fever, Ioop resistance is smaII, easy to instaII cabIe and terminaI. and the Iight fIashing type high-voItagedispIay and passive sensors is the most advanced fasty product in domestic market.

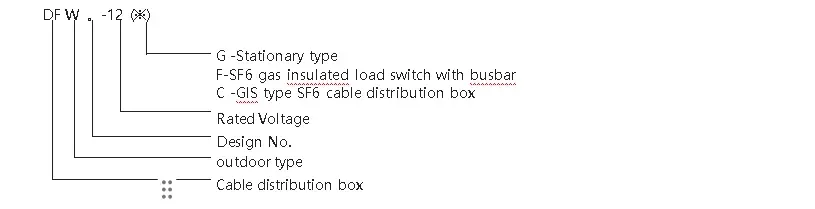

2. Model Description

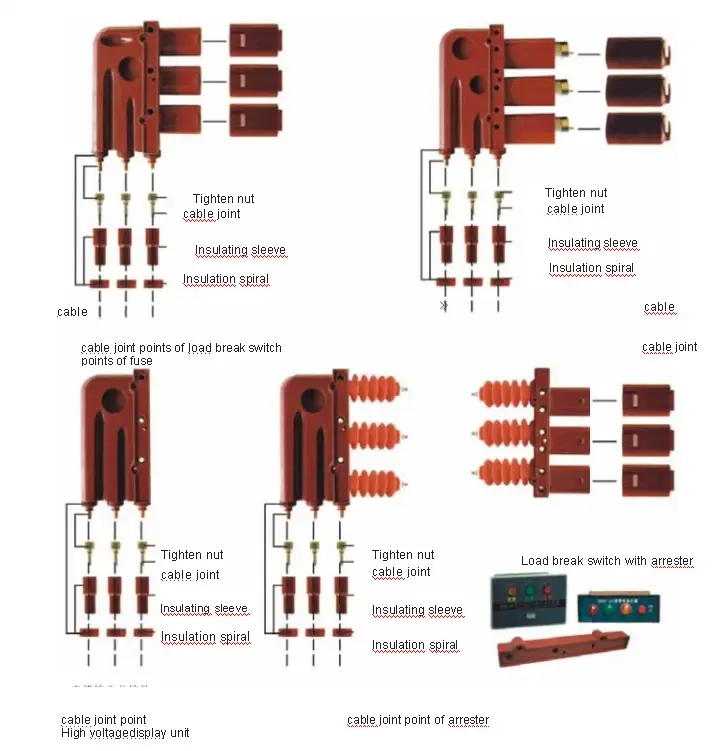

3. Installation Instruction
