Ⅰ. Overview:
An outdoor arrester with alternating current (AC) high voltage drop, commonly known as a surge arrester or lightning arrester, is a device designed to It is typically installed in outdoor settings, such as power distribution systems, to divert excessive electrical energy caused by lightning strikes or lightning damage. It is typically installed in outdoor settings, such as power distribution systems, to divert excessive electrical energy caused by lightning strikes or switching operations away from sensitive equipment.
Ⅱ. Production Type

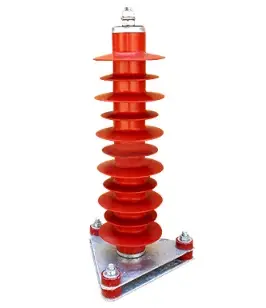

35kv lightning arrester HY5WZ-51/134 power station type pedestal type
Related models: HY5WZ-51/134,HY5WZ-42/134,HY5WZ-54/134,HY5CZ-42/124,HY5W-42/134,HY5W-51/134,YH5WZ-51/134,YH5WZ-42/134,YH5WZ-54/134,YH5CZ-42/134,YH5CZ-42/124,YH5CZ-42/134,YH5CZ-42/134,YH5CZ-42/124,YH5CZ-42/134 124,YH5W-42/134,YH5W-51/134 is used to protect the neutral point of transformer of corresponding voltage level from the damage of atmospheric over-voltage and operational over-voltage.
Ⅲ. Usage environment
The altitude is not more than 2000M;
The ambient temperature is not higher than +40°C and not lower than -40°C;
The frequency of power supply: 50HZ±2HZ and 60HZ±2HZ;
Seismic intensity does not exceed 7 degrees;
The maximum wind speed: 35M / S;
Free of cleaning conditions: moderately polluted and the following areas;
For non-gap products, the long-term application of the industrial frequency voltage shall not exceed the continuous operation of the arrester voltage;
For the gapped products, the installation of the point of the short-term industrial frequency voltage rise shall not exceed the lightning arrester rated electrical.
Note:Long-term use in the following abnormal conditions, lightning arrester needs to be specially made, should be specified when ordering:
The temperature or altitude exceeds the standard (plateau, tropical, frigid, fully enclosed cabinets, close to the furnace, etc.);
The use of the environment there is a serious moisture or corrosive gaseous impurities (water, salt, chemical plants, etc.);
Strong ultraviolet radiation (high plateau, strong sunshine areas, etc.);
The special heavy filth area (mine workings, Construction site working surface, etc.).

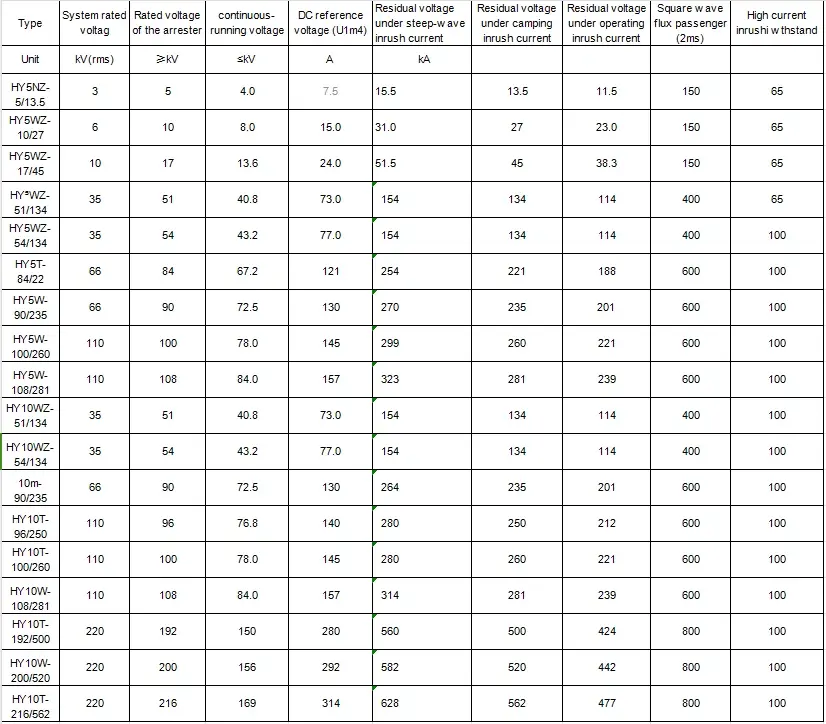

Ⅳ. Parameters:
The relevant parameters are as follows:
Ⅴ. Production Features:
1. Small size, light weight, convenient installation and transportation, so light and durable, flexible installation;
2. Superior performance, strong anti-fouling;
3. High quality material, beautiful appearance, meticulous workmanship.

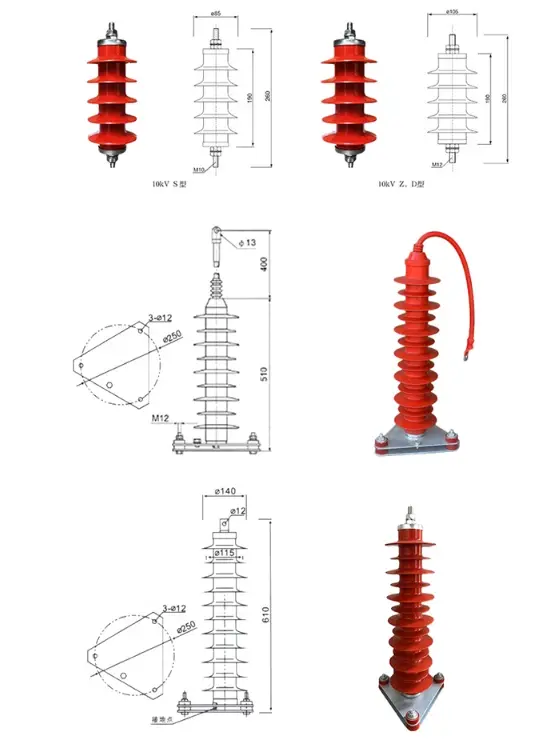

Ⅵ Production Drawings:
