15kV Detachable Cable Terminal

Characteristics:

1. Widely used in equipment cabinets with European-style standard bushings such as box-type transformers, box-type RMU, GIS and cable branch boxes.

2. Compact, light, safe, reliable and easy installation.

3. Tightly sealed, fully insulated, complete protection, maintenance free, anti-submerge and anti-dirtiness

Product Introduction:

Welcome to Shaanxi Yuguang Electric Co., Ltd., we will be your premier supplier of 15kV Detachable Cable Terminals. With a commitment to quality and innovation, we pride ourselves on delivering top-notch electrical products to meet the diverse needs of our global clientele.

Our 15kV Detachable Cable Terminals are engineered to excel in demanding electrical applications, offering unrivalled performance, durability, and safety. Designed and manufactured with precision, our terminals ensure reliable connectivity and efficient power transmission, making them an indispensable component in various electrical systems.

Product Basic Parameters:

Product Features

Adopt advanced post-injection technology.

Coat with a semi-conductive layer for shielding outside,

Special stress cone structure effectively disperses electric field stress and solves the electric field stress problem at the cut on the cable shielding layer.

Extensibility, easy to assemble and disassemble,

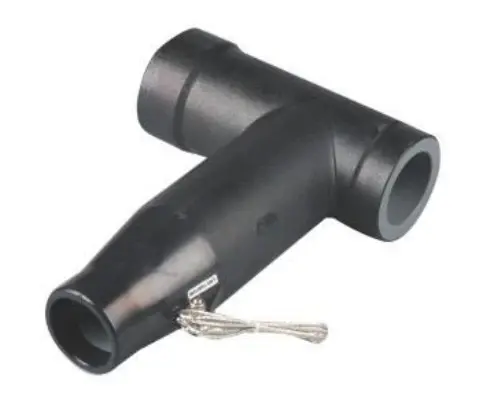

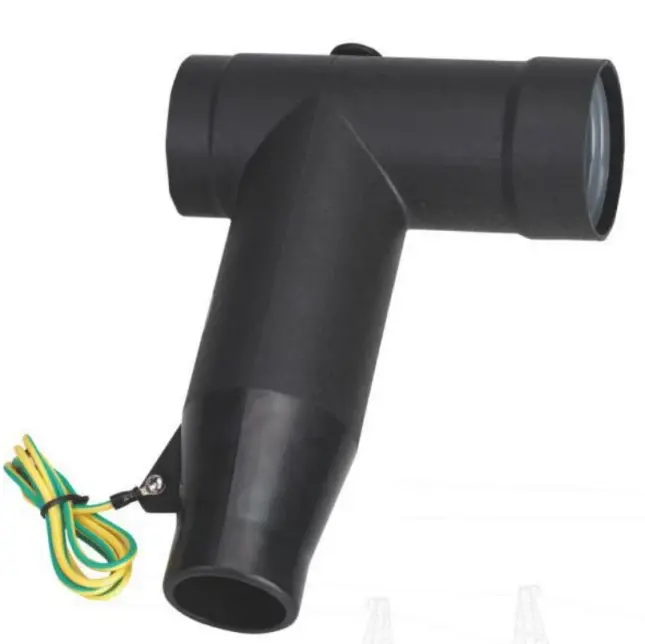

A T-shape cable connection is available.

Tightly sealed, fully insulated, complete protection, zero maintenance, anti-flooding and anti-pollution.

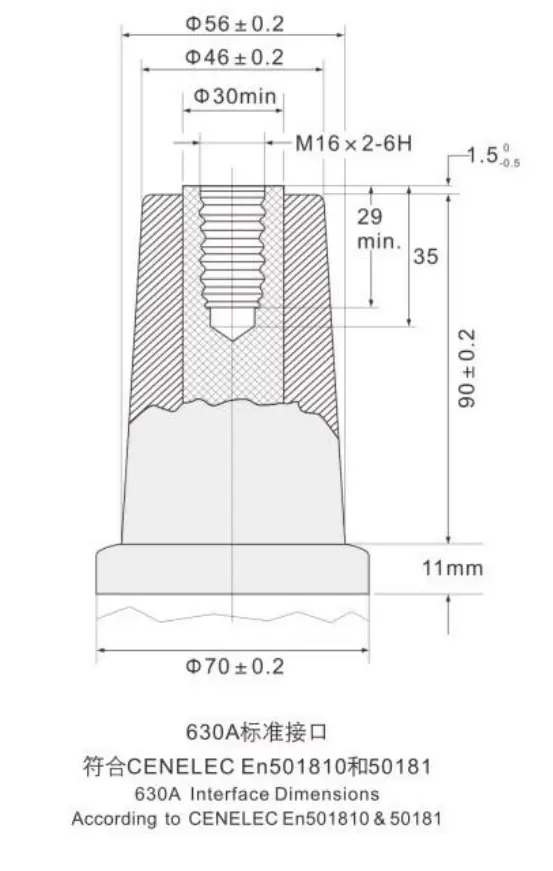

630A Interface Dimensions

According to CENELEC En501810&50181

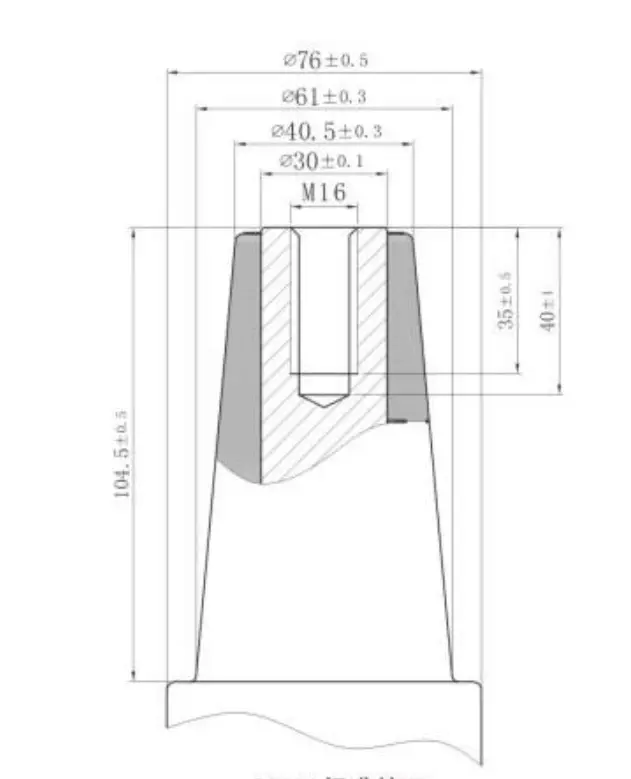

35kV Interface Dimensions

Accoring to IEEE386(in mm)

Implementation of Standards

DIN47636.7.1990Power cable with extension cones, separable sets of sleeves, dimensions of sleeves and separable couplings for Um up to 35 kV;

Exposed semiconductor jackets for high-voltage cable splices and separable insulated connectors;

Extruded insulated power cables and their accessories with rated voltages above 1 kV (Um = 1.2 kV) up to 30 kV (Um = 35 kV);

Test methods for accessories for power cables with rated voltages from 6 kV (Um = 7.2 kV) to 30 kV (Um = 35 kV);

Extruded insulated power cables and accessories with rated voltages from 1kV (Um = 1.2kV) to 35 kV (Um = 40.5kV) GB/T.

Insulation coordination of high-voltage transmission and distribution equipment GB311.1-1997;

Specification for high-voltage bushing; GB/T41.9-1999. GB11032-2010AC non-gap metal oxide surge arresters;

Power cables with extended cones - Partition sets of sleeves, dimensions of sleeves and separable connectors with Um below 35 kV.

Continuous Voltage Ratings

Current Ratings

OEM/ODM Services:

At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization in meeting unique customer requirements. As such, we offer comprehensive OEM and ODM services to support private labeling and tailored product development, ensuring seamless integration into your projects.

Certificates:

Our commitment to quality and compliance is demonstrated through our certifications, including 3C certification, ISO9001 certification, and a portfolio of 21 utility model patents and design patents.

Why Choose Us:

• State-of-the-Art Facilities: With 14 production lines and 14 testing equipment, we have the capability to deliver superior products with unmatched efficiency and precision.
• Technological Innovation: Our extensive patent portfolio underscores our dedication to innovation, driving continuous improvement and product excellence.
• Quality Assurance: Adhering to ISO9001 quality management standards, we implement rigorous quality control measures throughout the manufacturing process to ensure product reliability and performance.
• Customer Satisfaction: We stand behind our products with a one-year quality guarantee, providing peace of mind and assurance to our customers worldwide.

FAQ:

1. What is the maximum current capacity of your detachable cable terminals?
   • Our terminals are customizable to meet varying current requirements, ensuring compatibility with diverse applications.
2. Can your terminals withstand extreme temperatures?
   • Yes, our terminals are designed to operate reliably within a wide temperature range from -40°C to 90°C, making them suitable for diverse environments.
3. Do you offer customization options for terminal designs?
   • Absolutely, we provide tailored solutions to accommodate specific project needs, including custom designs, sizes, and configurations.
4. Are your products certified for safety and quality?
   • Yes, our terminals hold 3C certification and ISO9001 certification, ensuring compliance with rigorous standards for performance and reliability.
5. What is your lead time for product delivery?
   • Our lead time varies depending on order specifications and volume, but we strive to fulfill orders promptly to meet customer deadlines.

Logistics & Packaging:

• Packaging Options: We offer a range of packaging solutions, including wooden crates, cardboard boxes, foam padding, waterproof sealing, and custom packaging tailored to customer preferences and international standards.
• Logistics Services: From sea freight and air freight to land transportation and courier services, we provide flexible logistics options to ensure timely delivery to destinations worldwide.

Contact Us:

Ready to elevate your electrical projects with our premium detachable cable terminals? Contact Shaanxi Yuguang Electric Co., Ltd. today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities.

Unlock the power of reliability and innovation with our industry-leading solutions. We look forward to serving you!
