Product Introduction:
Welcome to Shaanxi Yuguang Electric Co., Ltd., your trusted supplier of 12kV VCB with Modular Mechanism and Embedded Pole. As a leading manufacturer in the electrical industry, we take pride in offering high-quality products tailored to meet your specific needs.
Our 12kV VCB with Modular Mechanism and Embedded Pole is engineered with precision and innovation to ensure reliable performance in various applications. With a focus on durability, efficiency, and safety, our product stands out as a preferred choice among discerning customers worldwide.

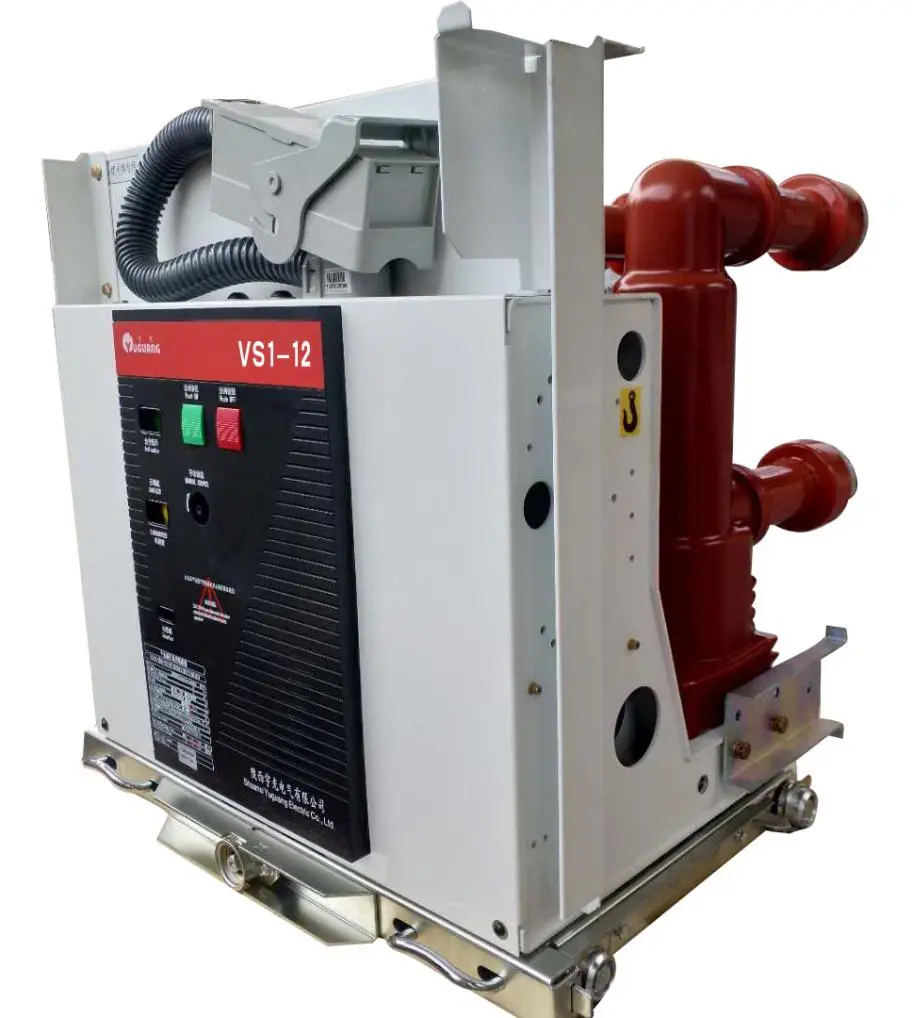

VSD-12P Series Vacuum Circuit Breaker
Rated voltage: 12kV
Rated current: 630A~4000A
Rated short-circuit breaking current: 20~50KA
Mechanical life: 20000 times/10000 times (≥40kA)
Breaking times of full capacity: 30 times (≤31.5kA)/20 times (40kA)/12 times (50kA)
The height above sea level: ≤1000m
Use embedded pole and modular VSH type operating mechanism: decreasing transmission link and convenient maintenance
Can be matched with KYN28 type switchgear and other switchgear of fixed type
Can be exchanged with other types of VCB which have same specification
Passed type test in the most authoritative organization in China

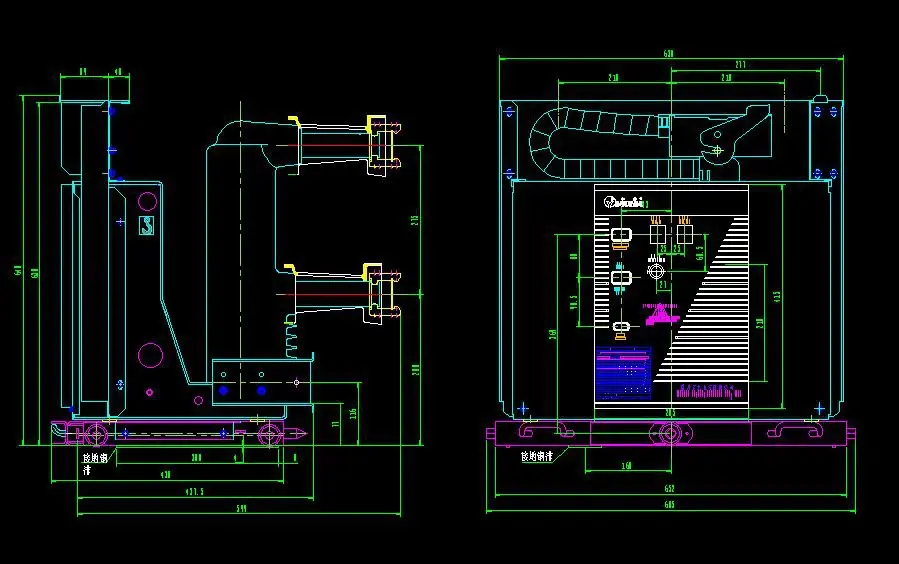

Can be matched with switchgear of 1000mm, 800mm, 650mm width
Pole distance: 275mm, 210mm, 150mm
Can be used at high altitude
Product Basic Parameters:
| Parameters | Specifications |
|---|---|
| Rated Voltage | 12kV |
| Rated Current | Customizable |
| Rated Frequency | 50/60Hz |
| Rated Short-circuit Current | Customizable |
| Operating Mechanism | Modular |
| Pole Type | Embedded |
| Insulation Medium | Vacuum |
| Mechanical Endurance | 10,000 operations |
| Electrical Endurance | 5,000 operations |
Product Features:
Modular Mechanism for Easy Maintenance
Embedded Pole Design for Compactness
High Voltage Interruption Capability
Enhanced Safety Features
Reliable Performance in Harsh Environments
Customizable Specifications Available
Product Applications:
Power Distribution Networks
Industrial Plants
Commercial Buildings
Renewable Energy Systems
Railway Electrification
Smart Grid Installations
OEM/ODM Services:
At Shaanxi Yuguang Electric Co., Ltd., we offer comprehensive OEM and ODM services to meet the diverse requirements of our clients. Whether you need customized branding or tailored product specifications, our team is dedicated to delivering solutions that exceed your expectations.
Certificates:
Our products are certified with:
3C Certification
ISO9001 Certification
21 Utility Model Patents
Design Patents
Why Choose Us:
State-of-the-art Manufacturing Equipment
Extensive Testing Facilities
Stringent Quality Control Processes
ISO9001 Quality Assurance System
One-year Warranty Policy
High Production Capacity
Wide Range of Product Offerings
FAQ:
What is the warranty period for your products?
We offer a one-year warranty for all our products.
Can you customize the product according to our specific requirements?
Yes, we provide customization services to meet your unique needs.
Are your products certified for international standards?
Yes, our products hold various certifications including 3C and ISO9001.
What is the lead time for bulk orders?
The lead time varies depending on the order quantity. Please contact us for details.
Do you offer after-sales support?
Yes, we provide comprehensive after-sales support to ensure customer satisfaction.
Packaging:
Our packaging options include:
Wooden Crates
Cardboard Boxes
Foam Padding
Waterproofing
Customized Packaging
International Standard Compliance
Logistics:
We offer a variety of shipping options:
Sea Freight
Air Freight
Land Transportation
Multimodal Transport
Express Delivery Services
Contact Us:
Ready to elevate your electrical solutions with Shaanxi Yuguang Electric Co., Ltd.? Contact us today at ygvcb@hotmail.com and let's discuss how we can collaborate to meet your needs.
With Shaanxi Yuguang Electric Co., Ltd., you're assured of superior quality, reliability, and unmatched customer service. Let's power up your projects together!
