Product Introduction:
Welcome to Shaanxi Yuguang Electric Co., Ltd., your trusted supplier of 24kV VCB with Modular Mechanism and Assembly Pole. With years of expertise in the electrical industry, we are proud to offer innovative solutions tailored to meet your specific needs.
24kV VCB With Modular Mechanism And Assembly Pole
Yuguang Electric is a professional manufacturer with 18 years of experience, with good reputation supplier and R&D of 24kv vcb with modular mechanism and assembly pole in China, welcome to contact us to inquiry further details about 24kv vcb with modular mechanism and assembly pole products from our factory and company.

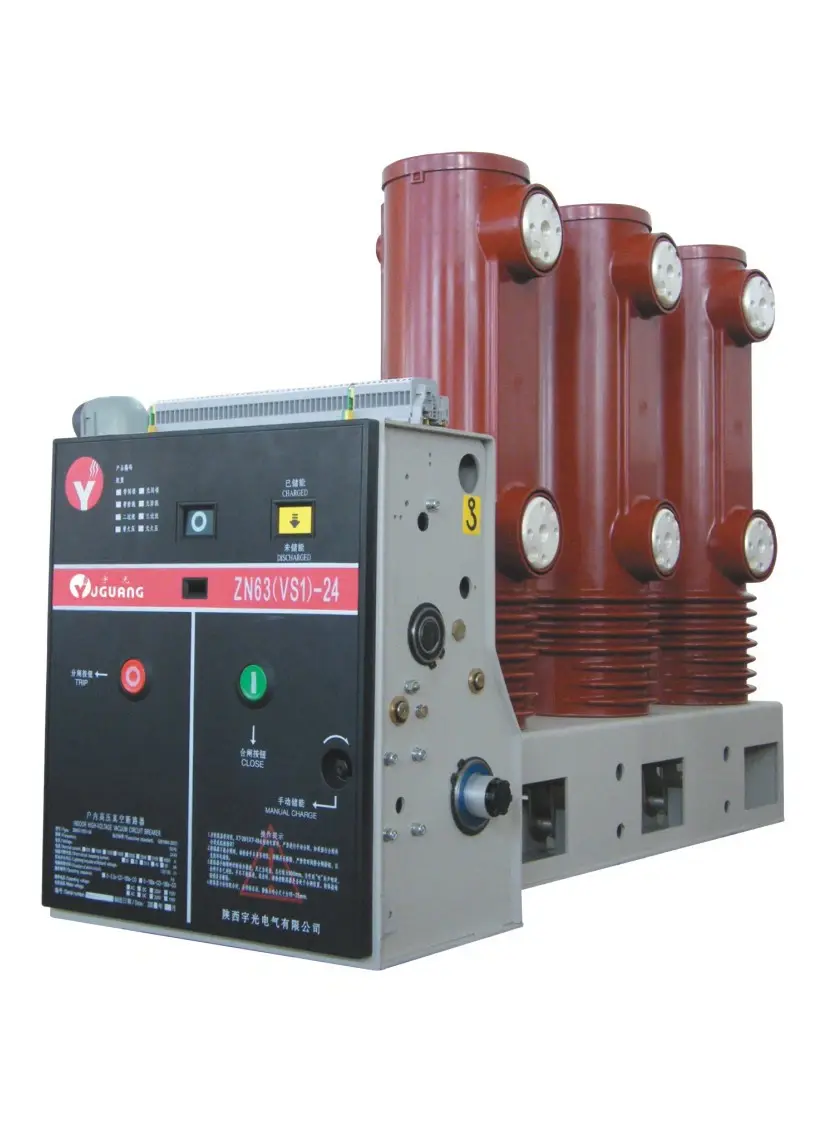

VSD-24P Series Vacuum Circuit Breaker
Rated voltage: 24kV
Rated current: 630A~3150A
Rated short-circuit breaking current: 20~50KA
Mechanical life: 20000 times/10000 times (≥40kA)
Breaking times of full capacity: 30 times (≤31.5kA)/20 times (40kA)/12 times (50kA)
The height above sea level: ≤2000m
Use embedded pole and traditional but reliable VS1 type operating mechanism
Main circuit use compound insulation
The performance meet C2/E2/M2 class
Can be matched with middle mounted switchgear and other switchgear of fixed type
Can be matched with switchgear of 1000mm width

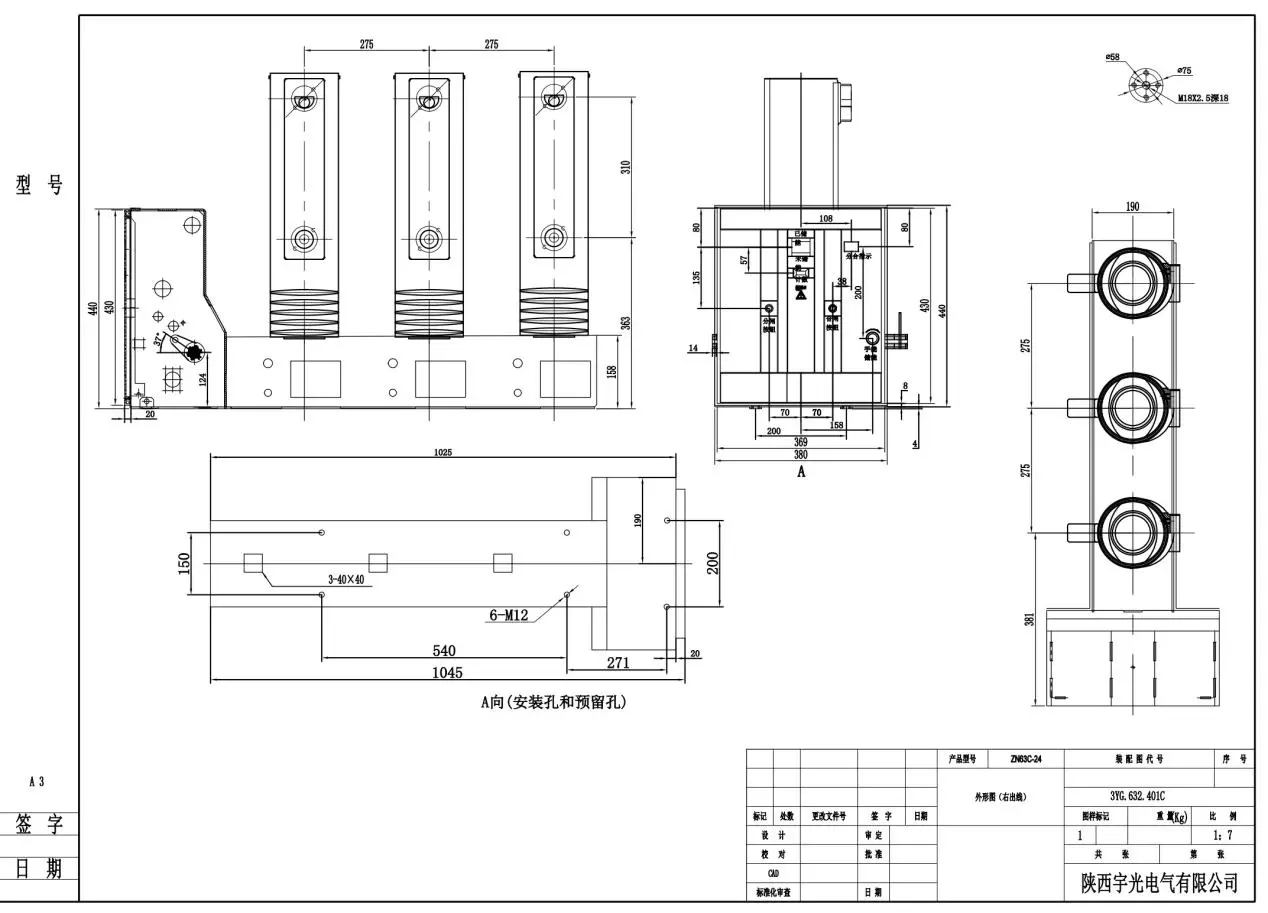

Pole distance: 275mm
Meet requirements of "Five Prevention
Product Overview:
Our 24kV VCB with Modular Mechanism and Assembly Pole is meticulously designed to ensure optimal performance and reliability in various applications. Featuring advanced technology and superior craftsmanship, our products are trusted by professionals worldwide for their durability and efficiency.
Product Basic Parameters:
| Parameter | Value |
|---|---|
| Rated Voltage | 24kV |
| Rated Current | Customizable |
| Rated Frequency | 50/60Hz |
| Mechanical Life | 10,000 operations |
| Electrical Life | 10,000 operations |
| Rated Short-time Current (3s) | Customizable |
| Rated Peak Withstand Current | Customizable |
| Rated Short-circuit Breaking Current | Customizable |
| Rated Operating Sequence | O-0.3s-CO-180s-CO |
Product Features:
Modular Mechanism for Easy Maintenance
Assembly Pole Design for Quick Installation
High Breaking Capacity
Reliable Performance in Harsh Environments
Advanced Protection Functions
Remote Monitoring Capability
Compact and Space-saving Design
Compliance with International Standards
Product Applications:
Power Distribution Networks
Industrial Plants
Commercial Buildings
Renewable Energy Systems
Railway Infrastructure
Urban Developments
In summary, a 24kV VCB with a modular mechanism and assembly pole offers flexibility, ease of maintenance, and reliable operation in medium-voltage electrical systems. Its modular design facilitates easy installation, maintenance, and expansion, while the assembly pole allows for quick replacement without dismantling the entire circuit breaker. With vacuum interruption technology, compact design, and safety features, it provides efficient interruption, space optimization, and enhanced safety in electrical applications.
OEM/ODM Services:
At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.
Certificates:
We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:
3C Certification
ISO 9001 Certification
21 Utility Model Patents and Design Patents
Why Choose Us:
State-of-the-art Manufacturing Equipment
Extensive Testing Facilities
Comprehensive Quality Assurance Processes
ISO 9001 Certified Quality Management System
One-year Warranty on All Products
Large Production Capacity
FAQ:
Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.
Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.
Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.
Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.
Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.
Packaging:
Wooden Box Packaging
Carton Packaging
Foam-filled Packaging
Waterproof and Moisture-proof Packaging
Customized Packaging
International Standard Packaging
Logistics:
Sea Freight
Air Freight
Land Transportation
Multimodal Transport
Express Delivery Services
Contact Us:
Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
