Top Extension Busbar Connector
Overview
The top extension connector applies to the 15kV equipment cabinet.
Easy to assemble and disassemble. Full sealed, full insulation, complete protection, maintenance free, anti-flood and anti-dirtiness.
The top extension dimensions could be modified to meet the customers' requirements for cabinet connections.
YG ELECRIC could customerize different types Top extension Busbar Connctor according to clients requirements as following.
Image as below:
15kV Top Extension Busbar Connector
shaped plug

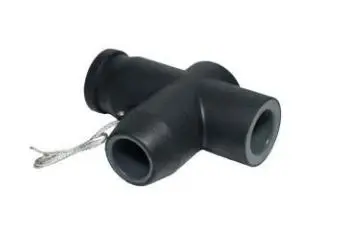

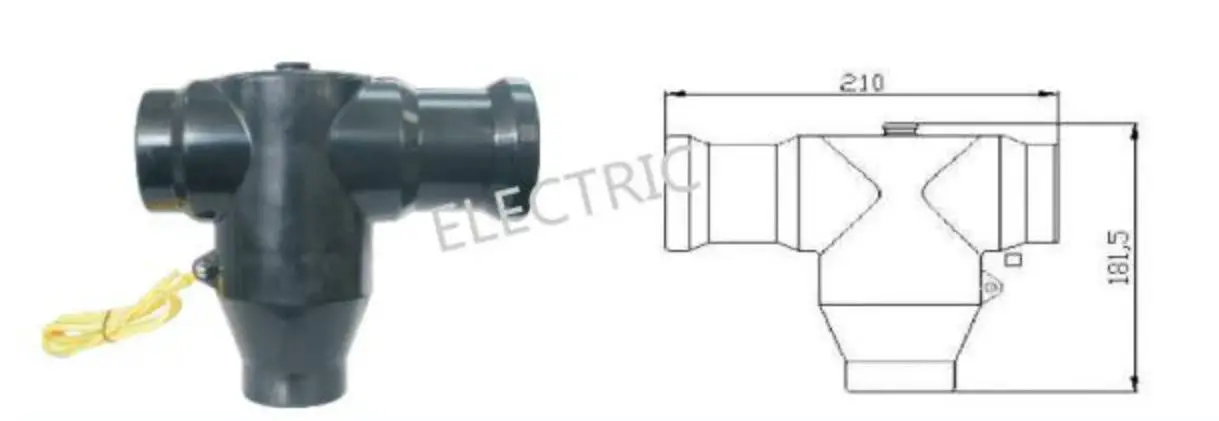

Model: A DJT-15/630A T-JOINT/Connector
Characteristics:
When combined with Type C bushings,a fully insulated and fully hermetically separable connections is provided.Unipolar,plug-in design.
Busbar from the round copper rod(tube)compostion,surface composite silicone rubber insulation.
Shielded busbar with no mimimum inter-phase distance requirements,free from pollution and condensate leakage.
Applications:
A:Connection with the swithgear casing can be achieved between multiple switchgear connetions.
B:System voltage: 8.7/15kV 12/20kV
C:Cotinuous rated current:630A/1250A

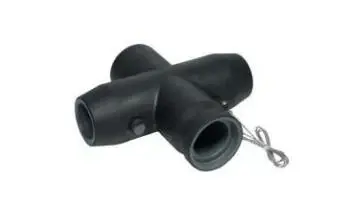

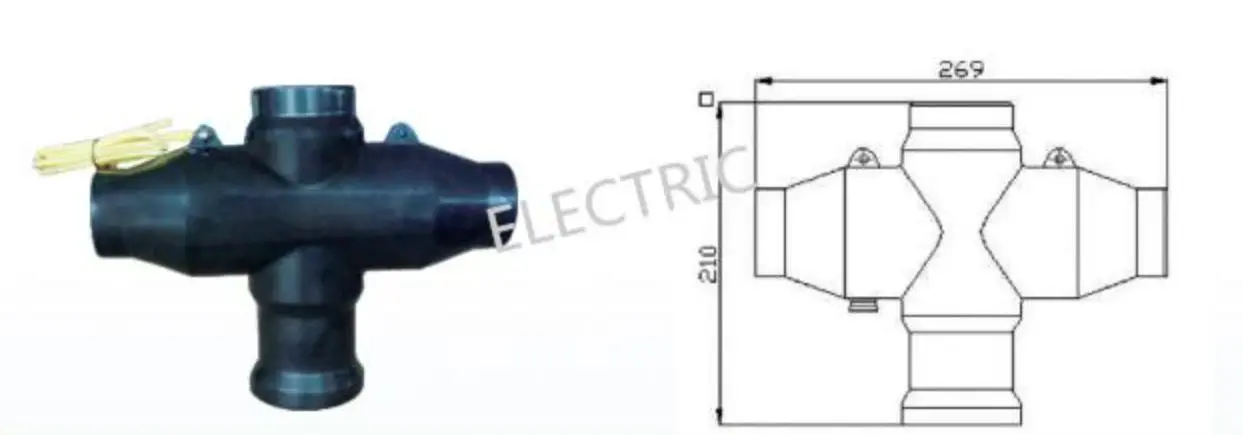

Cross-shaped plug Model: A SJT-15/630A Cross connector:

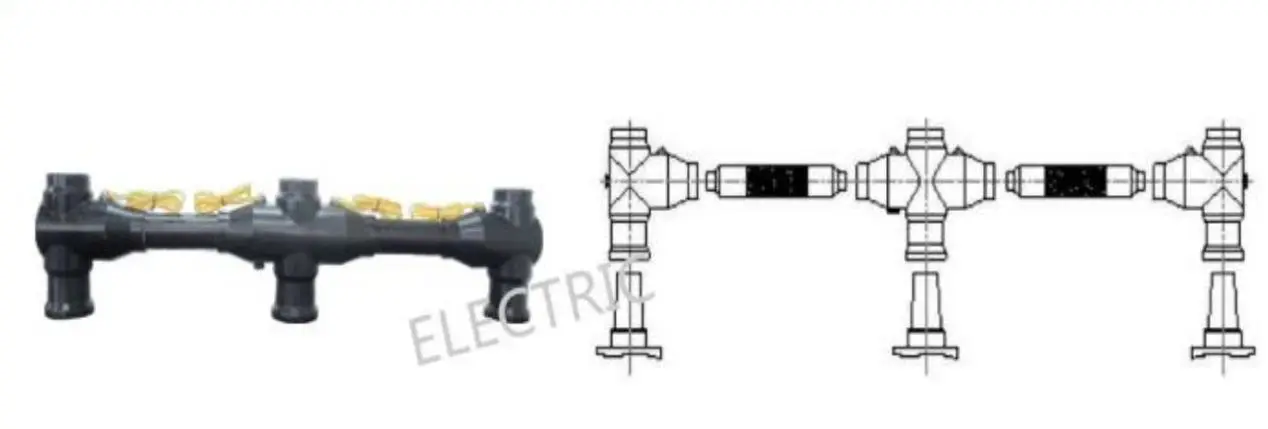

For 3 cabinets connector
|

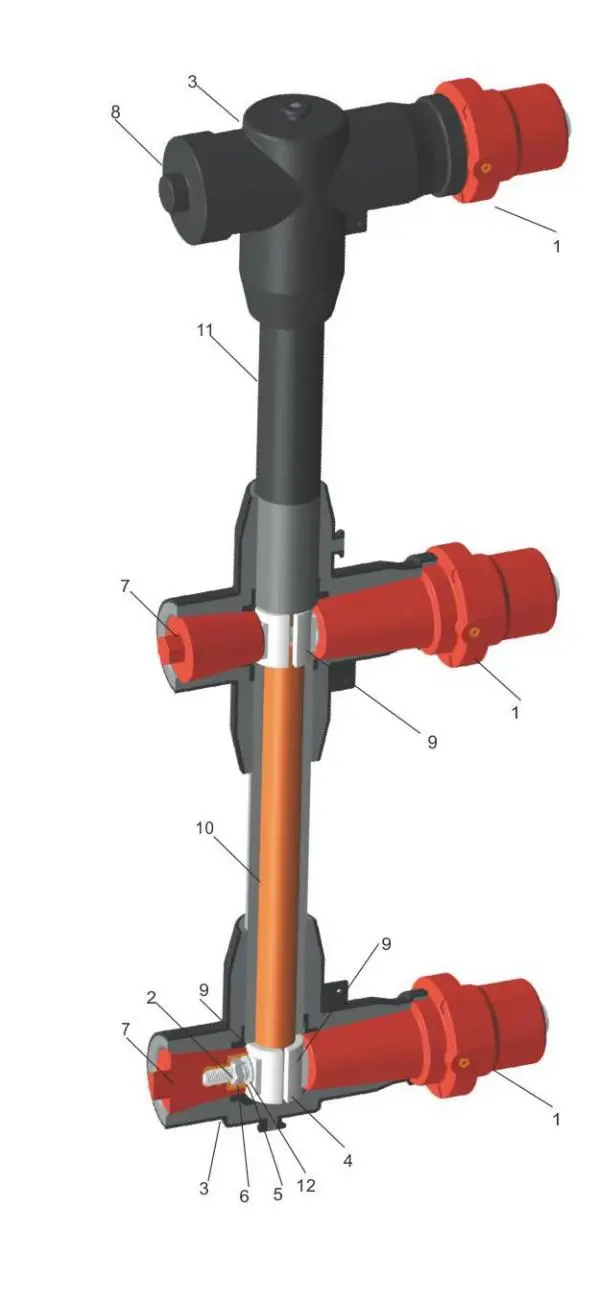

1: 630 equipment casing 2:Double pass reducer screw 3: Butt joint 4: Balancing pad 5: M12 spring pad 6: M12 nut 7：Insulation plug 8: Shield 9: Busbar clamp 10: Shielded Busbar 11: Cross connector 12：M12 flat pad |
Ordering Information:
A.Bus length L to two switchgear equipment casing center distance as the basis,when ordering to provide parameters;if the bus length as the basis,please specify.
OEM/ODM Services:
At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.
Certificates:
We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:
3C Certification
ISO 9001 Certification
21 Utility Model Patents and Design Patents
Why Choose Us:
State-of-the-art Manufacturing Equipment
Extensive Testing Facilities
Comprehensive Quality Assurance Processes
ISO 9001 Certified Quality Management System
One-year Warranty on All Products
Large Production Capacity
FAQ:
Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.
Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.
Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.
Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.
Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.
Packaging:
Wooden Box Packaging
Carton Packaging
Foam-filled Packaging
Waterproof and Moisture-proof Packaging
Customized Packaging
International Standard Packaging
Logistics:
Sea Freight
Air Freight
Land Transportation
Multimodal Transport
Express Delivery Services
Contact Us:
Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
