Products Description
Here are some key details and features of a 3.6/7.2kV high voltage vacuum contactor:
- Voltage Rating:
The contactor is designed to operate within a voltage range of 3.6kV to 7.2kV. This makes it suitable for medium voltage applications where higher voltage levels are required.
- Vacuum Technology:
The contactor employs vacuum interrupters as the switching medium. Vacuum interrupters offer superior arc quenching properties compared to other types of interrupters, ensuring efficient and reliable interruption of electrical circuits.
- Current Rating:
The contactor will have a specific current rating, indicating the maximum current it can handle. This rating determines the capacity of the contactor to control electrical power within the specified voltage range.
- Construction:
High-voltage vacuum contactors are typically constructed with robust materials and designed to withstand high electrical stresses. They may feature insulated housing to ensure safe operation and protection against external influences.
- Auxiliary Contacts:
The contactor may include auxiliary contacts that provide additional control functions. These contacts can be used for signalling, interlocking, or control circuit purposes, enhancing the functionality and versatility of the contactor.
- Coil Control:
The contactor is operated by an electromagnetic coil, which is energized to close the contacts and de-energized to open them. The coil control can be supplied by various voltage levels, typically compatible with control circuit standards.
- Protection Features:
High-voltage vacuum contactors may incorporate various protection features such as overcurrent protection, Undervoltage protection, and short circuit protection. These features help safeguard the contactor and the connected electrical system from potential faults or abnormal conditions.
- Application:
3.6/7.2kV high voltage vacuum contactors find applications in power distribution systems, motor control centres, capacitor banks, and other medium voltage electrical installations. They provide reliable switching and control of power for various industrial, commercial, and utility applications.
Please consult Shaanxi Yuguang Electric Co.,Ltd for the specific product documentation on the features, specifications, and performance of a particular 3.6/7.2kV high voltage vacuum contactor, as different manufacturers may have variations in design and capabilities.
Notes
.High-voltage AC vaccum contactor
.Designed code
.Rated voltage(kV)
.Latching mode:J-machanical latch; D-electrical latch
.G-high altitude; Y-movable type; None-basic type

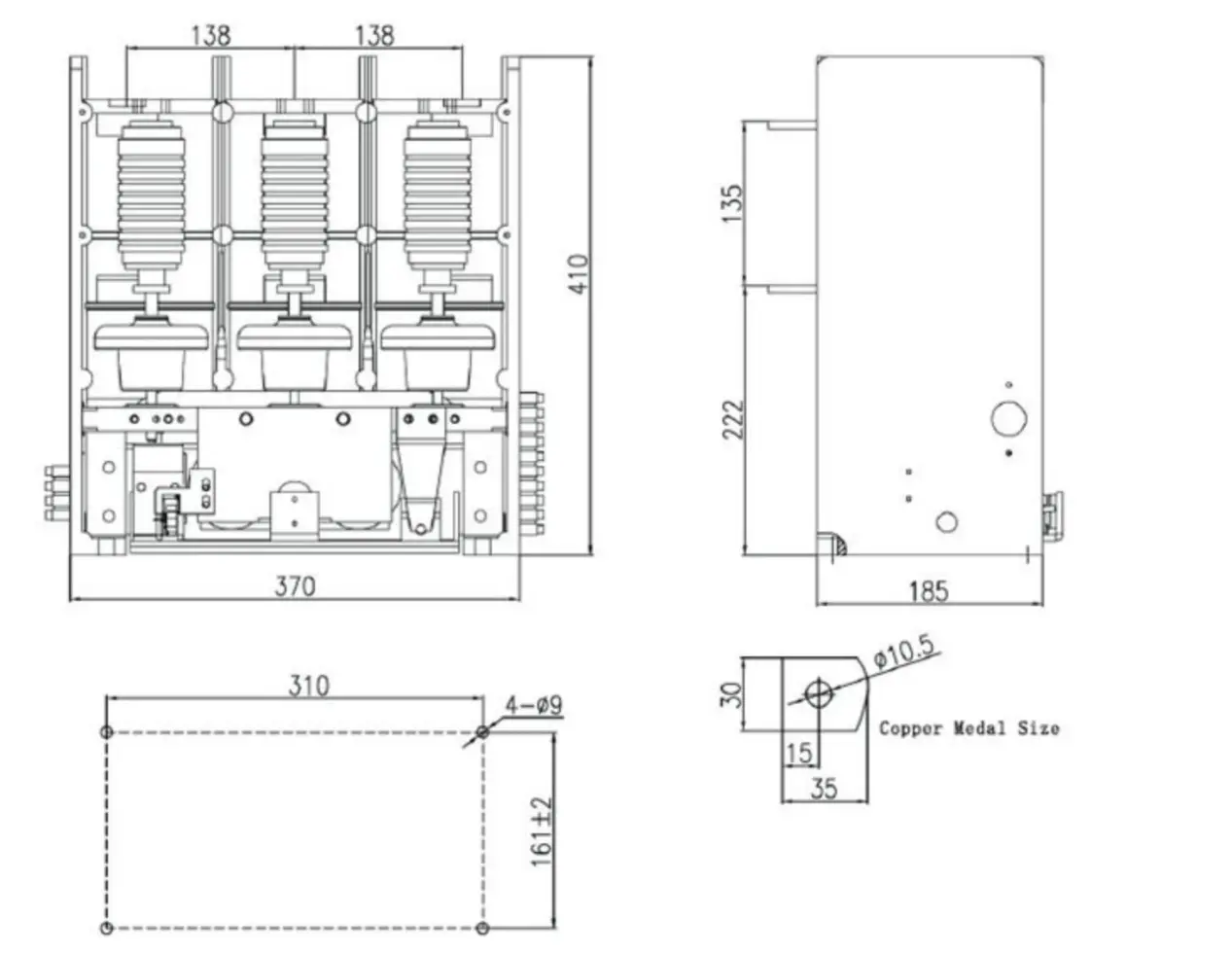

7.2KV Vacuum Contactor
General Description:
YG5-7.2,12/400,630 series vacuum contactor is used in an AC. 50-60 Hz electric power system, with rated working voltage is 7.2Kv and 12kV, and rated current of 400A,630A, for direct or romote on-off control and circuit-breaking control of the of the main load. It is especially suitable for the frequently operated electric control applications such as electric motors, transformer, etc. This series adopts integrated framework, before-and-after layout between the main circuit and controlling circuit, adopts electrical latch or machanical latch, and vacuum interrupter with ceramic shell.

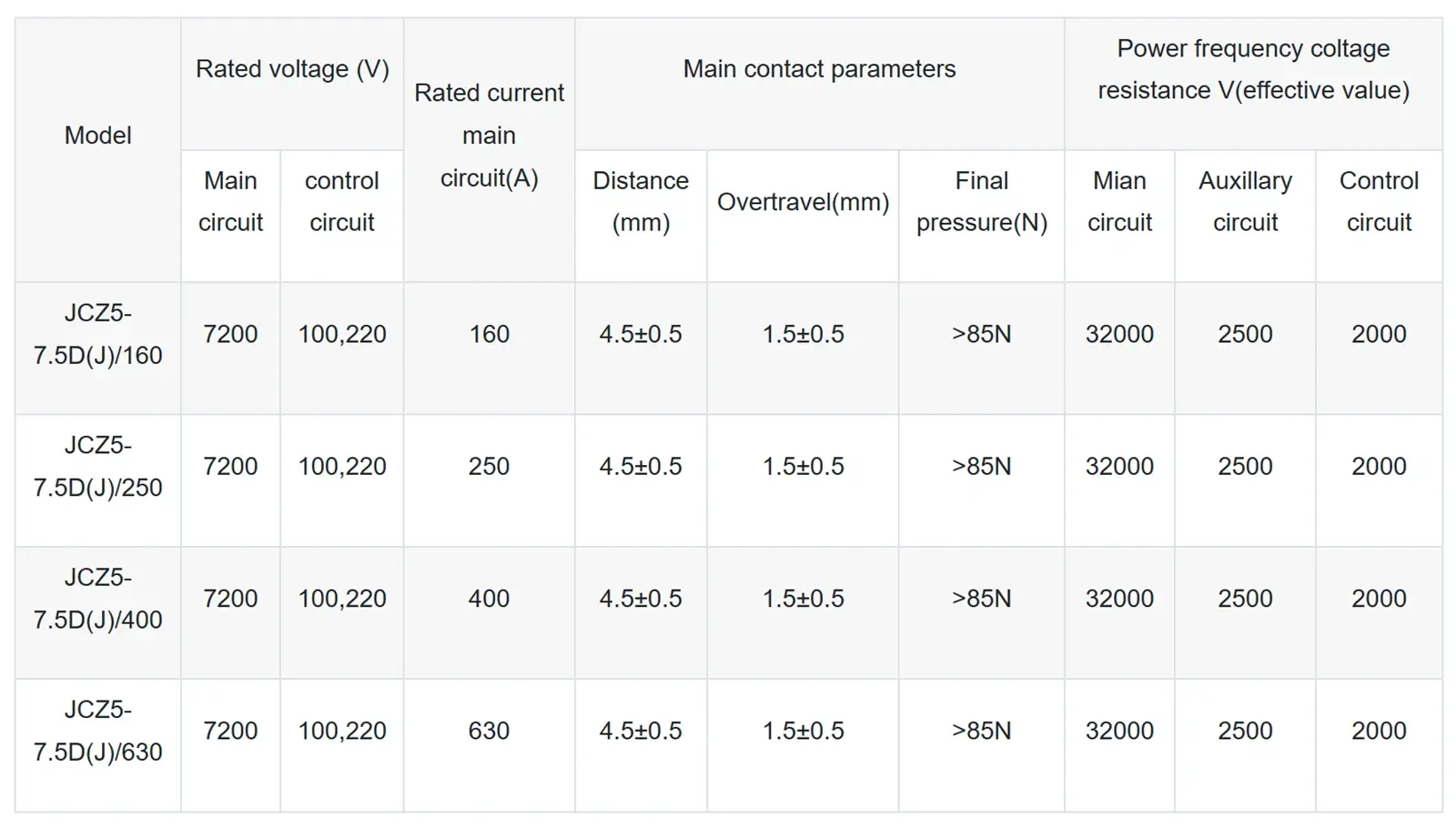

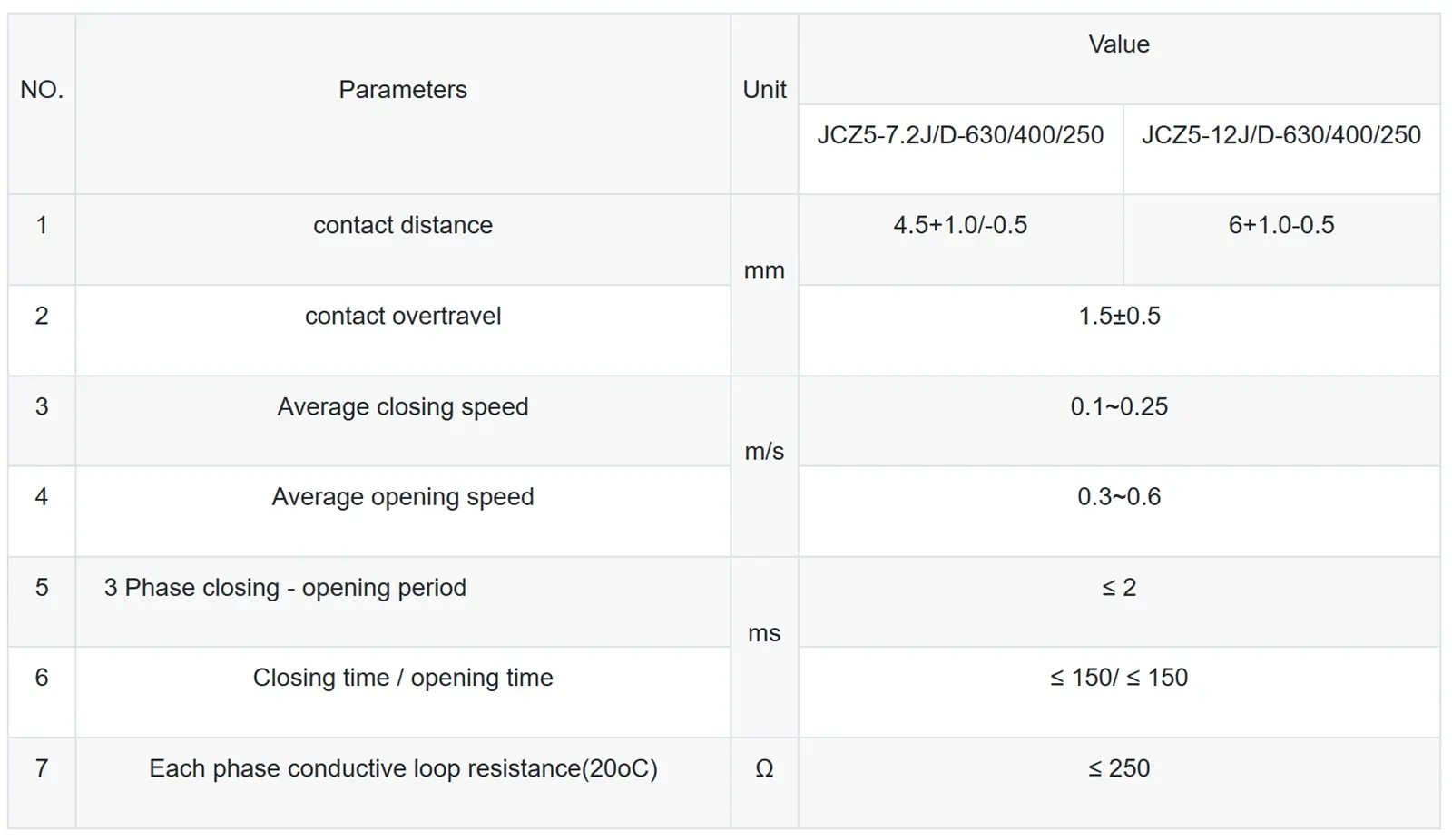

Main Specifications:
1. High-voltage AC vaccum contactor
2. Designed code
3. Rated voltage(kV)
4. Latching mode:J-machanical latch; D-electrical latch
5. G-high altitude; Y-movable type; None-basic type
6. Rated current(A)
7. Rated short-time withstand current(kA)
8. Vaccum shell materials: T-ceramic
