Products Description

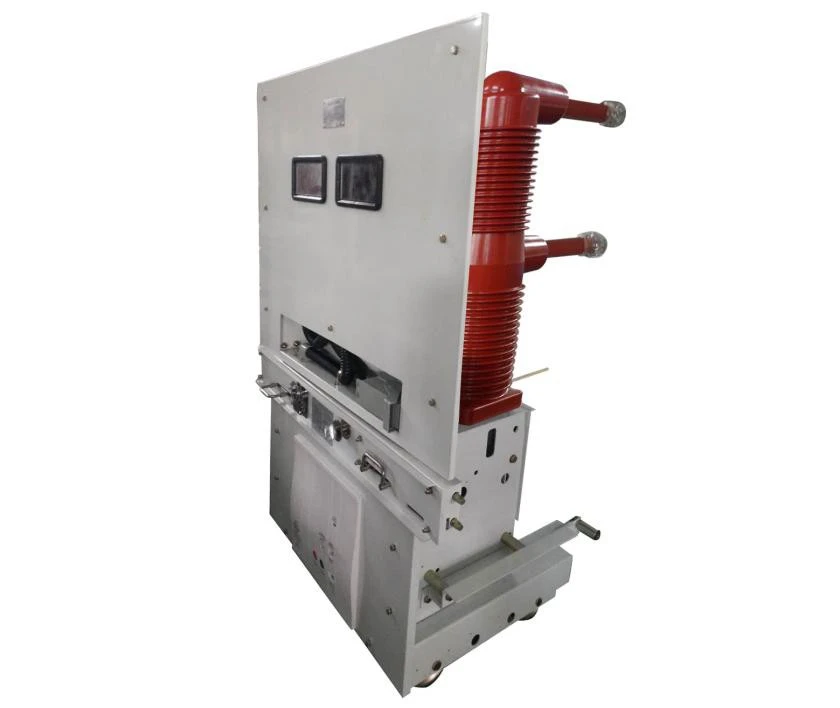

ZN85-40.5 Series Vacuum Circuit Breaker

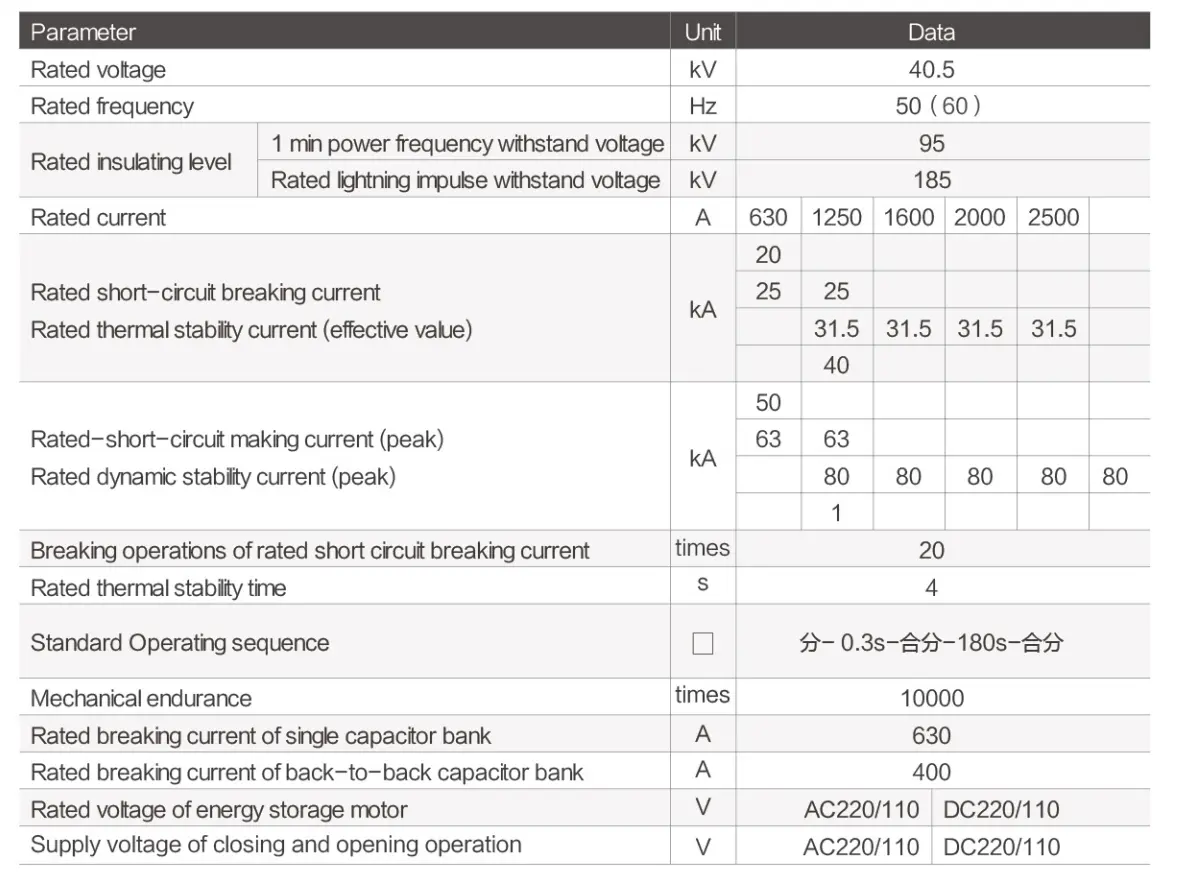

Rated voltage: 40.5
Rated current: 1250A~2500A
Rated short-circuit breaking current: 25~31.5KA
Mechanical life: 10000 times
Breaking times of full capacity: 20 times
The height above sea level: ≤2000m
Main circuit use compound insulation
Feed mechanism with overruning coupler, make it convenient to match with switchgear
The performance meet C2/E2/M2 class
Can be matched with KYN61 type switchgear
Can be matched with switchgear of 1000mm width
Meet requirements of "Five Prevention"
Can be used at high altitude
The primary difference between a 40.5kV VCB (Vacuum Circuit Breaker) with an assembly pole and a 40.5kV VCB with an embedded pole lies in the construction and design of the pole within the circuit breaker. Here's a breakdown of the differences:
Key Points of Distinction:
1: Removability:
In a VCB with an assembly pole design, the pole can be easily removed and replaced. In contrast, a VCB with an embedded pole has the pole permanently integrated into the circuit breaker assembly.
2: Safety and Environmental Protection:
The embedded pole design provides enhanced safety by reducing the risk of accidental contact and offers additional protection against environmental factors. An assembly pole design may have separate safety measures and might be exposed to external influences to a greater extent.
3: Flexibility vs. Compactness:
The assembly pole design allows for flexibility in pole configuration and component replacement. On the other hand, the embedded pole design contributes to a compact overall circuit breaker size, which can be advantageous in applications with limited space.
The choice between a VCB with an assembly pole and a VCB with an embedded pole depends on specific application requirements, space limitations, safety considerations, and maintenance preferences. Consulting with electrical engineers and professionals can help determine the most suitable design for a particular electrical system.
Yuguang Electric is a professional manufacturer, supplier and R&D of 40.5kv vcb with assembly pole in China, welcome to contact us and inquiry about 40.5kv vcb with assembly pole products from our factory.
Advantages:
1. Modularized spring-operated mechanism, superior performance and higher life span;
2. It can match the mainstream cabinet type KYN61 with stronger applicability;
3. With handcart/fixed configuration to meet the use of a variety of cabinet types, greater versatility;
