BGH-12kV Indoor Three-station Circuit Breaker

BGH-12kV Indoor Three-station Circuit Breaker

The BGH-12KV indoor three-position circuit breaker is a high-voltage indoor switchgear unit with a rated voltage of 12 kV. It is primarily used in gas-insulated ring main units (such as gas-insulated switchgear), prefabricated substations, or small switching stations, where it performs the functions of switching, isolating, and providing ground protection for circuits.
Key Features:
Three-in-One Design: This is its most distinctive feature. It integrates three functions—circuit breaker (closing/opening), isolator (isolation), and earthing switch (earthing)—into a single module, achieving the following:
1.Closed Position: The circuit is energized and can carry and interrupt load currents as well as short-circuit currents.
2.Open Position: The circuit is disconnected, forming a visible isolation break to ensure maintenance safety.
3.Ground Position: Grounds the outgoing line to prevent backfeed and ensure personnel safety.
4.Visible Break: In the open position, it provides a clearly visible isolation break—a core requirement of the isolator function—allowing maintenance personnel to visually confirm that the circuit is disconnected, significantly enhancing safety.
5.Compact Design: By integrating multiple functions, it significantly saves internal space in switchgear compared to using separate circuit breakers, isolators, and grounding switches, making it particularly suitable for applications with strict space constraints.
6.Interlocking Mechanism: Comprehensive mechanical interlocks are designed between the three positions to ensure operations can only be performed in sequence (for example, the circuit breaker must be tripped before the isolator can be moved to the isolation or grounding position), fundamentally preventing misoperation.

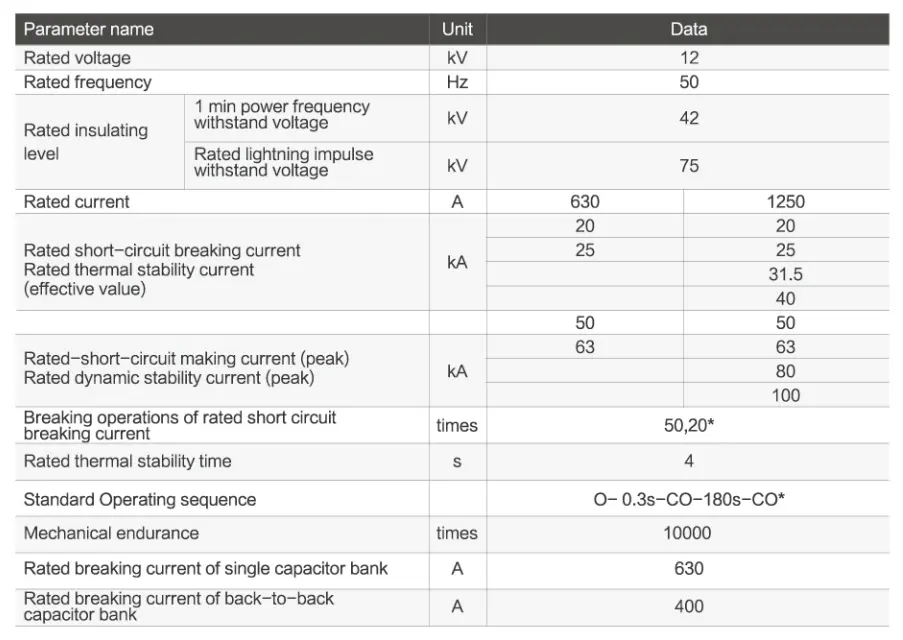

Key Technical Specifications：

OEM/ODM Services:

At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.

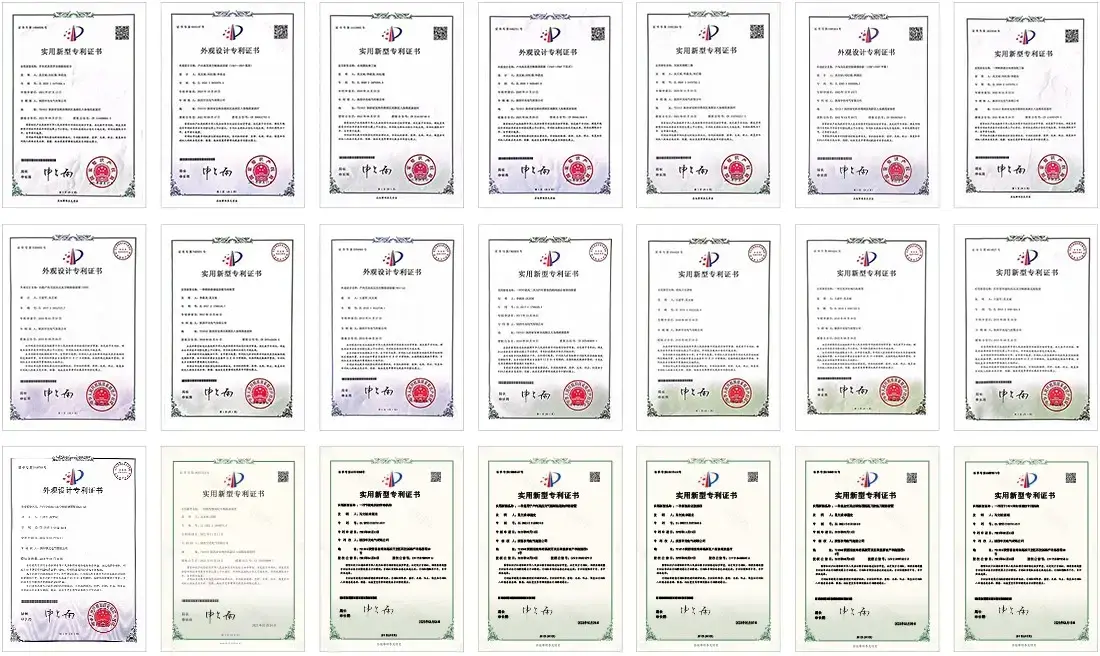

Certificates:

We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:

3C Certification

ISO 9001 Certification

21 Utility Model Patents and Design Patents

Why Choose Us:

State-of-the-art Manufacturing Equipment

Extensive Testing Facilities

Comprehensive Quality Assurance Processes

ISO 9001 Certified Quality Management System

One-year Warranty on All Products

Large Production Capacity

FAQ:

Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.

Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.

Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.

Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.

Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.

Packaging:

Wooden Box Packaging

Carton Packaging

Foam-filled Packaging

Waterproof and Moisture-proof Packaging

Customized Packaging

International Standard Packaging

Logistics:

Sea Freight

Air Freight

Land Transportation

Multimodal Transport

Express Delivery Services

Contact Us:

Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
