Ⅰ Product Overview:
The ZW17-40.5 outdoor high-voltage vacuum circuit breaker is designed to provide robust protection for medium-voltage electrical systems, ensuring reliable operation and enhanced safety.
The equipped with advanced vacuum interrupter technology, our circuit breaker offers unparalleled performance in interrupting and isolating fault currents,and it is suitable for three-phase AC 50Hz, rated voltage 40.5KV outdoor high-voltage, additional installed spring-operated mechanism or electromagnetic-operated structure, which can remotely control the electric opening and closing, or manually energy storage, manually opening and closing. The design performance meets the requirements of the GB1984-89 "AC High Voltage Circuit Breaker" national standard and IEC-56 "AC High Voltage Circuit Breaker" International Electrotechnical Commission standard.
Ⅱ Scope and Fields of Product Application:
ZW17-40.5 series outdoor high-voltage vacuum circuit breaker is mainly used for the control and protection of outdoor 35KV power transmission and transformation system, and can also be applied to the normal operation and short circuit protection of city and township power distribution network and industrial and mining enterprises.
Ⅲ Structure and advantages:

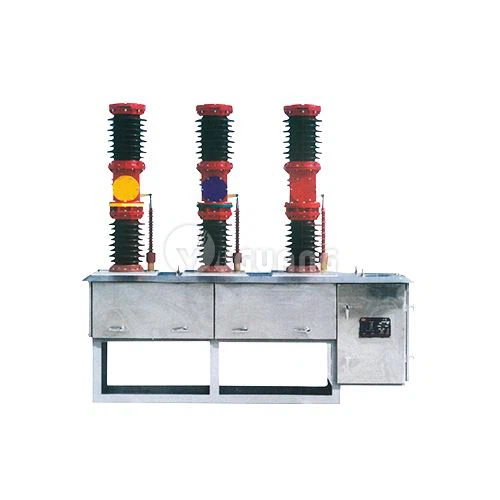

The overall structure of the product is porcelain bottle pillar type; The upper porcelain bottle is equipped with a vacuum arc extinguishing chamber, and the lower porcelain bottle is a pillar porcelain bottle, which is suitable for frequent operation places.

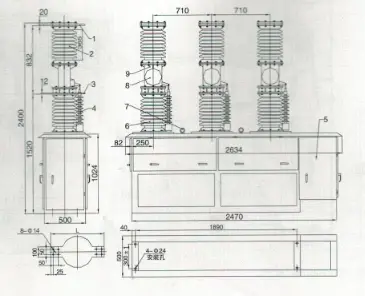

The external Dimensions is as bellow:
Its structure makes ZW17-40.5 outdoor vacuum breaker has the characteristics of good sealing, aging resistance, high pressure resistance, no combustion, no explosion, long service life, easy installation and maintenance.
Ⅳ Parameters of circuit breaker:
Main technical parameters of circuit breaker:
|
No. |
Item |
Unit |
Value |
|
1 |
Rate Voltage |
kV |
40.5 |
|
2 |
Rate Current |
A |
1250/1600/2000 |
|
3 |
Rate Frequncy |
Hz |
50 or 60 |
|
4 |
Industrial frequency withstand voltage 1min (wet) (dry) phase-to-phase, to ground / outlet |
kV |
80 95 / 95 |
|
5 |
Lightning impulse withstand current (peak) phase-to-phase, to ground/outlet |
kV |
185 |
|
6 |
Rated short-circuit breaking current |
kA |
25/31.5 |
|
7 |
Rated short-circuit closing current (peak) |
kA |
63/80 |
|
8 |
Rated peak withstand current |
kA |
63/80 |
|
9 |
4Short-time withstand current |
kA |
25/31.5 |
|
10 |
Rated operating cycles |
O-0.3s-CO-180s-CO |
|
|
11 |
Rated short-circuit breaking current |
Ops |
30 |
|
12 |
Mechanical life |
Ops |
10000 |
|
13 |
Mechanical control voltage |
V |
AC/DC220 |
|
14 |
Secondary circuit 1min frequency withstand voltage |
KV |
2 |
Main Mechanical parameters of circuit breaker:
|
No. |
Name |
Unit |
Data |
|
1 |
Contact opening distance |
mm |
18±1 |
|
2 |
Contact overtravel |
mm |
4±0.5 |
|
3 |
Opening speed |
m/s |
1.4-1.8 |
|
4 |
Closing speed |
m/s |
0.4-0.8 |
|
5 |
Contact closing bounce time |
ms |
≤5 |
|
6 |
Centre distance between phases |
mm |
710±2 |
|
7 |
Three-phase switching and closing non-synchronous |
ms |
≤2 |
|
8 |
Resistance of conductive circuit of each phase |
μQ |
<80 |
|
9 |
Closing time |
ms |
≤100 |
|
10 |
Breaking time |
ms |
≤50 |
|
11 |
Weight |
Kg |
about 8 0 0 |
Ⅴ Conditions of use:
● Ambient air temperature: -30°C~ +60°C
●Ambient air temperature: -30°C~ +60°C.
●Altitude: not more than 1000 meters; ●Wind speed: not more than 34m/s; ●Altitude: not more than 1,000 meters.
●Wind speed not exceeding 34m/s.
●Vibration or ground motion from outside the switch-gear and control equipment is negligible.
●Fouling level: Class IV.
●Storage temperature -40°C ~ +85°C.
Note: The above are the environmental conditions for the use of conventional configuration switches, such as the need to operate under the environment (such as high altitude, dense salt spray, heat and cold) please contact us.
