YGM-12kV Indoor Permanent Magnetic Handcart Type Vacuum Circuit Breaker

YGM-12kV  Indoor Permanent Magnetic Handcart Type Vacuum Circuit Breaker

The YGM-12kV indoor permanent magnet draw-out vacuum circuit breaker is a high-voltage switchgear that combines permanent magnet operating technology with a draw-out design. It serves as a control and protection unit for electrical equipment in industrial and mining enterprises, power plants, and substations, and is particularly suitable for applications requiring frequent operation and rapid reclosing.
Key Feature: Permanent Magnet Operating Mechanism

• Revolutionary Design: It employs a permanent magnet operating mechanism that utilizes permanent magnets for end-of-travel holding, replacing the complex mechanical trip and latching devices of traditional spring mechanisms. With only one primary moving part during operation, the design fundamentally simplifies the structure and reduces potential sources of failure.
• High Reliability and Long Service Life: Due to the significant reduction in components, mechanical service life is greatly extended. While the service life of traditional spring mechanisms is typically around 10,000 operations, high-performance permanent magnet circuit breakers can exceed 100,000 operations, marking a revolutionary breakthrough in the medium-voltage switchgear sector.
• Superior Operating Characteristics: The force characteristics of the permanent magnet mechanism align well with the reaction force requirements of vacuum circuit breakers, resulting in minimal variation in operating performance. When integrated with electronic control systems, it enables intelligent switching operations and synchronized opening and closing.​​​​​​​​​​​​​​

Structure and Compatibility：
This product features a three-phase coaxial design. When assembled into a draw-out unit with a standard chassis, it can be directly installed in common center-break switchgear, such as the KYN28 type, without requiring any modifications to the switchgear, making installation extremely convenient. Of course, it can also be used as a standalone switching unit and installed in other compartments within indoor switchgear.

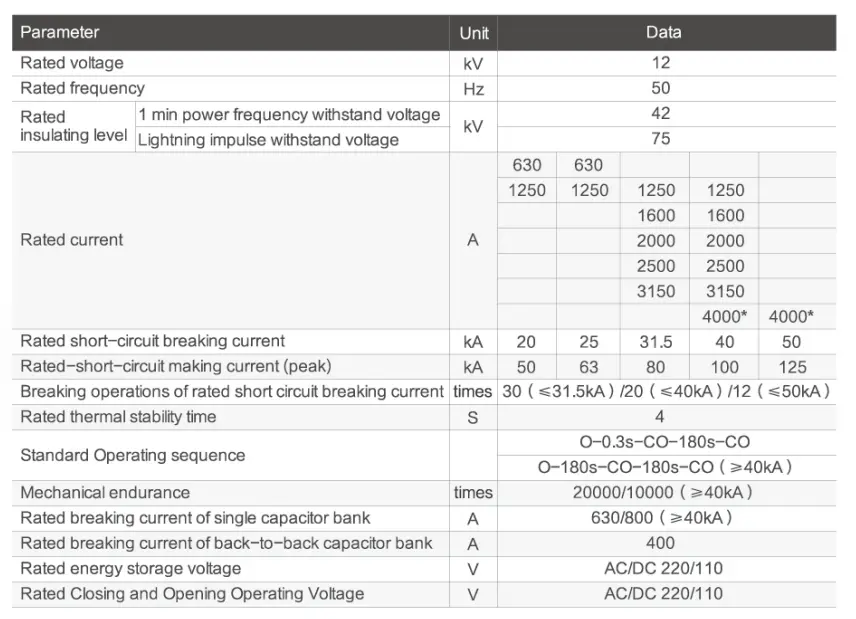

Key Technical Specifications：

OEM/ODM Services:

At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.

Certificates:

We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:

3C Certification

ISO 9001 Certification

21 Utility Model Patents and Design Patents

Why Choose Us:

State-of-the-art Manufacturing Equipment

Extensive Testing Facilities

Comprehensive Quality Assurance Processes

ISO 9001 Certified Quality Management System

One-year Warranty on All Products

Large Production Capacity

FAQ:

Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.

Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.

Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.

Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.

Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.

Packaging:

Wooden Box Packaging

Carton Packaging

Foam-filled Packaging

Waterproof and Moisture-proof Packaging

Customized Packaging

International Standard Packaging

Logistics:

Sea Freight

Air Freight

Land Transportation

Multimodal Transport

Express Delivery Services

Contact Us:

Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
