Product Description:

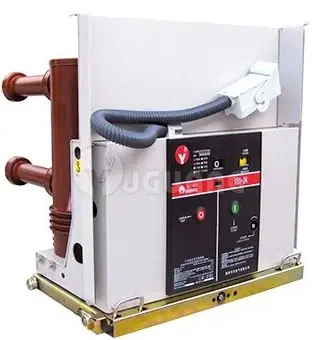

VS1-24 type permanent vacuum circuit breaker is fixed installation, mainly used in the fixed switchgear cabinet, which can be used alone or a ring network power supply, box transformer, or various non-standard power supply systems. Vacuum Interrupters Vacuum circuit breakers utilize a vacuum as the medium for extinguishing the arc. The vacuum interrupter is a sealed chamber that contains contacts for the current interruption. When the contacts are separated, the vacuum prevents the formation of an arc, ensuring effective interruption of the current.
Indoor high voltage vacuum circuit breaker (circuit breaker) is suitable for indoor switch-gear of 24kv power system. As a protection and control unit for power grid equipment and industrial and mining enterprise power design, it is suitable for switching various loads of different nature, frequent operations, and multiple interruption of short-circuit current.
The product adopts a new type of circuit breaker operating mechanism,
1. The primary part of VSC can use solid-sealed pole poles of international brands, and the vacuum interrupter and main conductive circuit parts can be solid-sealed into a whole
2. Protect the interrupter from impact, dust and condensation
3. Strong environmental adaptability, greatly reducing operation and maintenance costs
4. The operating mechanism is integrated with the circuit breaker body, which has been verified by type tests
5. With E2 electrical life, M12 mechanical life
Products based on standards
Comply with GB1984-2003 "High Voltage AC Circuit Breaker", JB3855-1996 "3.6-40.5KV) Indoor AC High Voltage Vacuum Circuit Breaker" DL/T403-2000 "12-40.5KV High Voltage Vacuum Circuit Breaker Ordering Technical Conditions" and IEC62271-100 :2001 related requirements
Environmental requirements
1. Ambient temperature: highest temperature + 4O℃, lowest temperature -15℃
2. Environmental humidity: daily average relative humidity ≤95%, monthly average relative humidity: ≤90%, daily average vapor pressure ≤22×10-3MPa, monthly average vapor pressure ≤1.8×10-3MPa.
3. Altitude: not more than 1000m;
4. The earthquake intensity does not exceed 8 degrees;
5. The surrounding air is not significantly polluted by dust, smoke, corrosive and/or flammable gas, steam or salt spray.
Note: If it exceeds the requirements of the above normal use environmental conditions, it is necessary to negotiate with the manufacturer.
Key attributes
Industry-specific attributes
Other attributes
FAQ
1.Q: Are you, a manufacturer?
A: Yes, we are a manufacturer. Our factory is in Wenzhou China
2.Q: Can I get a guarantee of products?
A: Yes, every product is a 1-year quality warrantee under the customer's correct using the products.
3.Q: Do you have any Certificates?
A: Yes. Each of our units has CCC, ISO9001 certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, and I will give you a professional solution. We have a shipping agent who can choose the cheapest and fastest delivery. FOB, CIF, C&F or EXW are no problem for us.
5.Q: How can I pay you?
A: T/T, L/C is very well used.
6.Q: What about the production?
A: Produce time is 4~6 weeks.
7.Q: Could you offer some spare parts?
A: Yes, no problem.
8.Q: What about the maintenance?
A: All the goods pass the test, and maintenance is very easy.
OEM/ODM Services:
At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.
Certificates:
We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:
3C Certification
ISO 9001 Certification
21 Utility Model Patents and Design Patents
Why Choose Us:
State-of-the-art Manufacturing Equipment
Extensive Testing Facilities
Comprehensive Quality Assurance Processes
ISO 9001 Certified Quality Management System
One-year Warranty on All Products
Large Production Capacity
FAQ:
Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.
Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.
Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.
Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.
Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.
Packaging:
Wooden Box Packaging
Carton Packaging
Foam-filled Packaging
Waterproof and Moisture-proof Packaging
Customized Packaging
International Standard Packaging
Logistics:
Sea Freight
Air Freight
Land Transportation
Multimodal Transport
Express Delivery Services
Contact Us:
Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
