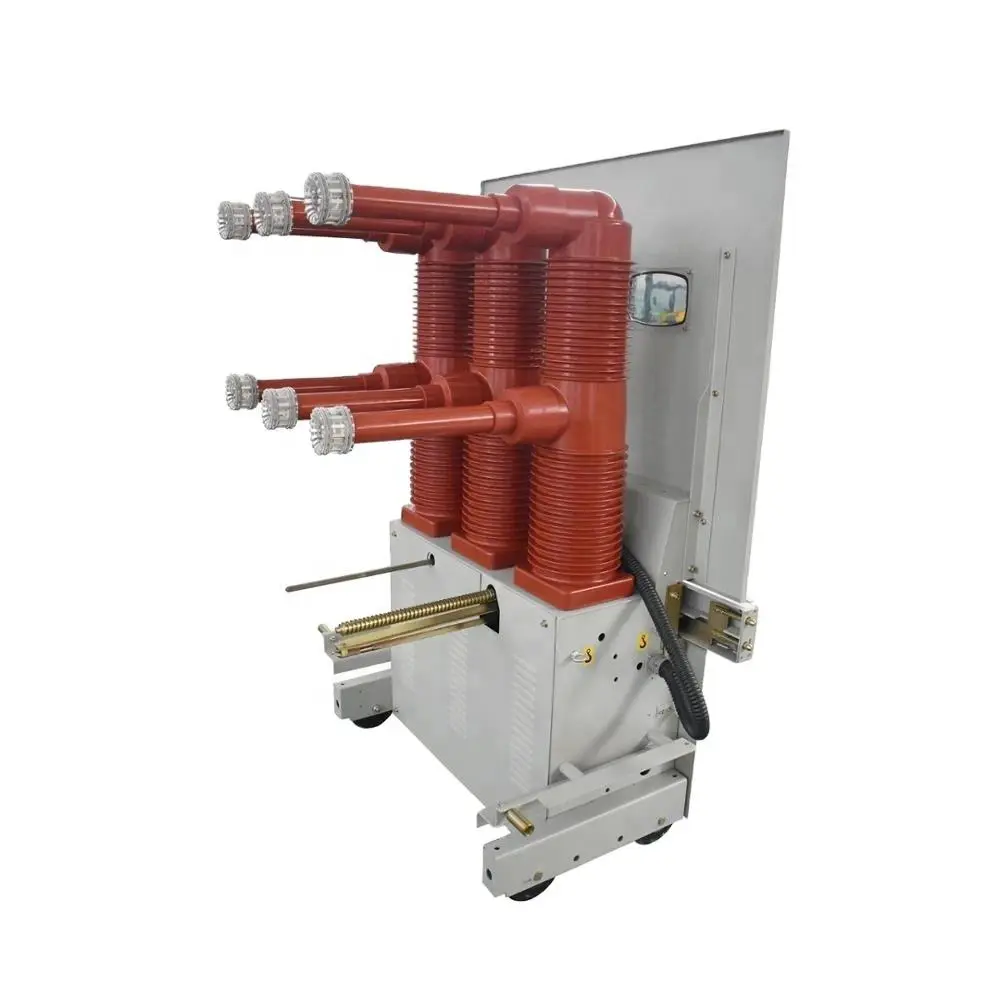

ZN85-40.5 Vacuum Circuit Breaker

Products Description：

ZN85-40.5 indoor high-voltage vacuum circuit breaker is suitable for three-phase AC 50Hz, 40.5kV system, which can be used in industrial and mining enterprises, power plants and transformer substations as the purpose of splitting and closing the load current, overload current fault current, and is suitable for frequent operation occasions.

Environment：

Altitude: not exceed 1000m
Ambient temperature: - 15°C ≤ T ≤+40°C

Relative humidity:daily average relative humidity:≤95%;monthly average relative humidity ≤90%;daily average saturated saturated vapor pressure ≤2.2KPa;monthly average value ≤ 1.8KPa
Earthquake intensity:≤8 degree
The installation should be free from fire,explosion,severe vibration,chemical corrosion and serious pollution.

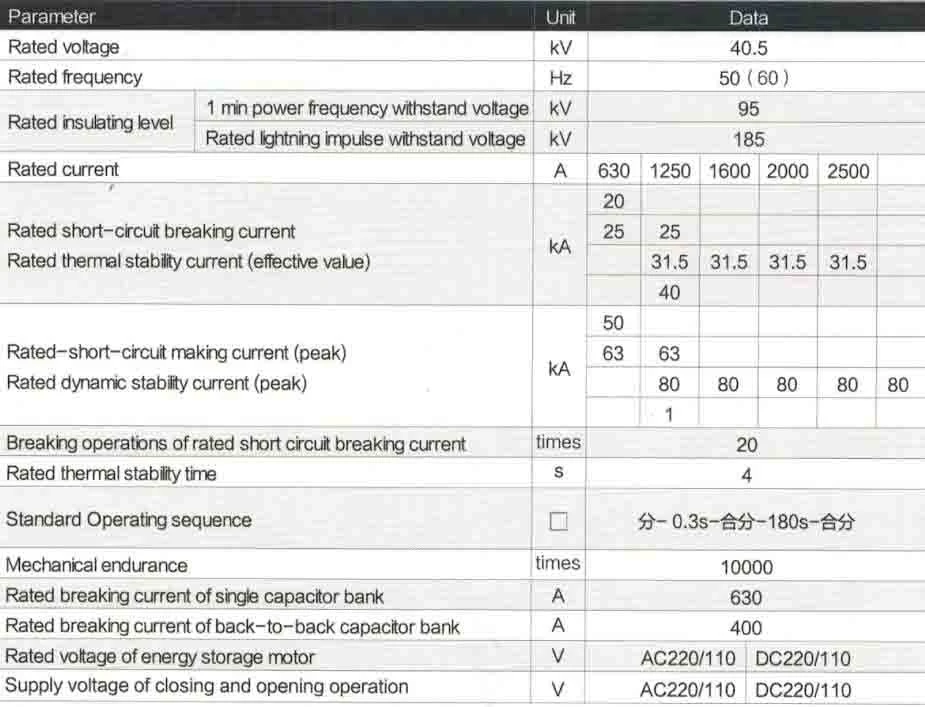

Technical Parameters

The technical parameters of ZN85-40.5 Vacuum Circuit Breaker are as follows:

Structure:

1 Structural Features

1.1 Circuit breaker adopts integrated and modular design, the overall structure is simple and reasonable, the use of upper and lower, arc extinguishing chamber part on the top, interlock and operating part on the bottom. The use of special spring gas operating mechanism, no adjustment, stable and reliable action.

1.2 The vacuum interrupter of the three-phase conductive circuit of the circuit breaker is arranged in a closed insulating cylinder, which is made of materials with reliable mechanical and electrical properties and a mature vacuum pouring process. This not only significantly improves the insulation performance between phases, but also makes each phase circuit not affected by the harsh external environment, which dust and foreign matter can be prevented from entering the main circuit, and the overall size of the circuit breaker is reduced.

1.3 The circuit breaker shall adopt WL-35855X vacuum interrupter produced by American Cutler-Hammer Company or adopt the latest domestic design of coil type longitudinal strong magnetic field structure vacuum interrupter. It adopts ceramic shell, copper wall chromium contact material, with small size, high insulation level, strong arc extinguishing ability, long electrical life and excellent performance of breaking and closing short circuit current.

2 Principle of mechanical action

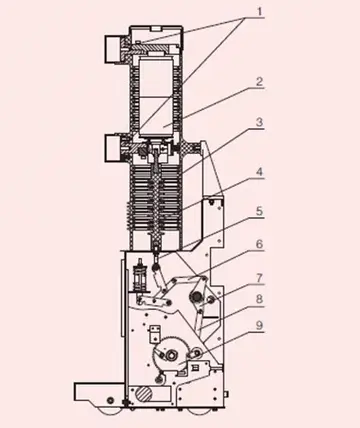

Figure 1 is the internal structure of the circuit breaker Circuit breaker is mainly composed of conductive circuit, arc extinguishing system, insulation system, operating system. The dynamic conductive rod of the arc extinguishing chamber is connected with the operating mechanism through the insulating tie rod and the transmission connecting rod.

2.1 Closing operation: The operating mechanism 9 is stored by the motor on the closing spring. After the closing electromagnet action, the closing spring through the CAM and connecting rod 8 to drive the arm 7 counterclockwise rotation, the arm drive connecting rod 6 and screw 5 upward movement, complete the closing operation. At the same time, the opening spring and the contact pressure spring are stored. Make the interrupter contact to maintain a certain pressure, but also for the opening operation to prepare.

2.2 Opening operation: After the opening electromagnet is energized, the closing bullet in the operating mechanism is released, and the arc extinguishing chamber dynamic guide rod moves downward under the opening spring to complete the opening operation of the vacuum extinguishing chamber.

2.3 Manual energy storage operation: Insert the manual energy storage operation handle into the jack of the operating mechanism, and then swing (about 60) to the left and right, and use one-way bearings to complete the closing Energy storage of the spring. After the energy storage, you can manually press the closing and opening buttons to realize the closing and opening operation.

Advantages:

ZN85-40.5 high-voltage vacuum circuit breaker is equipped with a reliable interlocking unit to meet the user's "five-proof" protection function. and the related supporting products are the isolation trolley, fuse trolley, fuse trolley with a thunderbolt, and PT trolley.

ZN85-40.5 high-voltage vacuum circuit breaker adopts a composite insulation structure to meet the insulation requirements in normal operation conditions, and it reduces the volume of the circuit breaker effectively with a reasonable, beautiful, and concise total layout.

The spring-operated mechanism adopts specially designed, and the output curve is well-matched with the requirements of the interrupter chamber. Its performance is more suitable for the characteristics and demands of a 40.5KV vacuum circuit breaker, with high reliability, long service life, easy maintenance, and a maintenance-free mechanism.

ZN85-40.5 high-voltage vacuum circuit breaker trolley adopts a screw nut propulsive mechanism device with overrunning clutch, which can move the trolley in the switchgear cabinet to make the travel range of the trolley precise and reliable.

Scope and Fields of Product Application

ZN85-40.5 Vacuum Circuit Breaker has a wide range of applications in various fields, such as power plants, substations, industrial and mining enterprises, petrochemicals, metallurgy, railway transportation, and high-rise buildings.
