Ⅰ Overview:

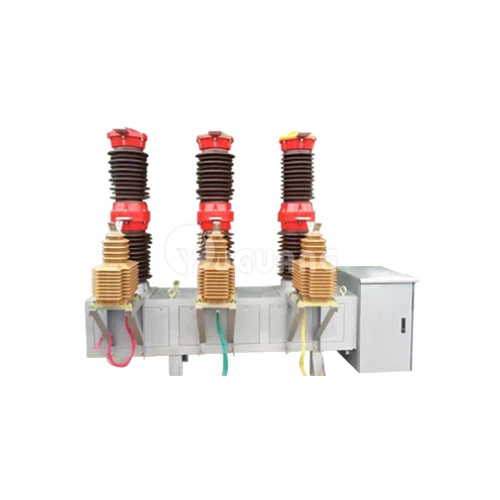

LW8-40.5 Outdoor sulfur Hexafluoride circuit breaker is a high-voltage electrical equipment suitable for power transmission and distribution systems. It has excellent breaking and short-circuit current interruption performance, and it is widely used in various fields such as power plants, substations, industrial and mining enterprises, petrochemicals, metallurgy, and other urban power grid systems.
LW8-40.5 Outdoor sulfur Hexafluoride circuit breaker is a high-voltage electrical equipment suitable for power transmission and distribution systems. It has excellent breaking and short-circuit current interruption performance, and it is widely used in various fields such as power plants, substations, industrial and mining enterprises, petrochemicals, metallurgy, and other urban power grid systems.
Ⅱ Structural Composition:
LW8-40.5 Outdoor sulfur Hexafluoride circuit breaker is composed of several essential components, including an operating mechanism, interrupter unit, and arc extinguishing system. The operating mechanism provides energy required for switching operation, and it can be manually or electrically operated. The interrupter unit includes an SF6 arc-extinguishing chamber, contact system, and other auxiliary devices.
The SF6 circuit breaker uses SF6 gas as an arc-extinguishing and insulating medium to achieve excellent breaking and short-circuit current interruption performance. The contact system is used to establish and break the circuit. The arc extinguishing system is responsible for extinguishing the arc generated in the process of opening and closing the circuit breaker.
Ⅲ Features:
Excellent breaking performance, the use of compressed gas to interrupt the arc chamber, short arc time, long electric life, at the rated voltage continuous breaking 31.5KA short-circuit current up to 21 times without overhauling, not to replace the six sulfur gas; high mechanical reliability. Mechanical life of more than 3,000 times; can be frequently operated, each unit can be installed 12 current transformers for users to choose. The product adopts the new MKZ type SF6 pointer density gauge, the pressure gauge reading is not affected by temperature changes, easy to use. The circuit breaker meets the requirements of national standard GB1984-89 "AC High Voltage Circuit Breaker" and International Electrotechnical Commission standard IEC56 publication "High Voltage AC Circuit Breaker". The product is equipped with CT14 type spring mechanism.
This series of products have the following characteristics:
1,Multi-variety, can meet different user requirements
Including: LW8-40.5 type circuit breaker and LW8-35A series porcelain column type circuit breaker two categories, and LW8-35A series porcelain column type circuit breaker includes LW8-40.5 parallel arrangement and LW8-35AT type and LW8-35AG type three categories.
2. Strong ability to withstand current and break short-circuit current.
Rated current up to 3150A, can open the rated short-circuit current 40KA, to meet the use of large-capacity users.
3. High reliability of mechanism
Equipped with CT14 mechanism, the mechanism has high operational stability, mechanical life of more than 5000 times, less maintenance workload, our company equipped with CT14 mechanism has reached more than 20,000 sets of circuit breakers across the country, and with CT10-A mechanism of LW8-35AG type circuit breakers operating power is smaller, more compact and beautiful structure.
4,Configuration of CT with high precision
It can be attached with casing type CT, the precision can be up to 0.2S level, the secondary load can be up to 40VA and above, and the protection level can be up to 5P30 level and above. In order to satisfy the needs of different users, the LW8-35AG type circuit breaker can be attached with epoxy casting CT externally.
Ⅳ Main Technical Parameters:
|
No. |
Parameters |
Unit |
Value |
|
|
Rate Voltage |
kV |
35 |
||
|
2 |
Highest Voltage |
kV |
40.5 |
|
|
3 |
Rated Insulation Level |
Lightning impulse withstand voltage (full wave peak) |
kV |
185/215(Break) |
|
Industrial frequency withstand voltage (1 minute) |
kV |
95/118(Break) |
||
|
4 |
Rated Current |
A |
1600/2000/2500/3150 |
|
|
5 |
Rated short-circuit breaking current |
kA |
20/25/31.5/40 |
|
|
6 |
Rated operating sequence |
0--0,3s--CO--180s--CO |
||
|
7 |
Mechanical life |
Ops |
5000 |
|
|
8 |
Annual gas leakage rate |
≤1% |
||
|
9 |
Sulphur hexafluoride gas moisture content(20℃) |
uL/L |
≤150 |
|
Ⅴ Application Range and Fields:
LW8-40.5 Outdoor sulfur Hexafluoride circuit breaker has a wide range of applications in various fields such as:
Power Plants: Suitable for the protection of transformers, generators, and transmission lines.
Substations: Can be used for incoming and outgoing lines of high-voltage switchgear.
Industrial and Mining Enterprises: Protection and control of motors, transformers, capacitors, and power distribution systems.
Petrochemicals: Useful for the protection of chemical production, oil refining, and other systems.
Metallurgy: Can be used for the protection and control of power distribution in steel plants, casting plants, rolling mills, and other industries.
Ⅵ Product Features and Advantages:
High-Performance: LW8-40.5 Outdoor sulfur Hexafluoride circuit breaker provides excellent breaking and short-circuit current interruption performance.
Reliable Operation: The operating mechanism is reliable under various working conditions, and it has a long service life with low noise.
Low Maintenance Cost: Efficient design reduces maintenance and repair costs over time.
High Safety and Stability: The product has high insulation performance and strong anti-condensation ability, making it suitable for outdoor use in harsh environments.
Flexible Installation: The product can be installed vertically or horizontally, making it easy to integrate into existing systems.
OEM/ODM Services:
At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.
Certificates:
We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:
3C Certification
ISO 9001 Certification
21 Utility Model Patents and Design Patents
Why Choose Us:
State-of-the-art Manufacturing Equipment
Extensive Testing Facilities
Comprehensive Quality Assurance Processes
ISO 9001 Certified Quality Management System
One-year Warranty on All Products
Large Production Capacity
FAQ:
Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.
Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.
Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.
Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.
Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.
Packaging:
Wooden Box Packaging
Carton Packaging
Foam-filled Packaging
Waterproof and Moisture-proof Packaging
Customized Packaging
International Standard Packaging
Logistics:
Sea Freight
Air Freight
Land Transportation
Multimodal Transport
Express Delivery Services
Contact Us:
Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
