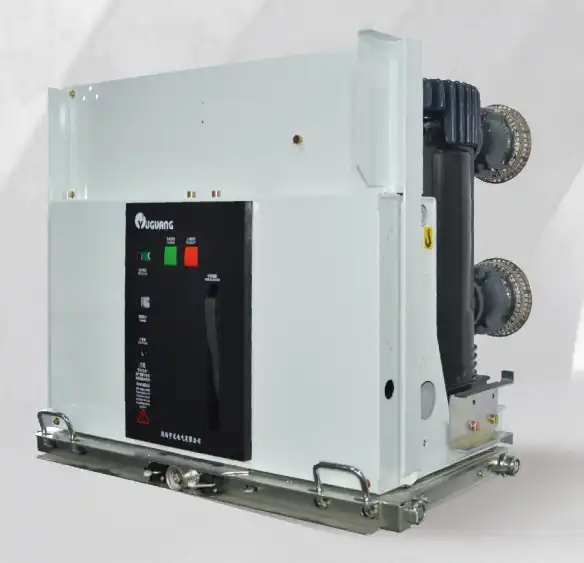

VS1-12KV/4000-40 Handcart Indoor Vacuum Circuit Breaker

VS1-12KV/4000-40  Handcart Indoor Vacuum  Circuit Breaker

The VS1-12 withdrawable indoor high-voltage vacuum circuit breaker (also known as model ZN63A-12) is a three-phase, 50 Hz, 12 kV indoor switchgear primarily used as a control and protection unit for electrical facilities in industrial and mining enterprises, power plants, and substations.

This product is particularly suitable for applications requiring frequent operation or where short-circuit currents may need to be interrupted multiple times, such as distribution automation systems and industrial equipment with frequent start-stop cycles. It features an integrated design combining the operating mechanism with the circuit breaker body, allowing it to be used either with a draw-out unit or as a fixed-mount unit, offering high versatility.

Structure and Key Features
1. Draw-out Design
The circuit breaker is mounted on a dedicated draw-out mechanism, allowing it to be easily slid into medium-voltage switchgear such as the KYN28A-12 or pulled out of the cabinet for maintenance. This design ensures interchangeability and facilitates maintenance, making it a standard configuration for modern switchgear.
2. Operating Mechanism
A horizontally arranged spring-storage operating mechanism is employed, featuring both manual and electric energization modes and supporting automatic reclosing operations. The mechanism is integrated with the circuit breaker body in a front-to-back configuration, reducing intermediate transmission links and enhancing reliability.
3. Vacuum Arc Extinguisher
Equipped with a center-sealed ceramic or glass vacuum arc extinguisher, utilizing copper-chromium contact materials and a cup-shaped longitudinal magnetic field contact structure. This design ensures uniform arc distribution across the contact surfaces, resulting in strong arc-quenching capability, minimal electrical wear, and a long electrical life.
4. Insulation Methods
Insulated Cylinder Type: The vacuum arc extinguishing chamber is installed within an insulating cylinder cast using the epoxy resin APG process, offering strong creepage resistance and suitability for general environments.
Solid-Sealed Pole Type: Utilizing integral solid-sealed pole technology, the arc extinguishing chamber and upper/lower bushing terminals are completely encapsulated in epoxy resin, achieving compact size, high reliability, and maintenance-free operation, making it suitable for harsh environments.

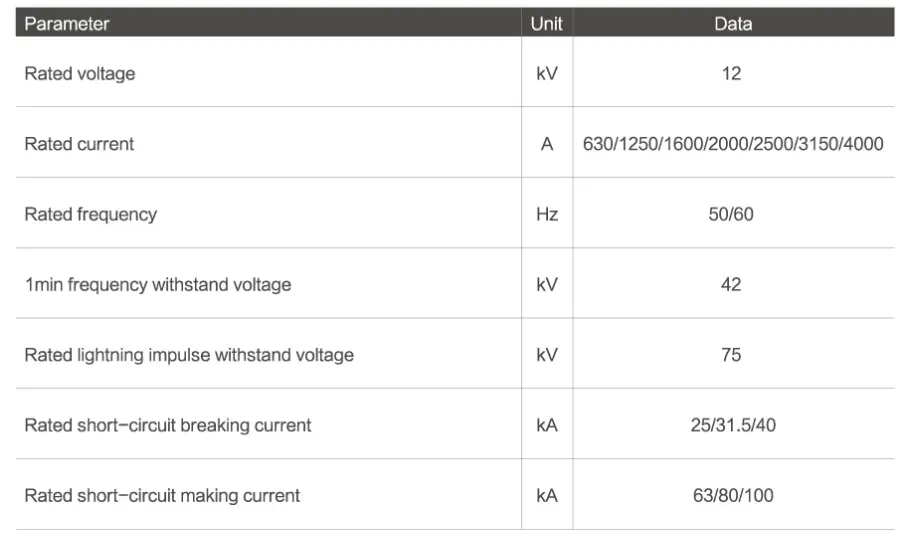

Key Technical Specifications

OEM/ODM Services:

At Shaanxi Yuguang Electric Co., Ltd., we understand the importance of customization. That's why we offer comprehensive OEM and ODM services to meet your specific requirements. Whether you need private labeling or custom product development, our experienced team is here to assist you every step of the way.

Certificates:

We take pride in our commitment to quality and safety. Our products are certified to meet the highest industry standards, including:

3C Certification

ISO 9001 Certification

21 Utility Model Patents and Design Patents

Why Choose Us:

State-of-the-art Manufacturing Equipment

Extensive Testing Facilities

Comprehensive Quality Assurance Processes

ISO 9001 Certified Quality Management System

One-year Warranty on All Products

Large Production Capacity

FAQ:

Q: What is the warranty period for your products? A: We offer a one-year warranty on all our products.

Q: Can you customize products according to our specifications? A: Yes, we provide OEM and ODM services to meet your specific requirements.

Q: Are your products compliant with international standards? A: Yes, our products meet all relevant international standards.

Q: What is the lead time for orders? A: The lead time depends on the quantity and customization requirements. Please contact us for more information.

Q: Do you provide technical support? A: Yes, we offer comprehensive technical support to our customers.

Packaging:

Wooden Box Packaging

Carton Packaging

Foam-filled Packaging

Waterproof and Moisture-proof Packaging

Customized Packaging

International Standard Packaging

Logistics:

Sea Freight

Air Freight

Land Transportation

Multimodal Transport

Express Delivery Services

Contact Us:

Ready to take your electrical projects to the next level? Contact us today at ygvcb@hotmail.com to discuss your requirements and explore partnership opportunities with Shaanxi Yuguang Electric Co., Ltd. Let's create a brighter future together.
